Removal And Installation

  1. Release the residual pressure in the fuel line.

    (Refer the Fuel Delivery system - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

  2. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  3. Remove the rear seat cushion.

    (Refer to Body - "REAR SEAT ASSEMBLY ")

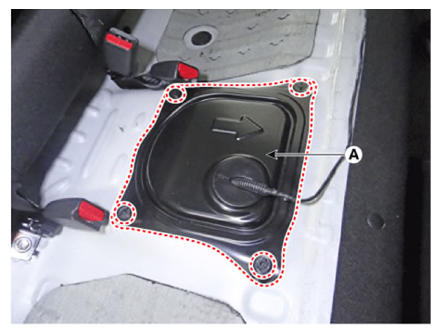

  4. Remove the fuel pump service cover (A).
    G13303909Courtesy of KIA MOTORS AMERICA, INC.

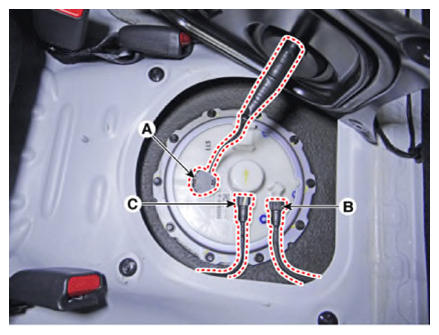

  5. Disconnect the fuel pump connector (A).
  6. Disconnect the fuel feed quick-connector (B) and the vapor hose quick - connector (C).
    G13303910Courtesy of KIA MOTORS AMERICA, INC.

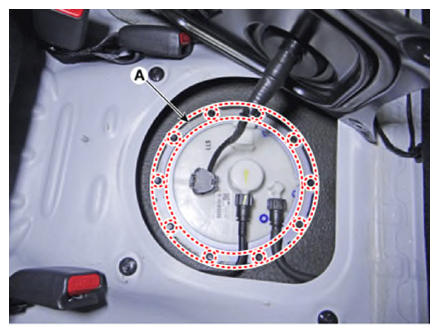

  7. Remove the plate cover (A) after removing the installation bolts and then remove the fuel pump from the fuel tank
    G13303911Courtesy of KIA MOTORS AMERICA, INC.

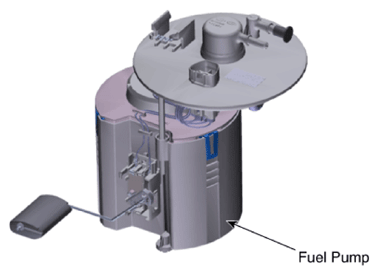

  8. Remove the fuel pump.
    G13303912Courtesy of KIA MOTORS AMERICA, INC.
  9. Install in the reverse order of removal.
