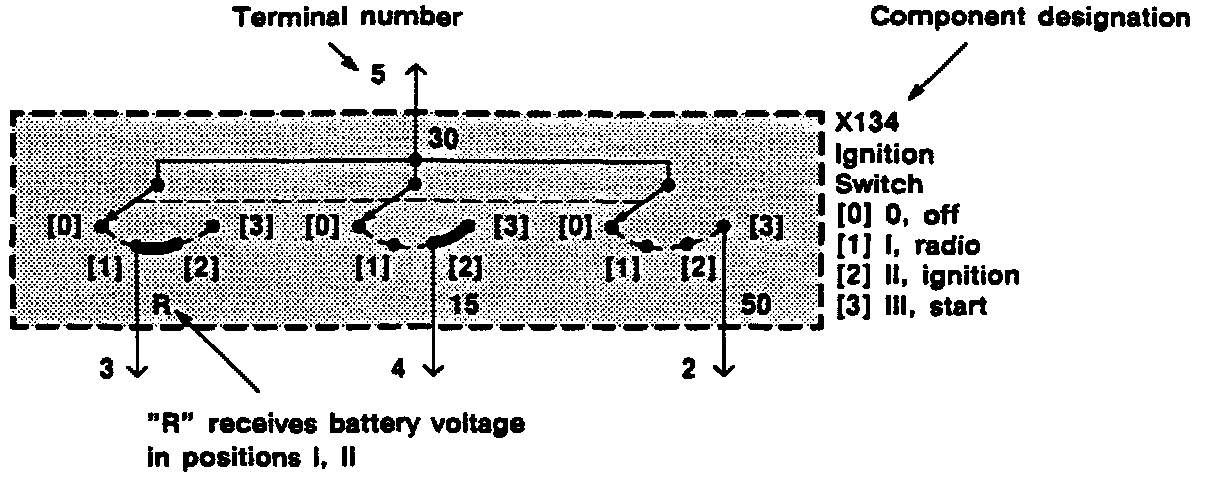

Terminal Number and Designation

Symbols:

Terminal Number - Designation
50 - Battery voltage: Ignition Switch in position III
30 - Battery voltage: supplied constantly
15 - Battery voltage: Ignition Switch in position II or III
R - Battery voltage: Ignition Switch in positions I, II
31 - Ground
X - Switched battery voltage through the ignition load relay; ignition switch is in position II or III
49 - Flasher unit input
49a - Flasher unit output
56a - High beam
56b - Low beam
85 - End of relay coil
86 - Start of relay coil
87 - Relay contact
87a - Relay contact
