No-Load Test

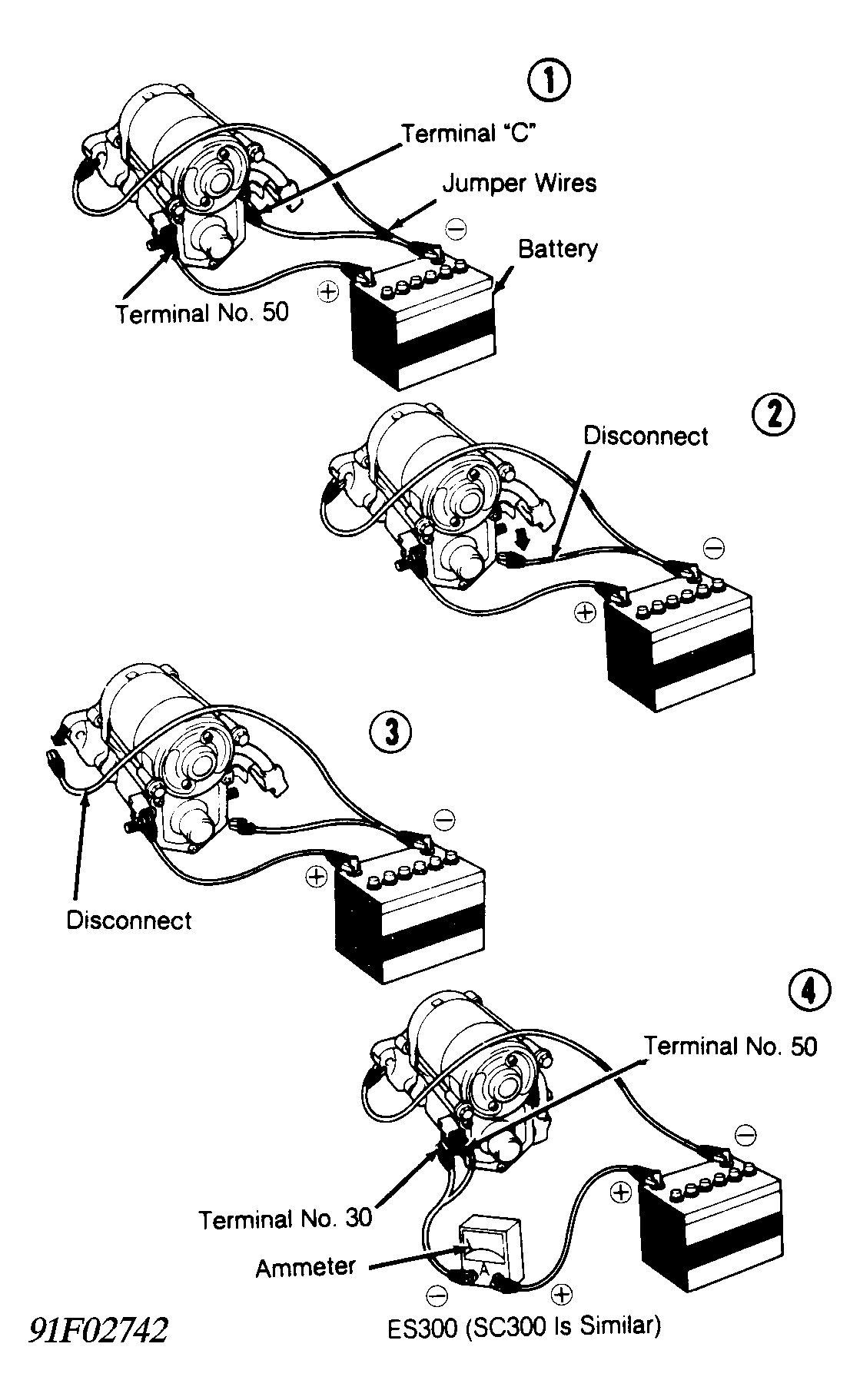

Using jumper wires, connect starter terminal "C", terminal No. 30 and terminal No. 50 to battery. See Figure. Under no-load test, starter armature should rotate steadily.
NO-LOAD TEST SPECIFICATIONS
| Application | Amps @ RPM | Volts |
|---|---|---|
| 1.0 Kilowatt Rating | 90 @ 3000 | 11.5 |
| 1.4 Kilowatt Rating | 90 @ 3500 | 11.5 |
