Repair and Diagnosis: Electrical: Starter: Overhaul

NOTE: Overhaul procedures are not available from manufacturer. See Fig 1 and STARTER OVERHAUL SPECIFICATIONS  table.

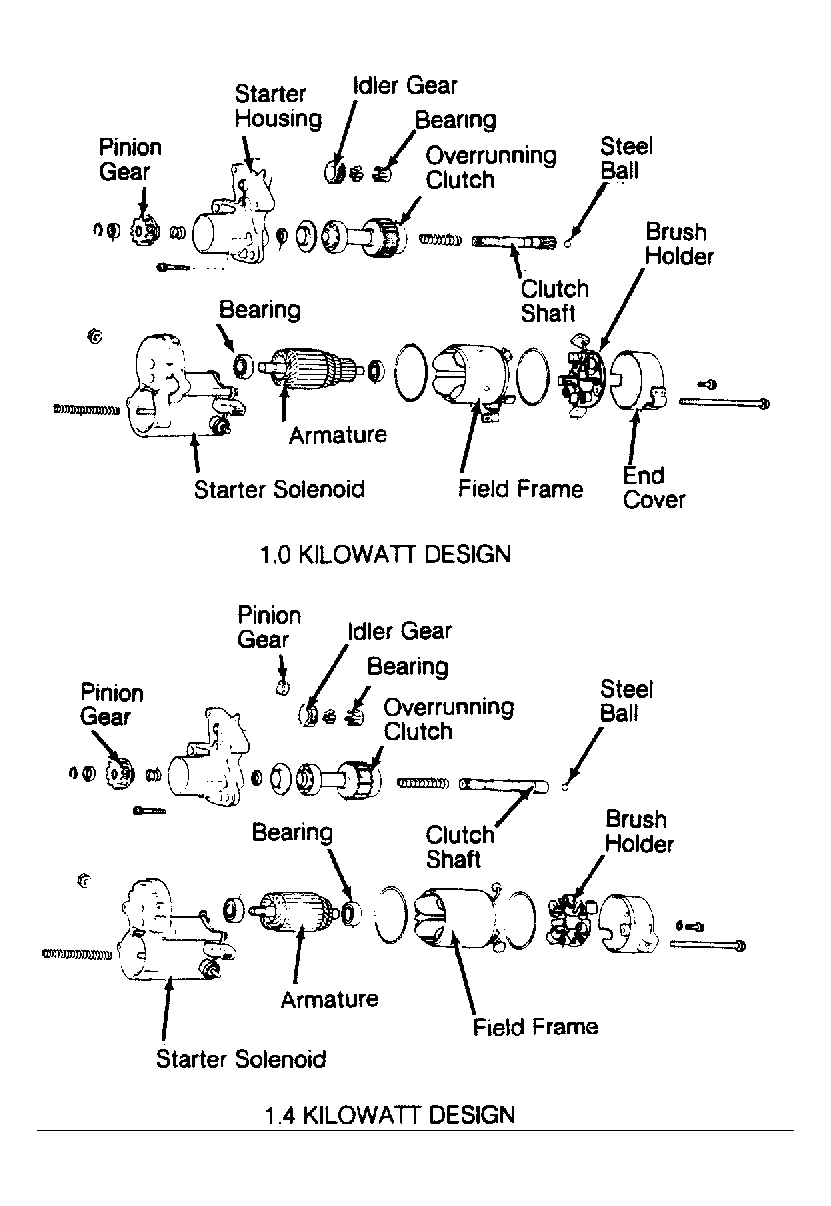

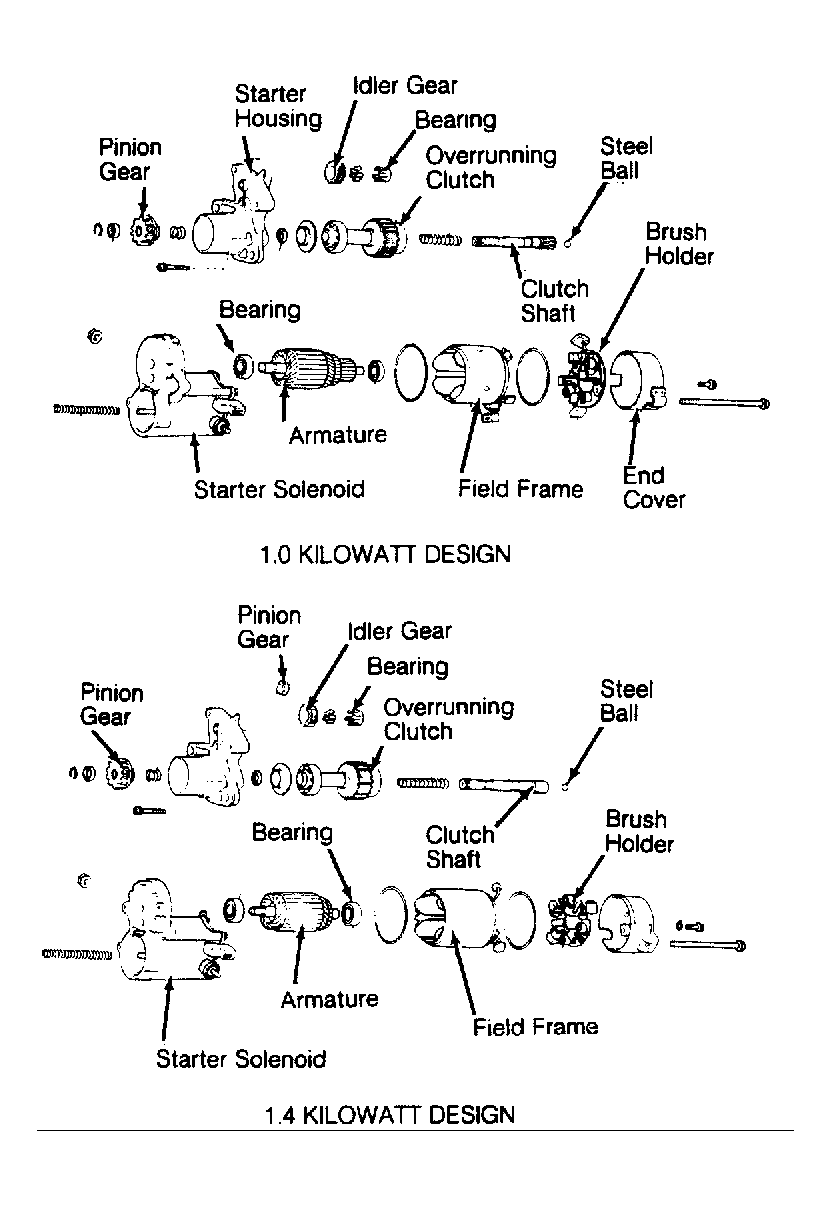

Fig 1: Exploded View of Reduction Gear Starters

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

STARTER OVERHAUL SPECIFICATIONS

Application		Specification
Brush Length
1.0 Kilowatt Rating		.335" (8.5 mm)
1.4 Kilowatt Rating		.394" (10.0 mm)
Brush Spring Tension		3.9-5.3 Lbs. (1.8-2.4 Kg)
Commutator Diameter (Minimum)		1.142" (29.0 mm)
Commutator Run-Out (Maximum)		.05" (.002 mm)
