Steering Column: Disassembly

Using a centering punch, mark the center of the tapered head bolts. Using a 3-4 mm drill, drill into the tapered head bolt. See Fig 1. Using a screw extractor, remove the tapered head bolt. See Fig 2. Remove the two bolts and separate the upper bracket and column tube.

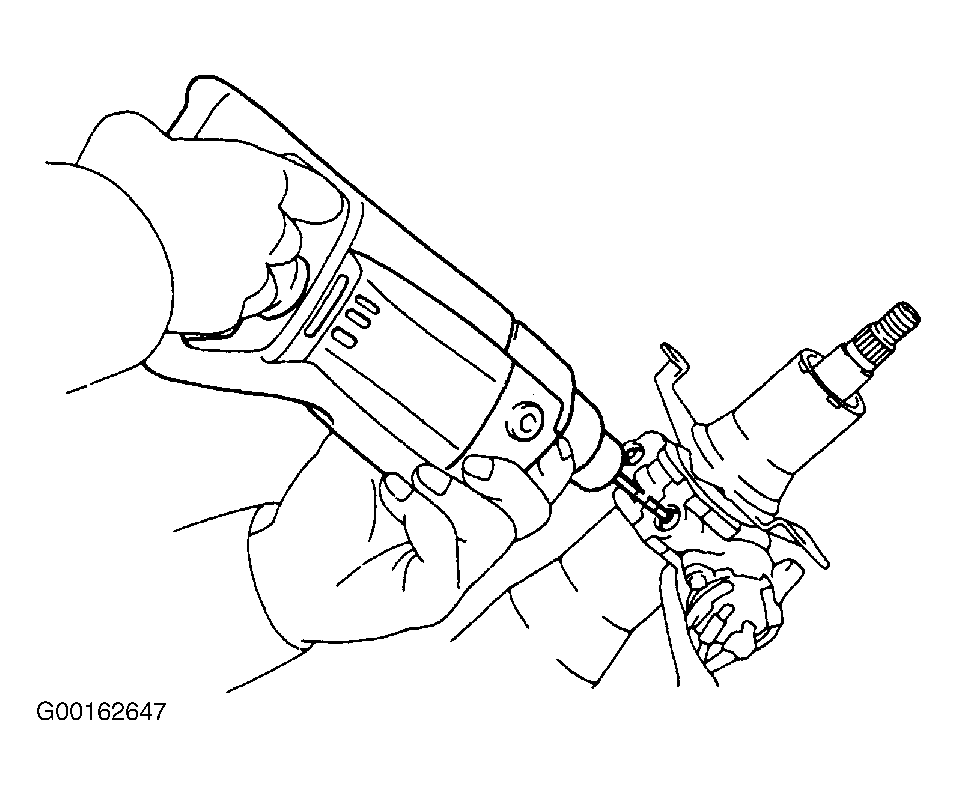

Fig 1: Drilling Tapered Head Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

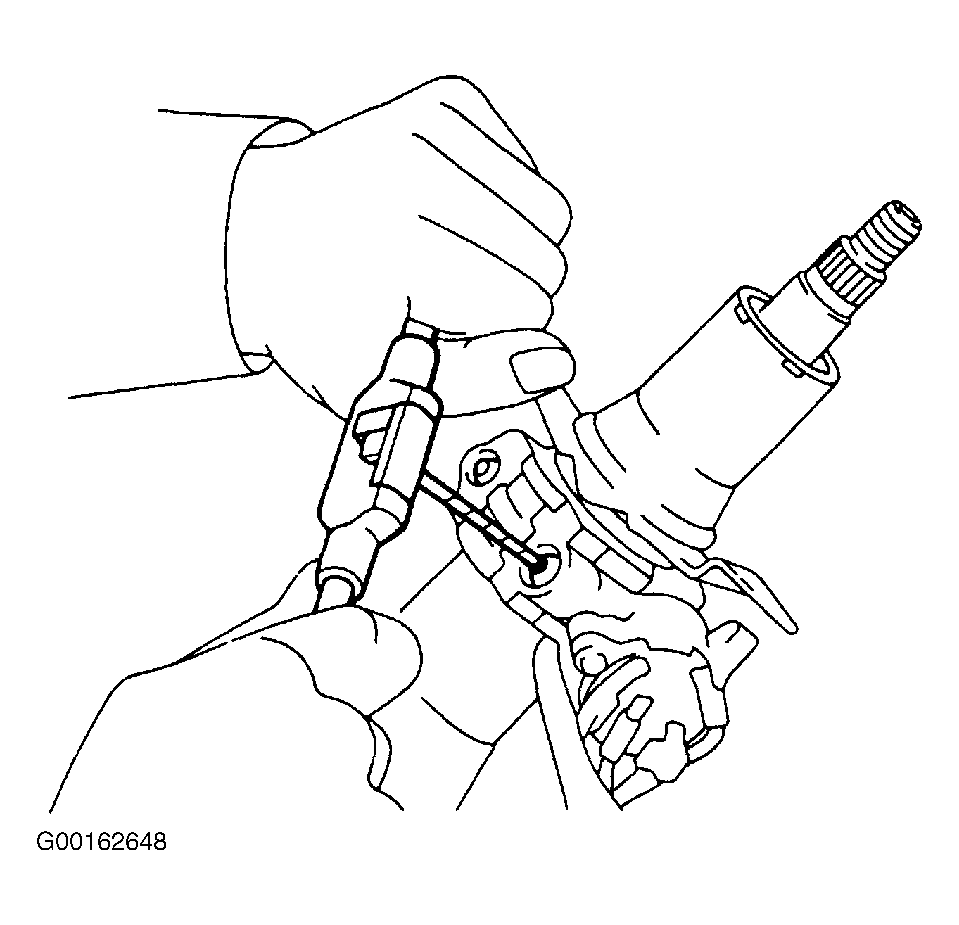

Fig 2: Extracting Tapper Head Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Remove the two thrust stopper set bolts. See Fig 3. Using snap ring pliers, remove the snap ring, see Fig 4. Remove the main shaft. Using snap ring pliers, remove the snap ring from the main shaft. See Fig 5.

Fig 3: Removing Thrust Stopper Set Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Removing Snap Ring
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Using a screwdriver, remove the snap ring and trust stopper, see Fig 6. Remove the O-ring from the thrust stopper.

Fig 5: Removing Snap Ring From Main Shaft

Fig 6: Removing Thrust Stopper
