Repair and Diagnosis: Transmission: Clutches: Description

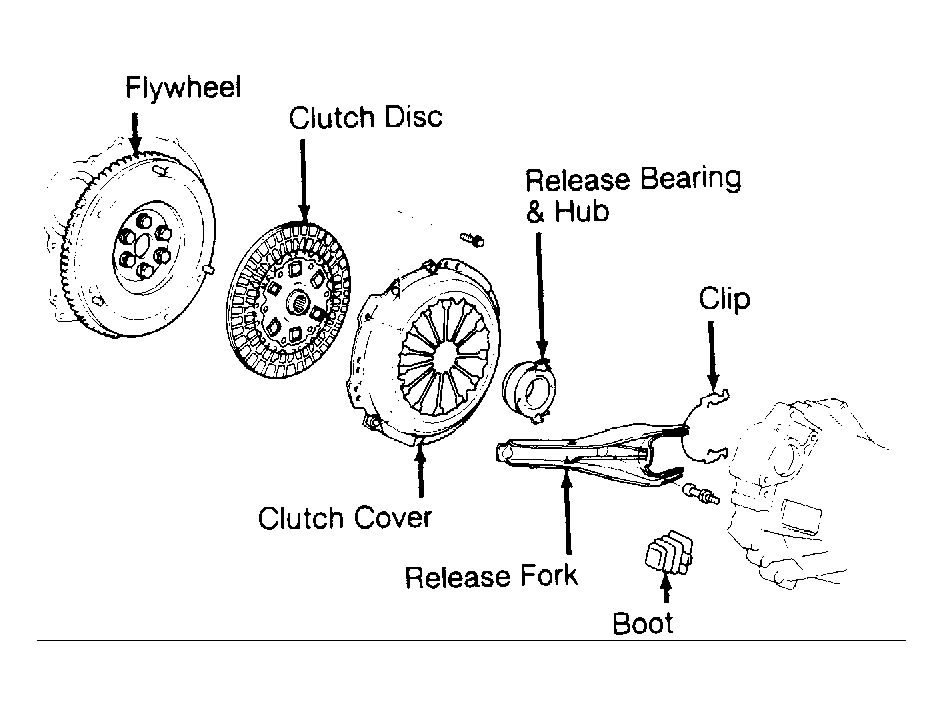

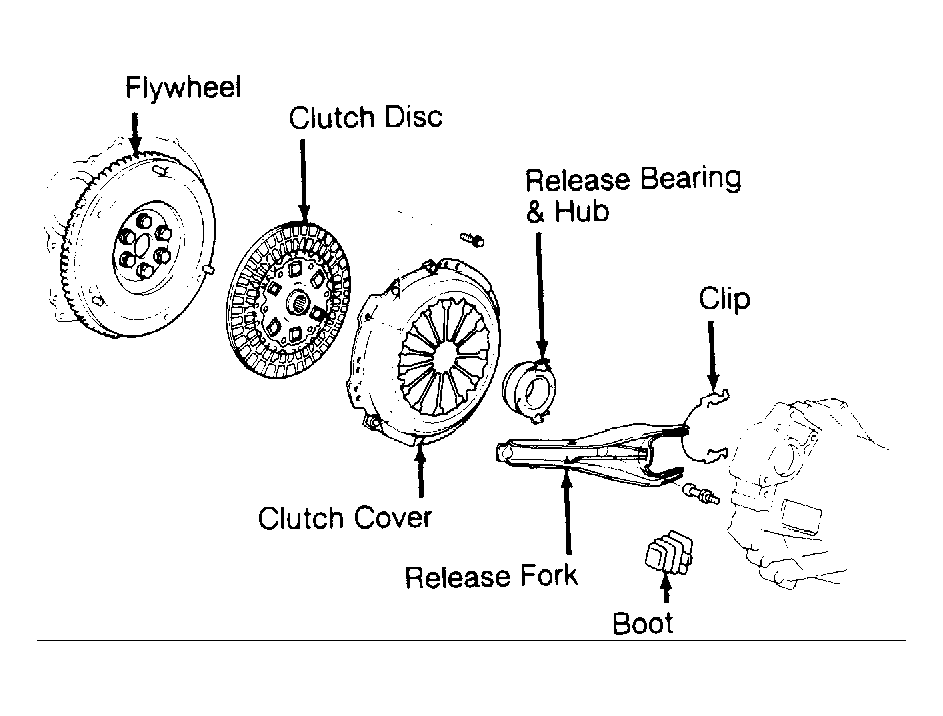

Clutch is disc type using a diaphragm spring to engage the pressure plate. A hydraulically operated release system, consisting of a master cylinder and a slave cylinder, operates a lever connected to a release bearing. Control is through the clutch pedal. See Fig 1.
