Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| Anti-Lock Brakes (ABS) Control Unit | Under right rear package tray. | |
| Electronic Control Unit (ECU) | ||

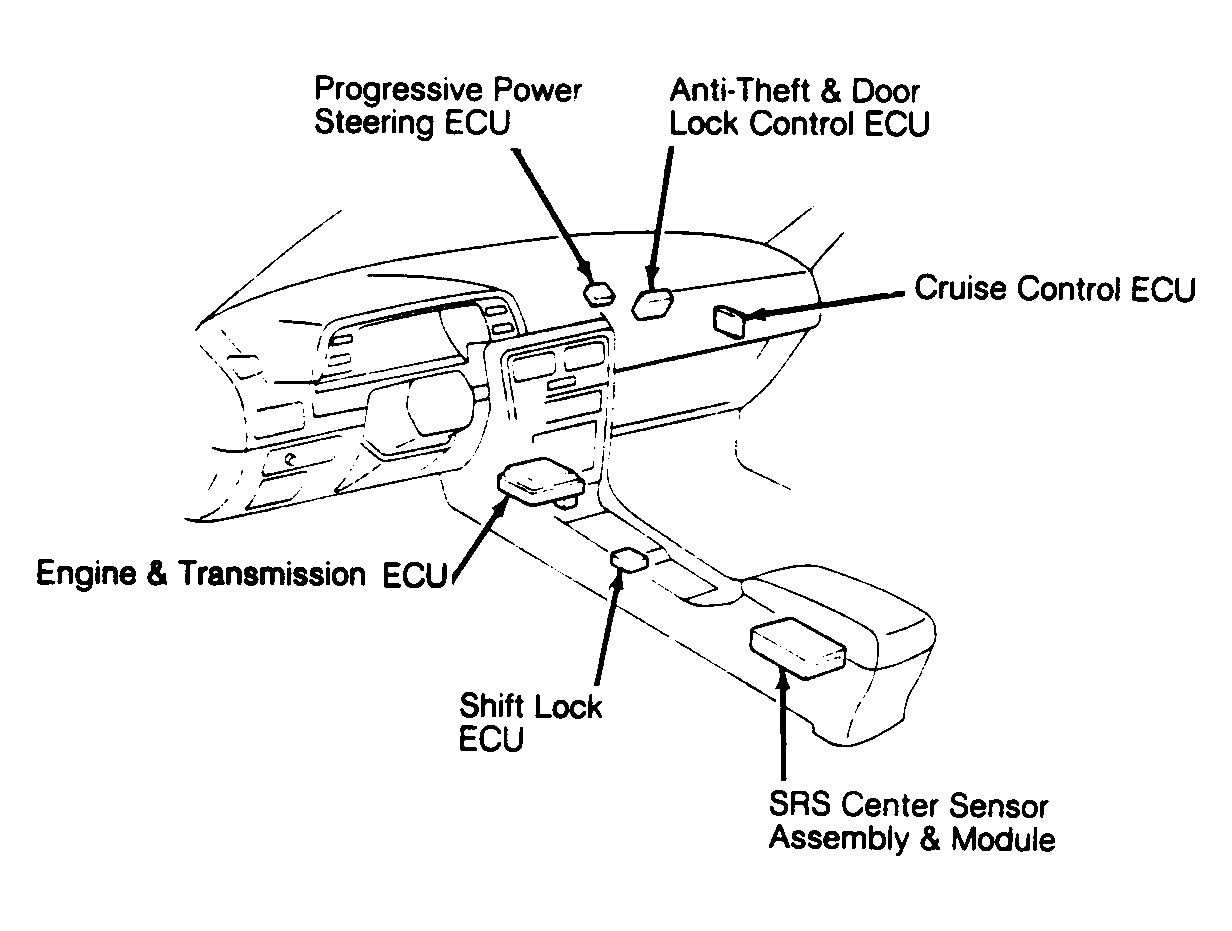

| Anti-Theft & Door Lock | Behind dash, right of center console. See Figure. | |

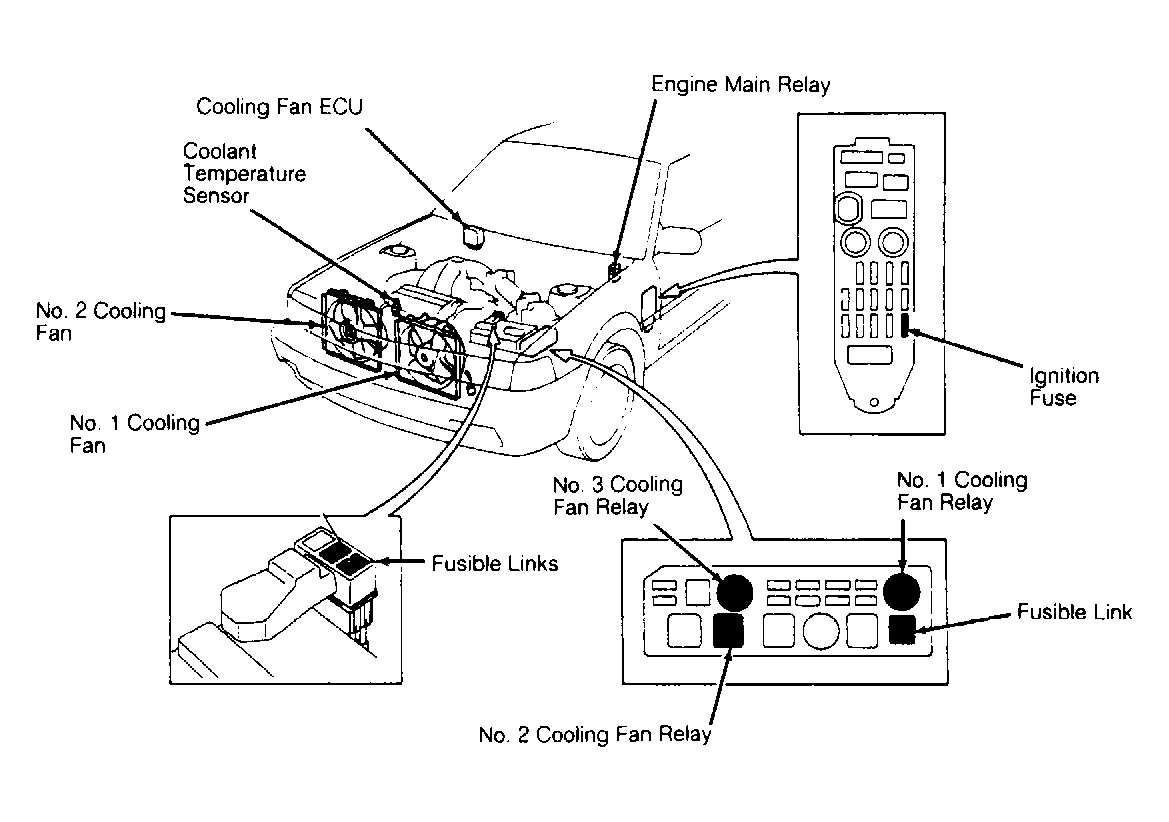

| Cooling Fan | On right firewall. See Figure. | |
| Cruise Control | Behind right side of dash. See Figure. | |

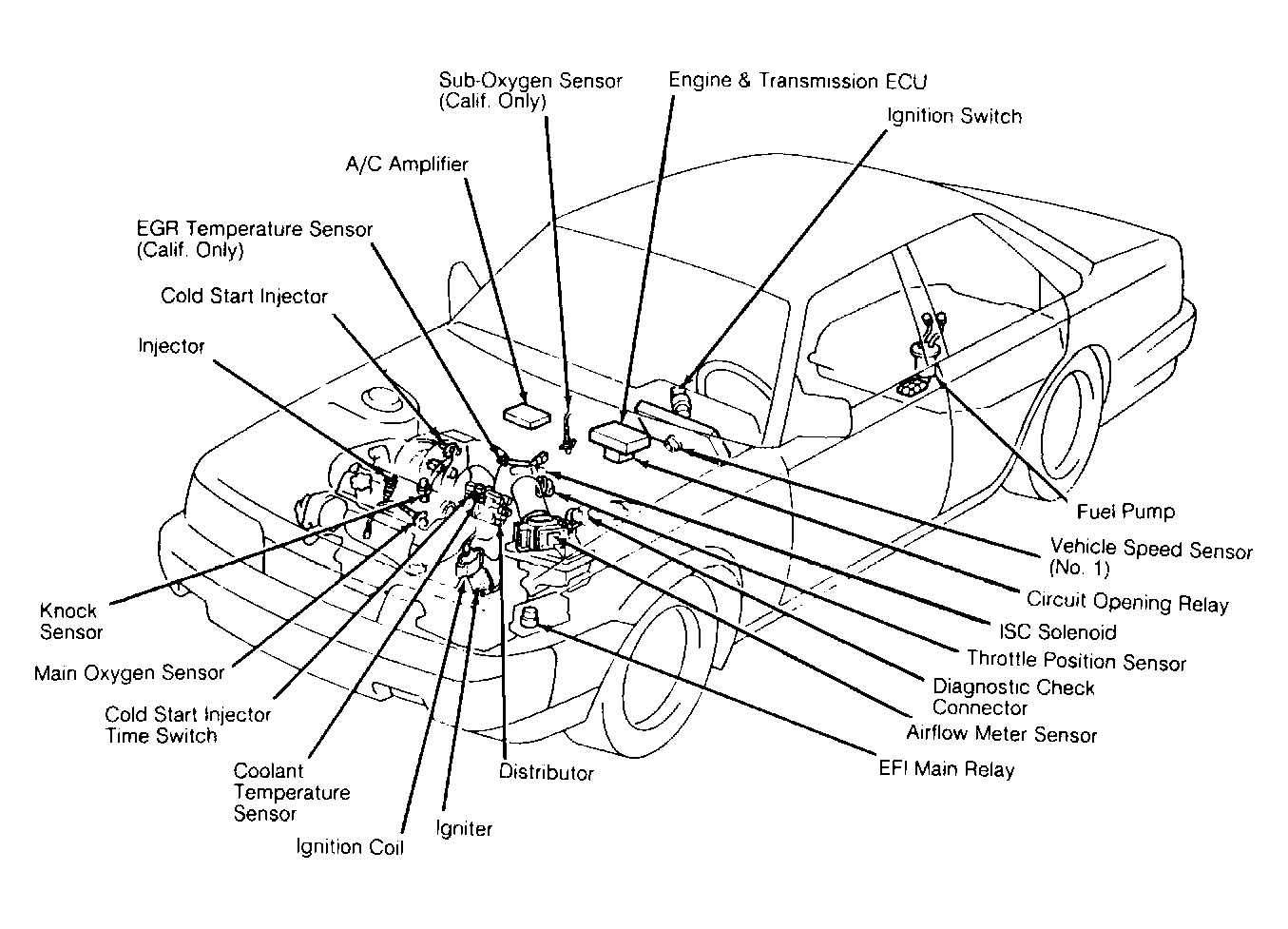

| Engine | Behind center of dash. See Figure & Figure . | |
| Progressive Power Steering | Behind center of dash. See Figure. | |
| Shift Lock (A/T) | Under console, behind shift lever. See Figure. | |
| Transmission | Behind center of dash. See Figure & Figure . | |

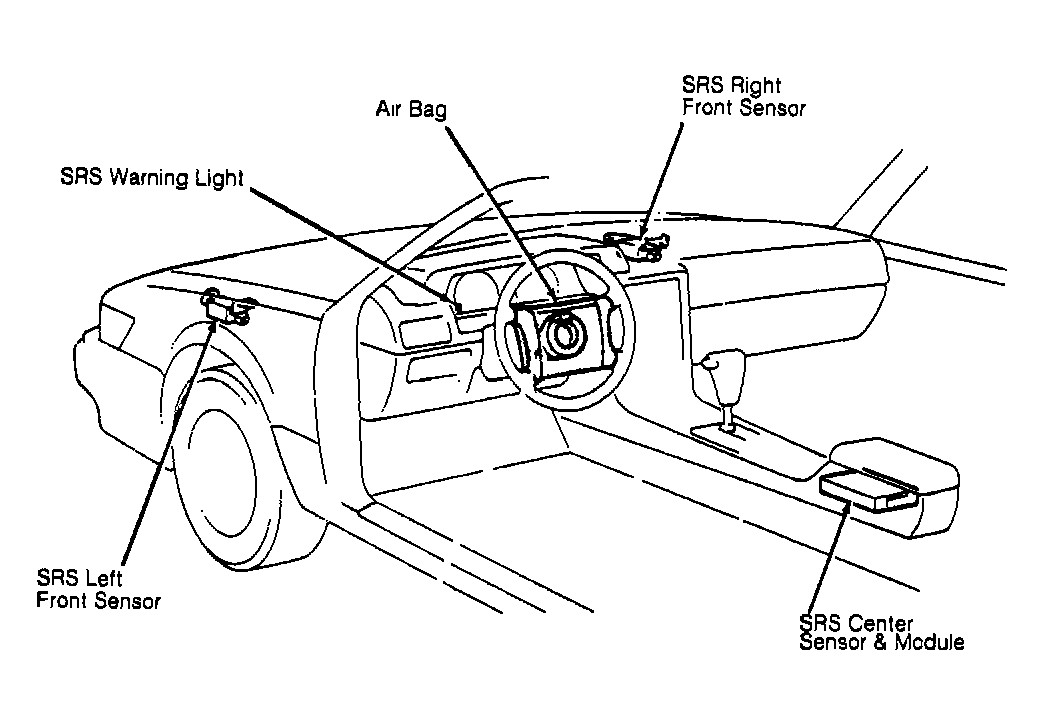

| SRS Module | Under center console, between front seats. See Figure & Figure . | |
