Air Flow Meter/Sensor: Service and Repair

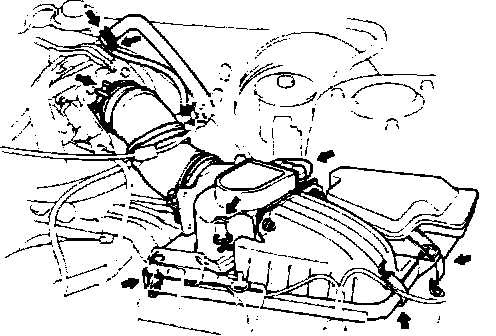

Air Cleaner And Hose:

- Disconnect negative battery terminal.
- Remove air cleaner cover and air flow meter as a unit.

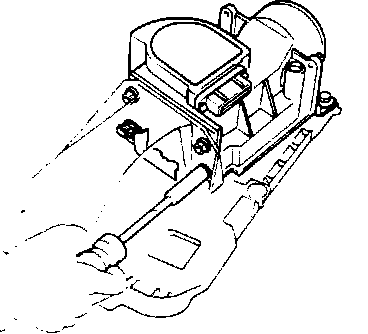

Air Flow Meter Removal:

- Pry off lock plate and remove mounting screws.
- Remove air flow meter.
- Reverse procedure to install.
