A/T Technical Data

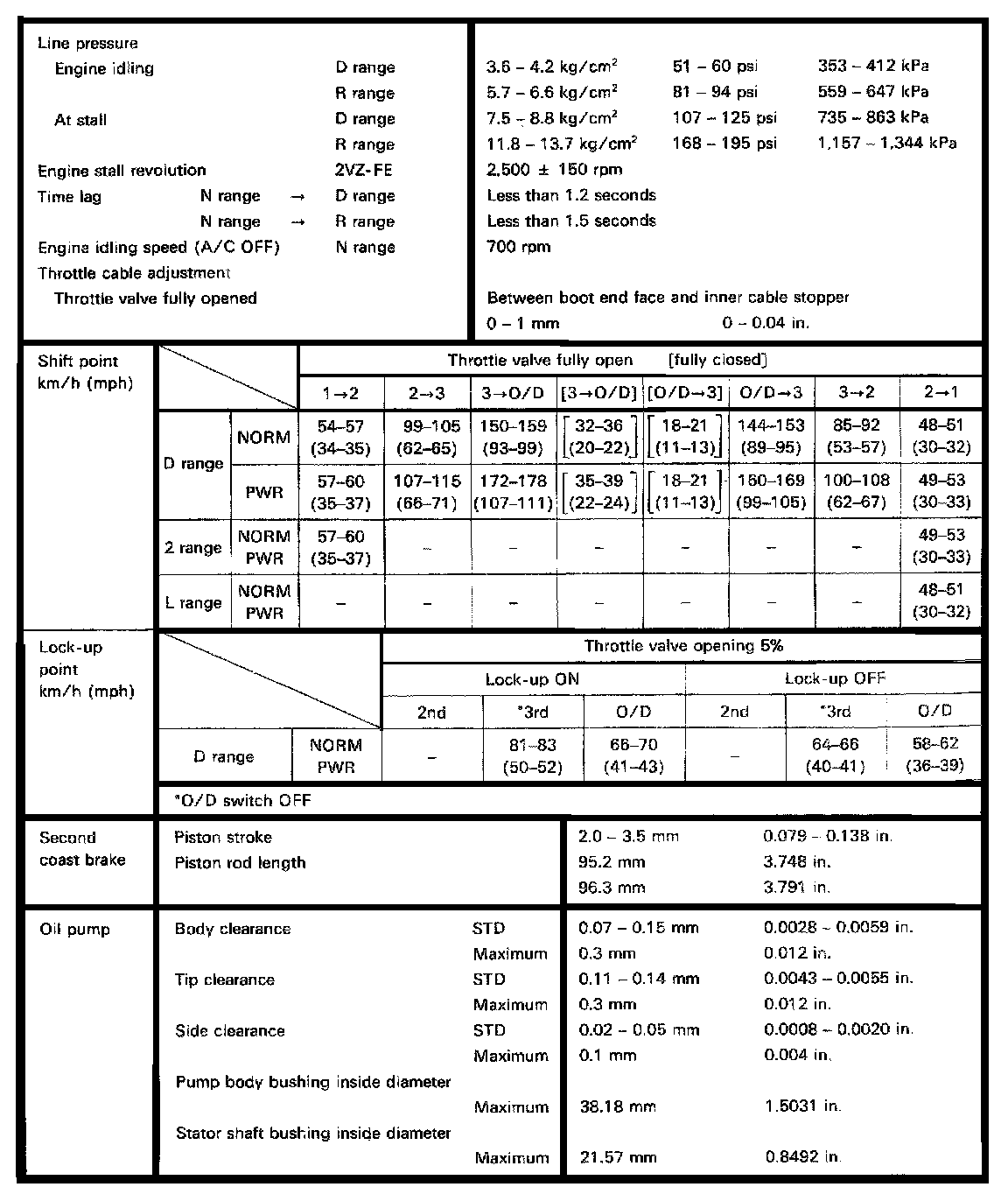

A540E 4-spd A/T, Line Pressure/Shift Point:

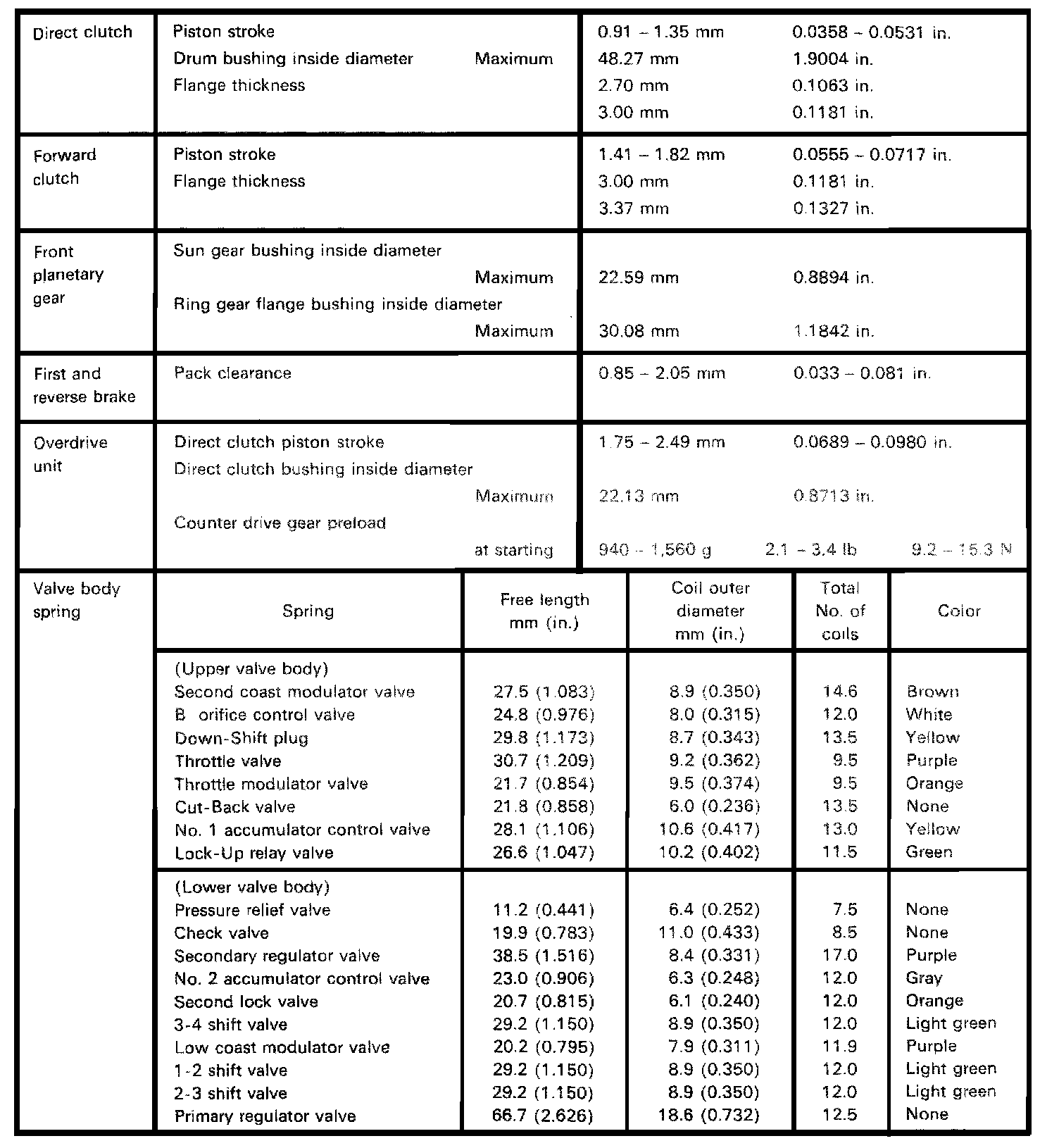

A540E 4-spd A/T, Clutch Clearances/Valve Body:

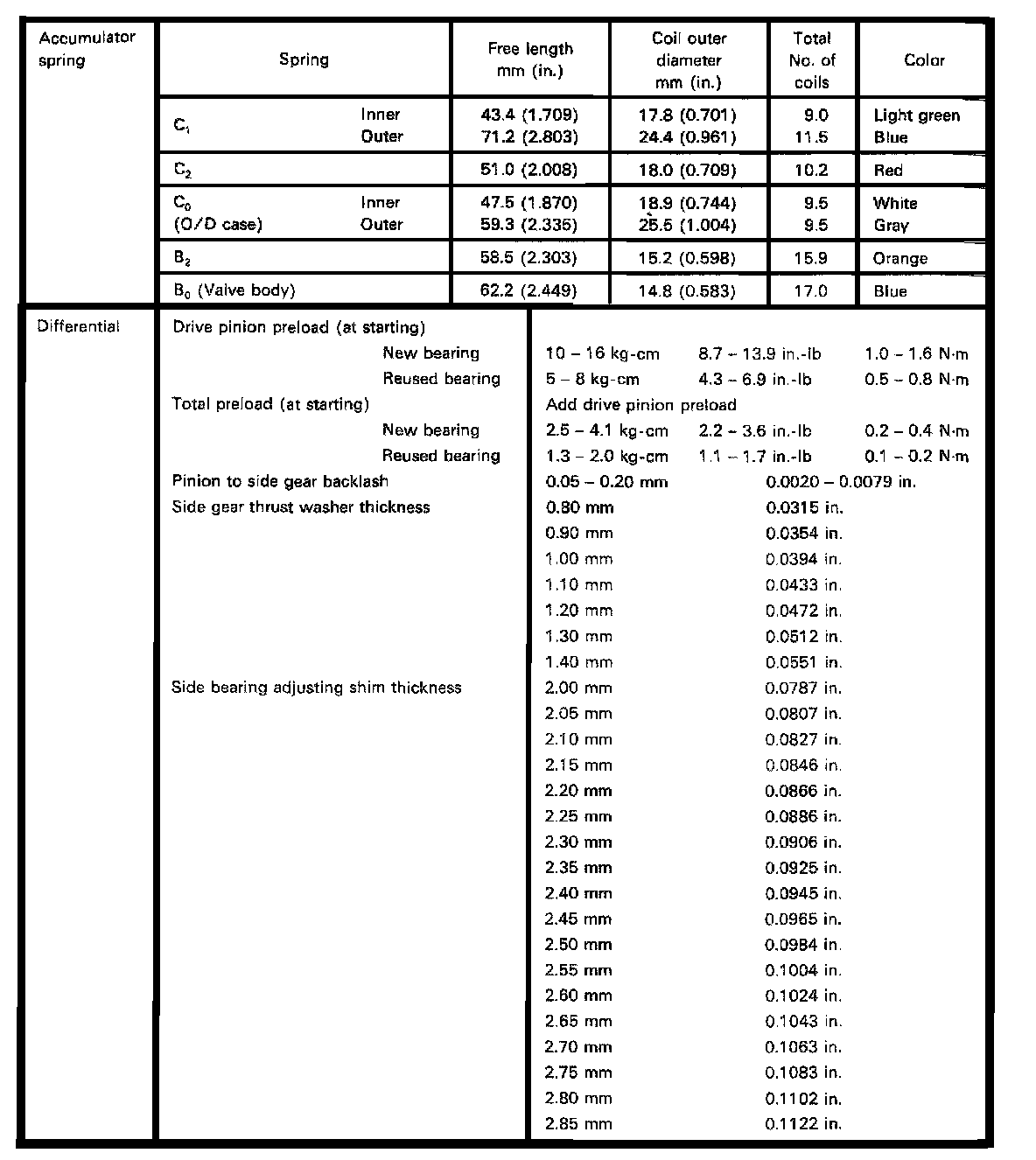

A540E 4-spd A/T, Accumulator Spring/ Differential:
