Coolant Temperature Sensor/Switch (For Computer): Locations

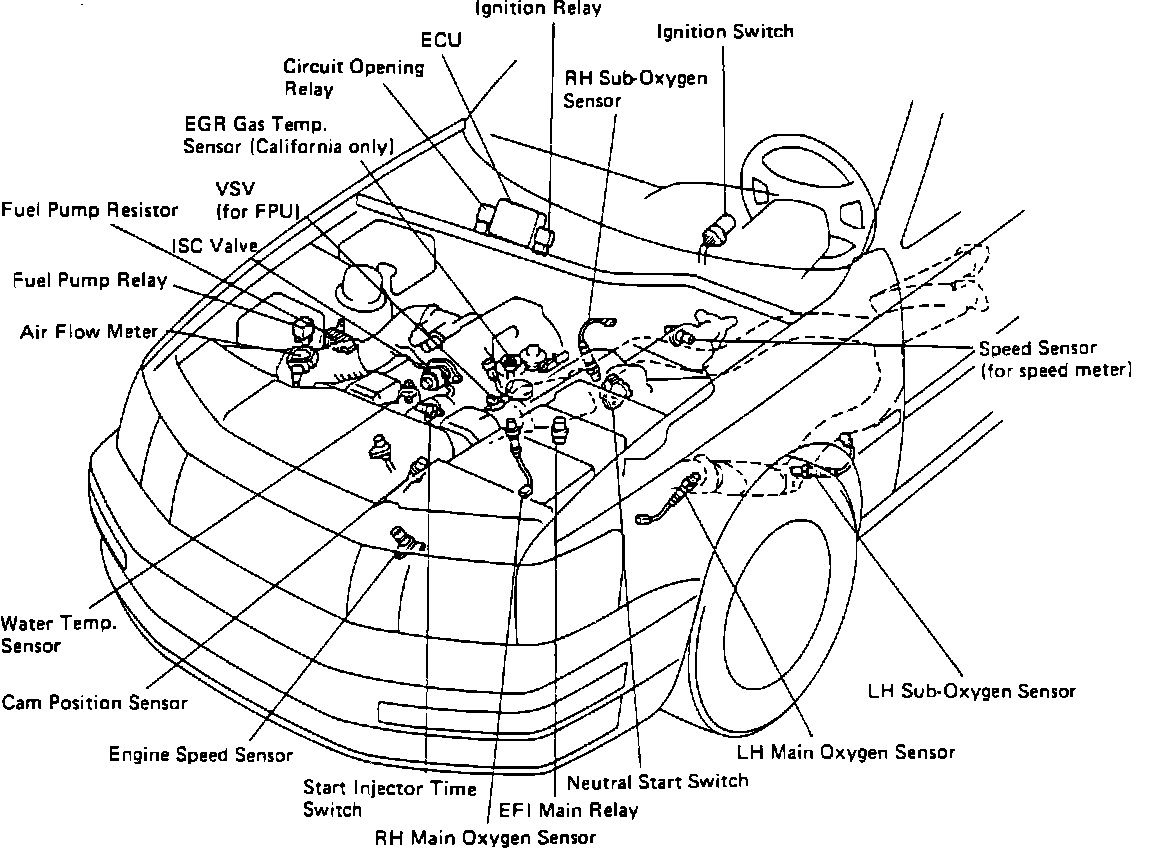

Engine Compartment Electrical Component Locations:




Top RH Front Side Of Engine
