TT Terminal Circuit

TT Terminal Circuit

CIRCUIT DESCRIPTION
Checks of ECU input and output signals related to the throttle position sensor, brakes, shift position and other circuits can be performed by measuring the voltages at terminal TT of the check connector.

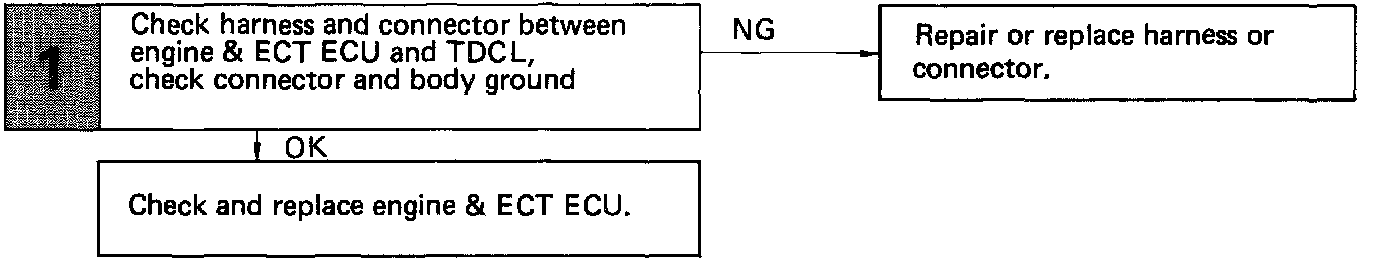

DIAGNOSTIC CHART





WIRING DIAGRAM

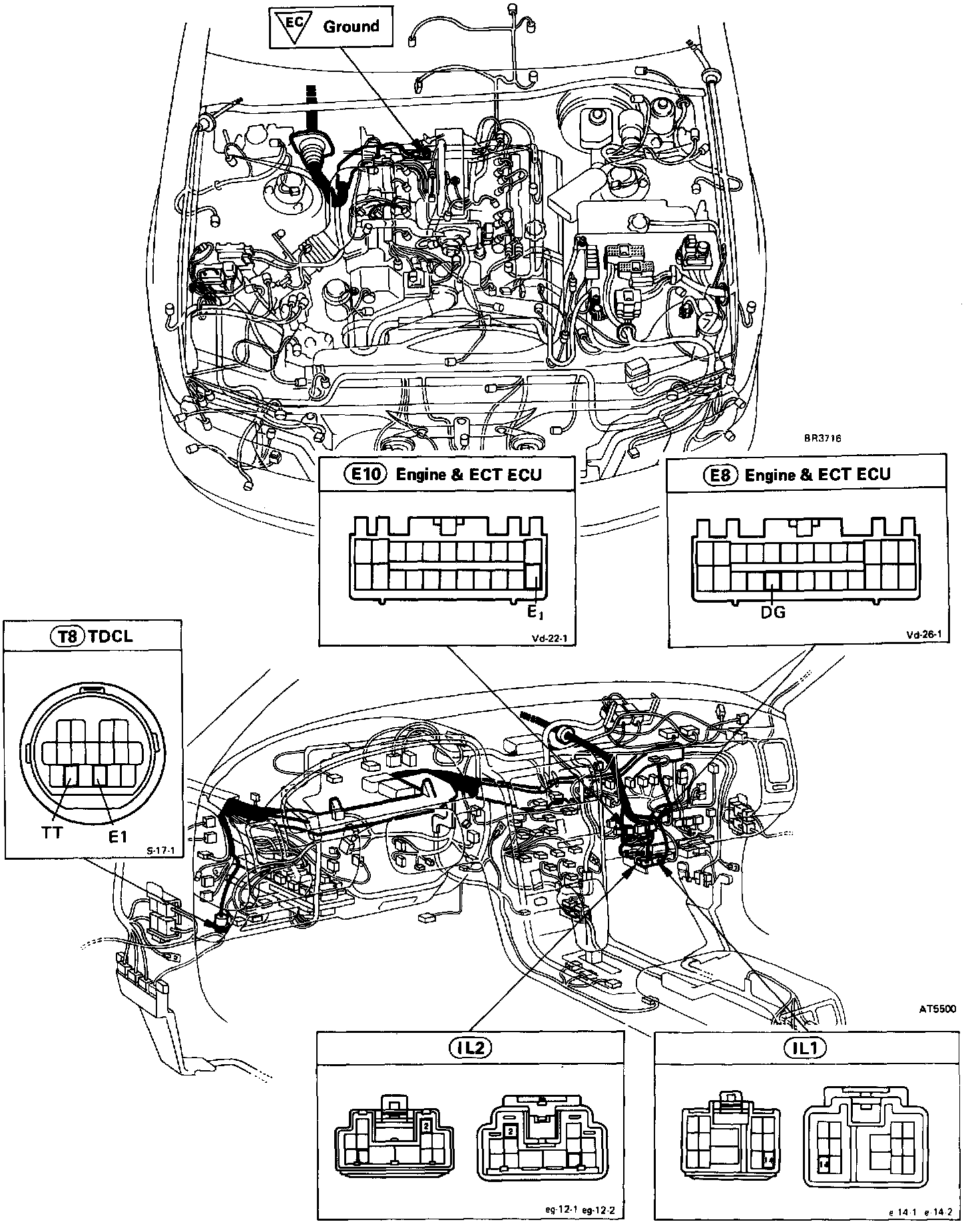

WIRING ROUTING
