System Specifications

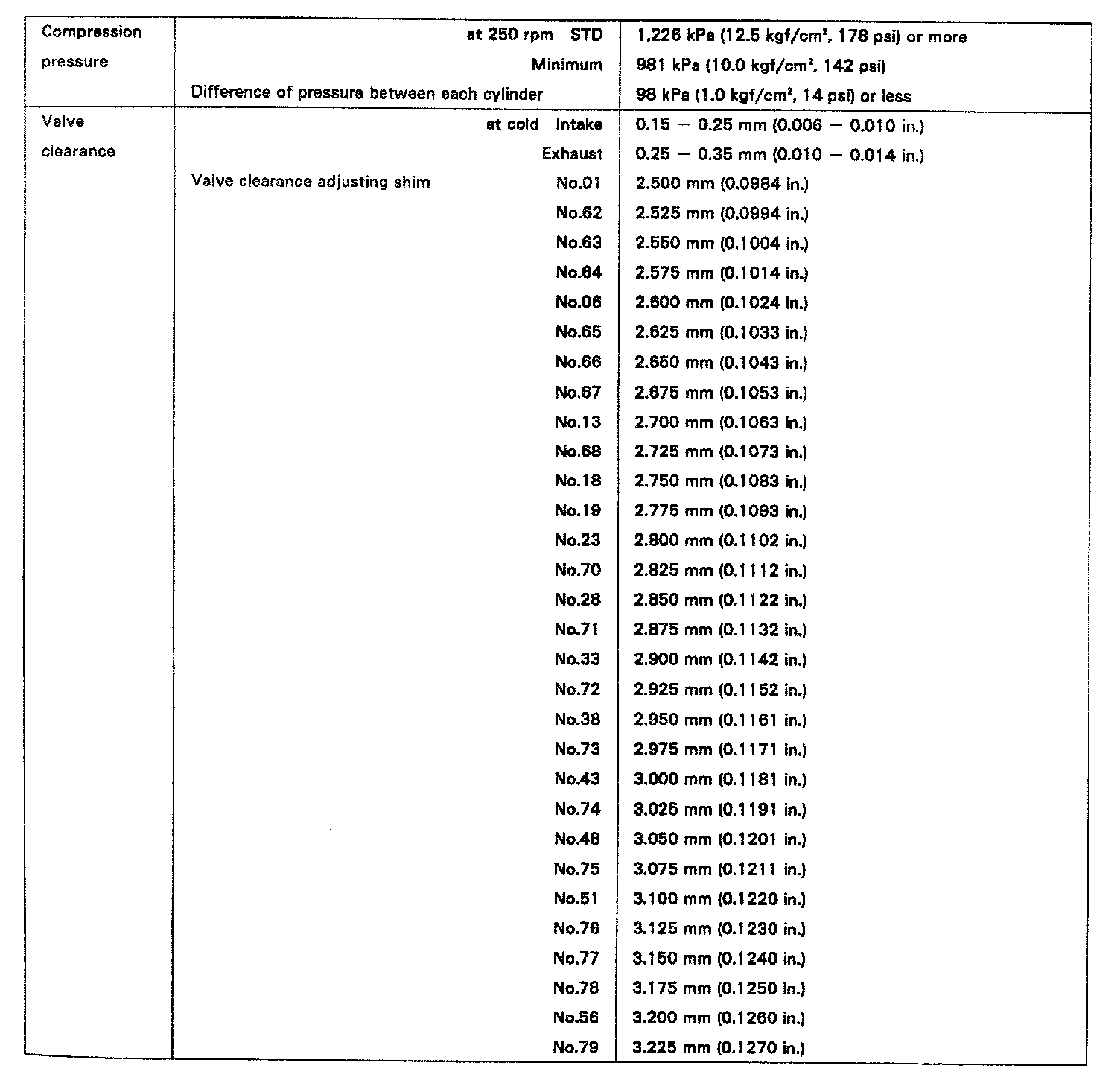

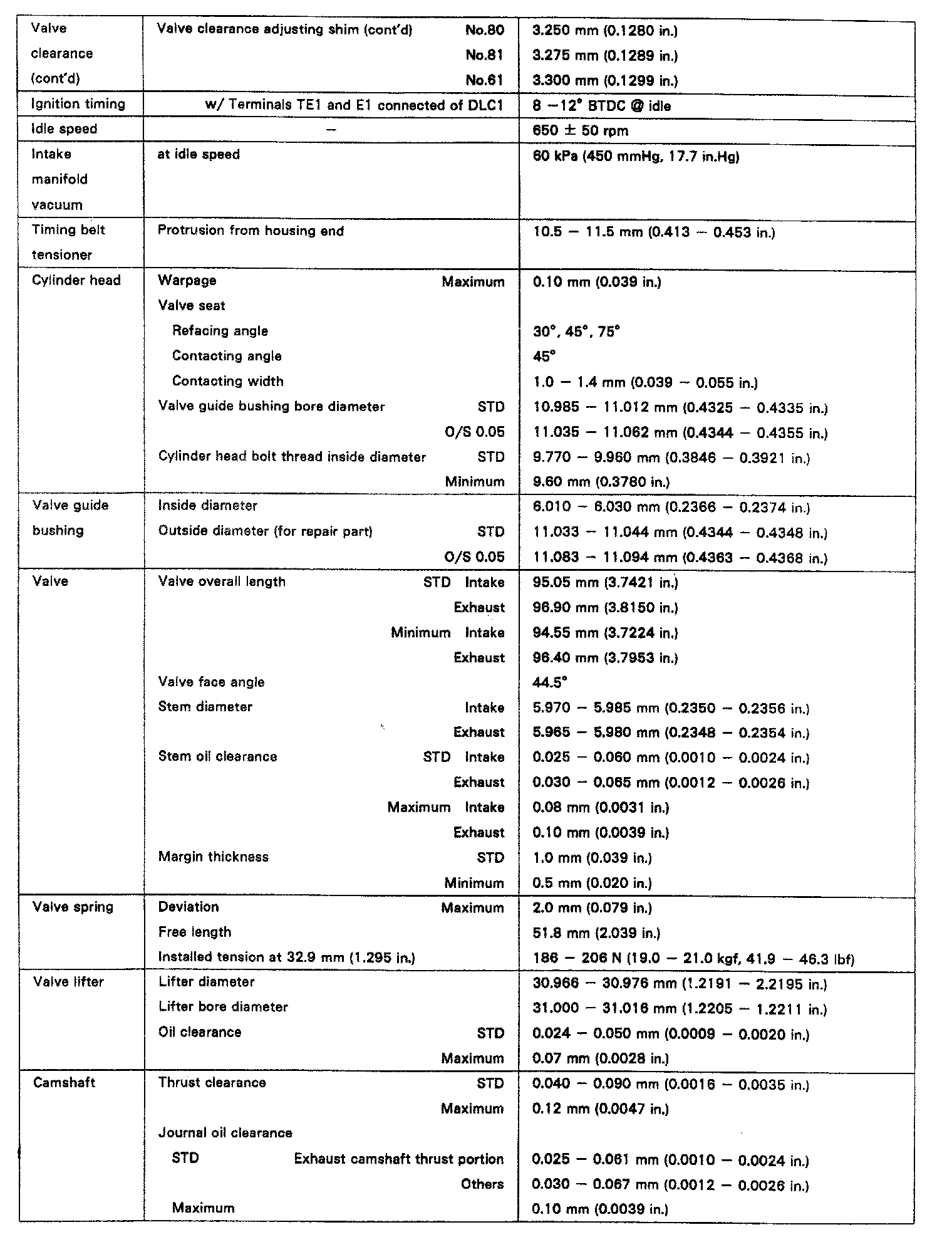

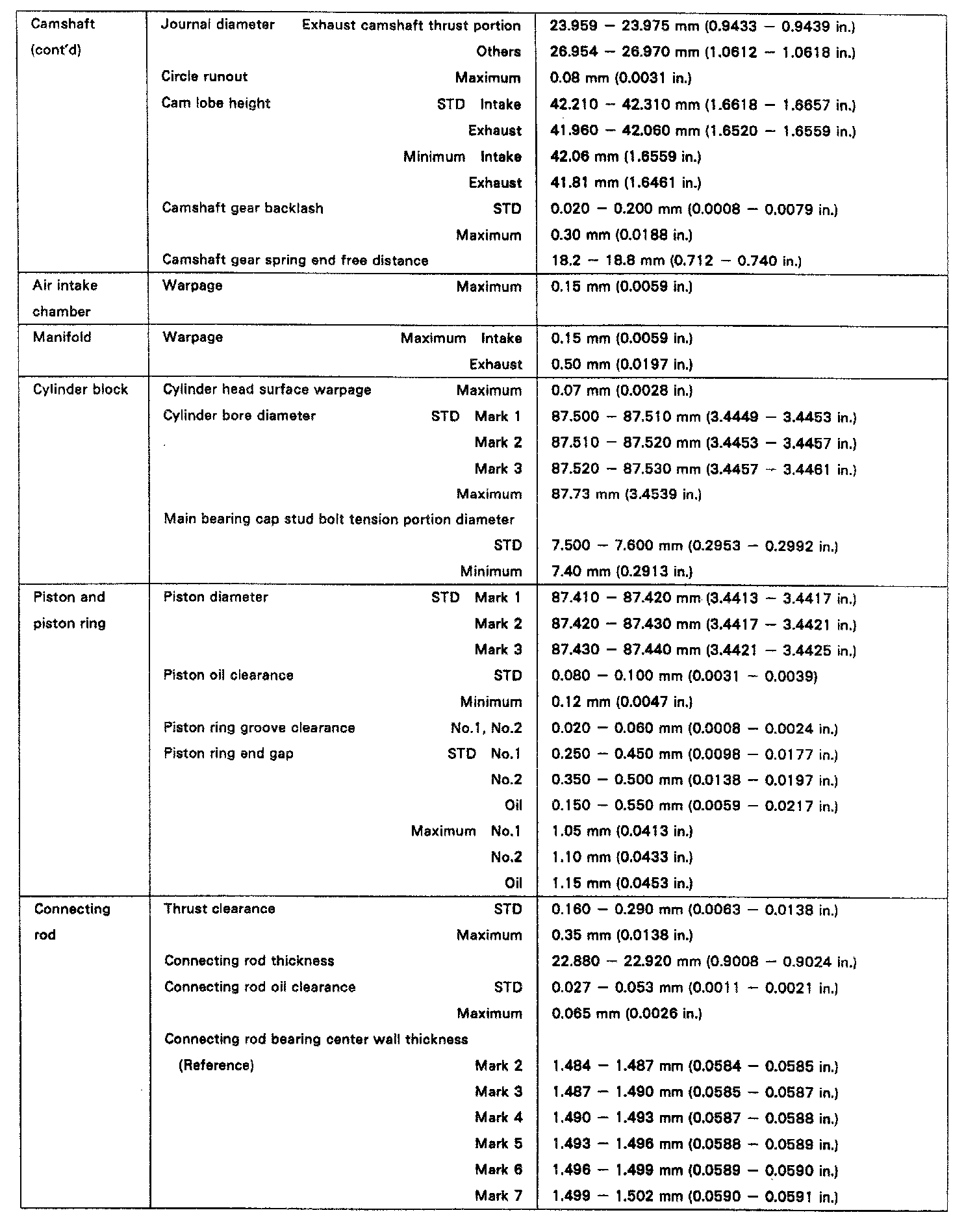

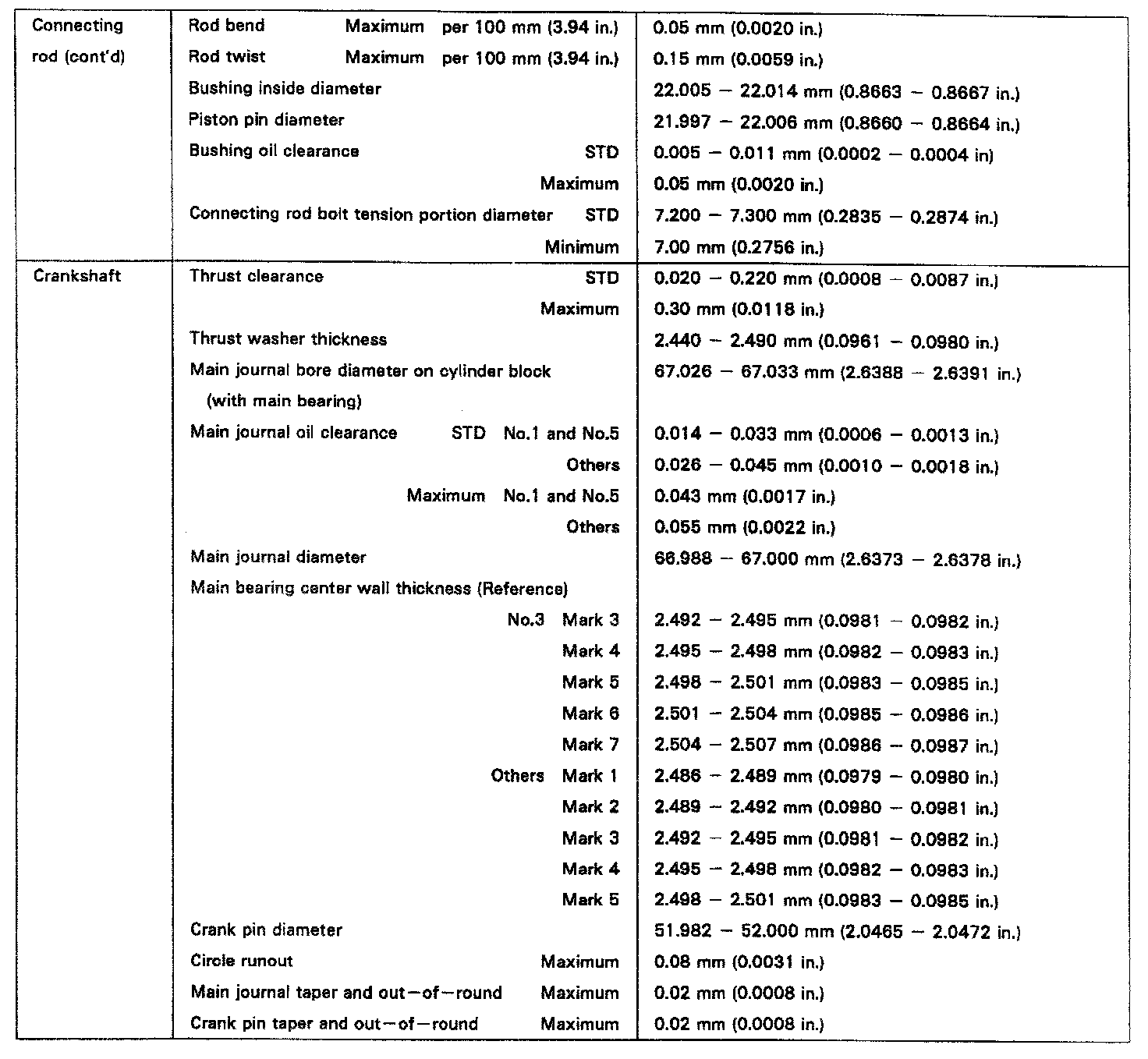

ENGINE SPECIFICATIONS

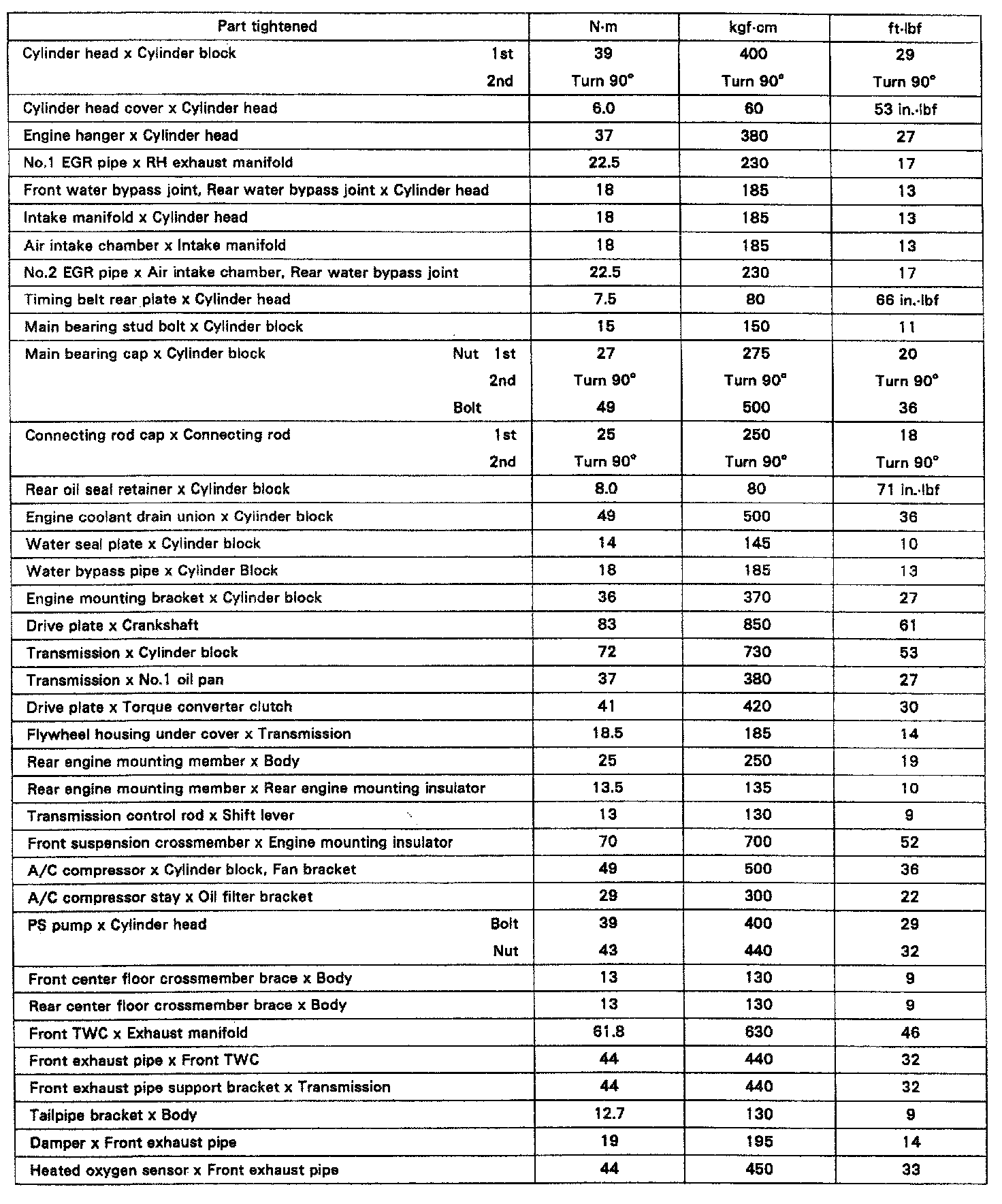

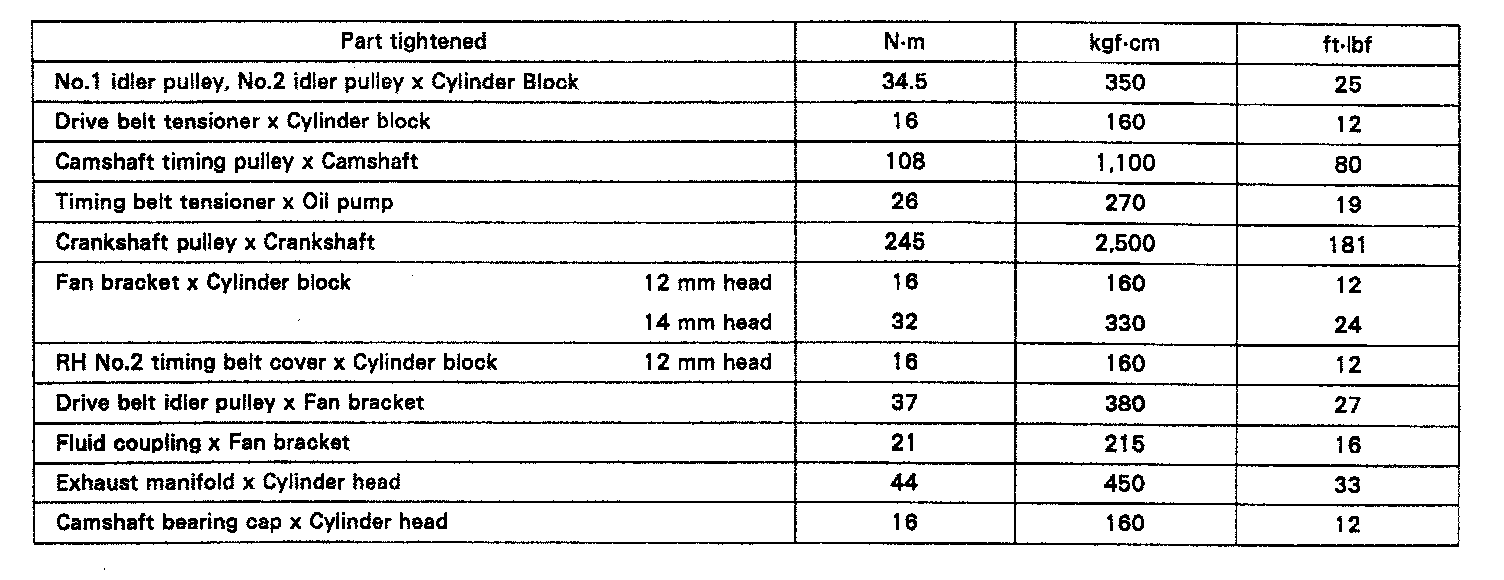

TIGHTENING SPECIFICATIONS

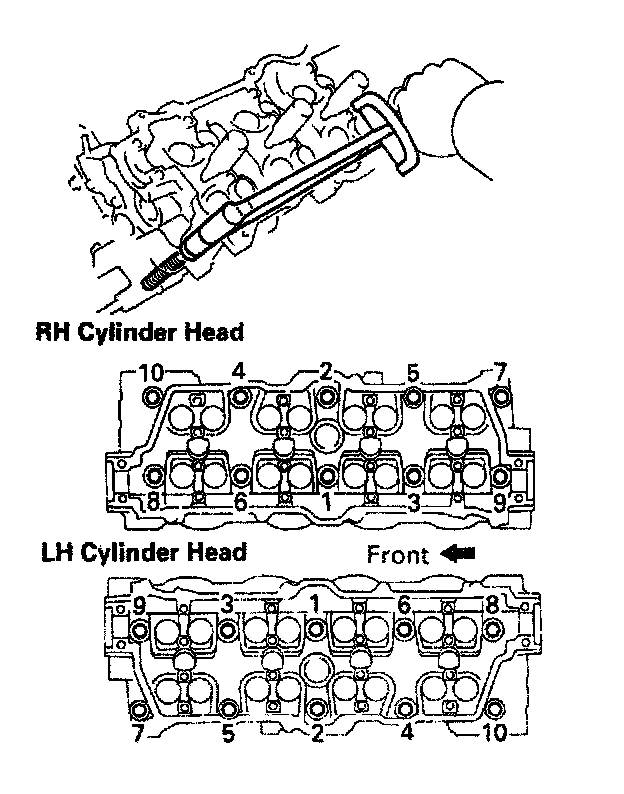

CYLINDER HEAD TIGHTENING SEQUENCE

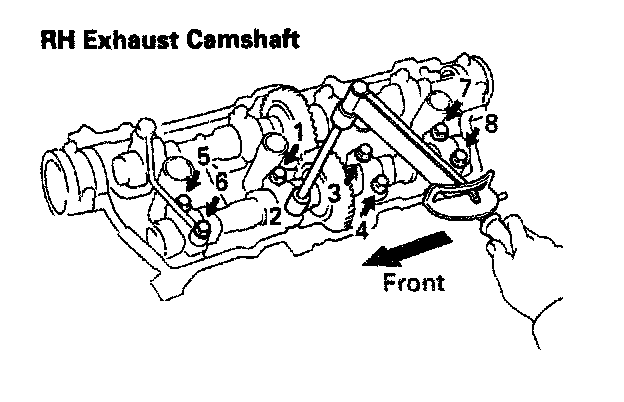

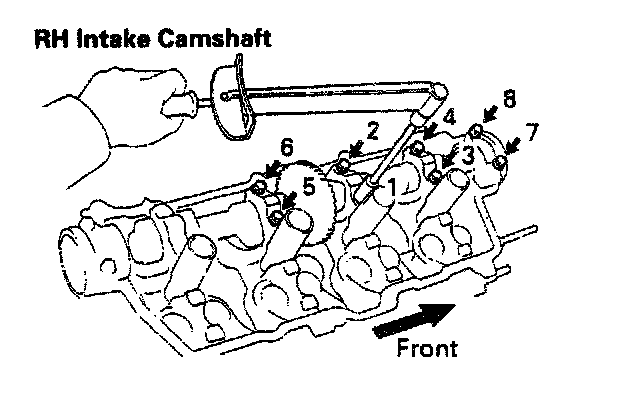

RH CAM TIGHTENING SEQUENCE

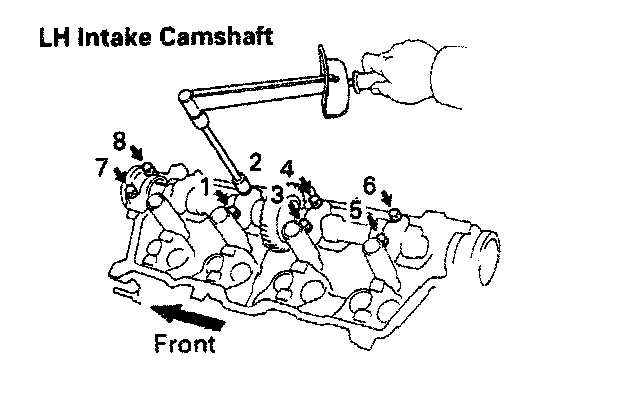

LH CAM TIGHTENING SEQUENCE

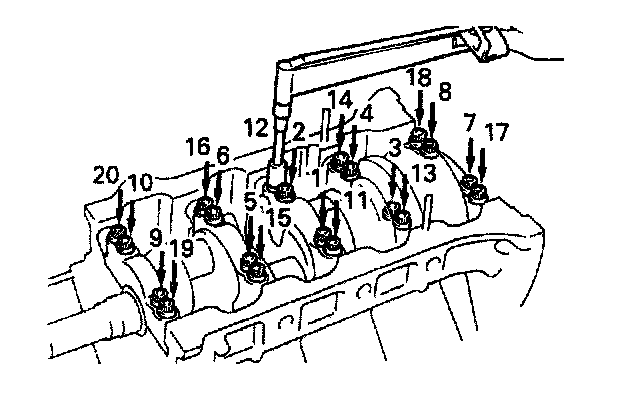

MAIN BEARING TIGHTENING SEQUENCE

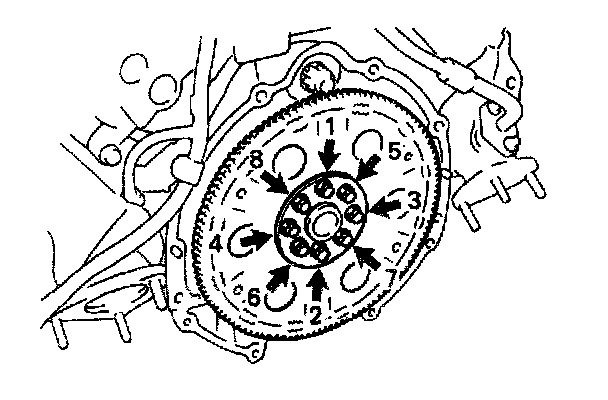

FLYWHEEL TIGHTENING SEQUENCE
