Input Signal Check

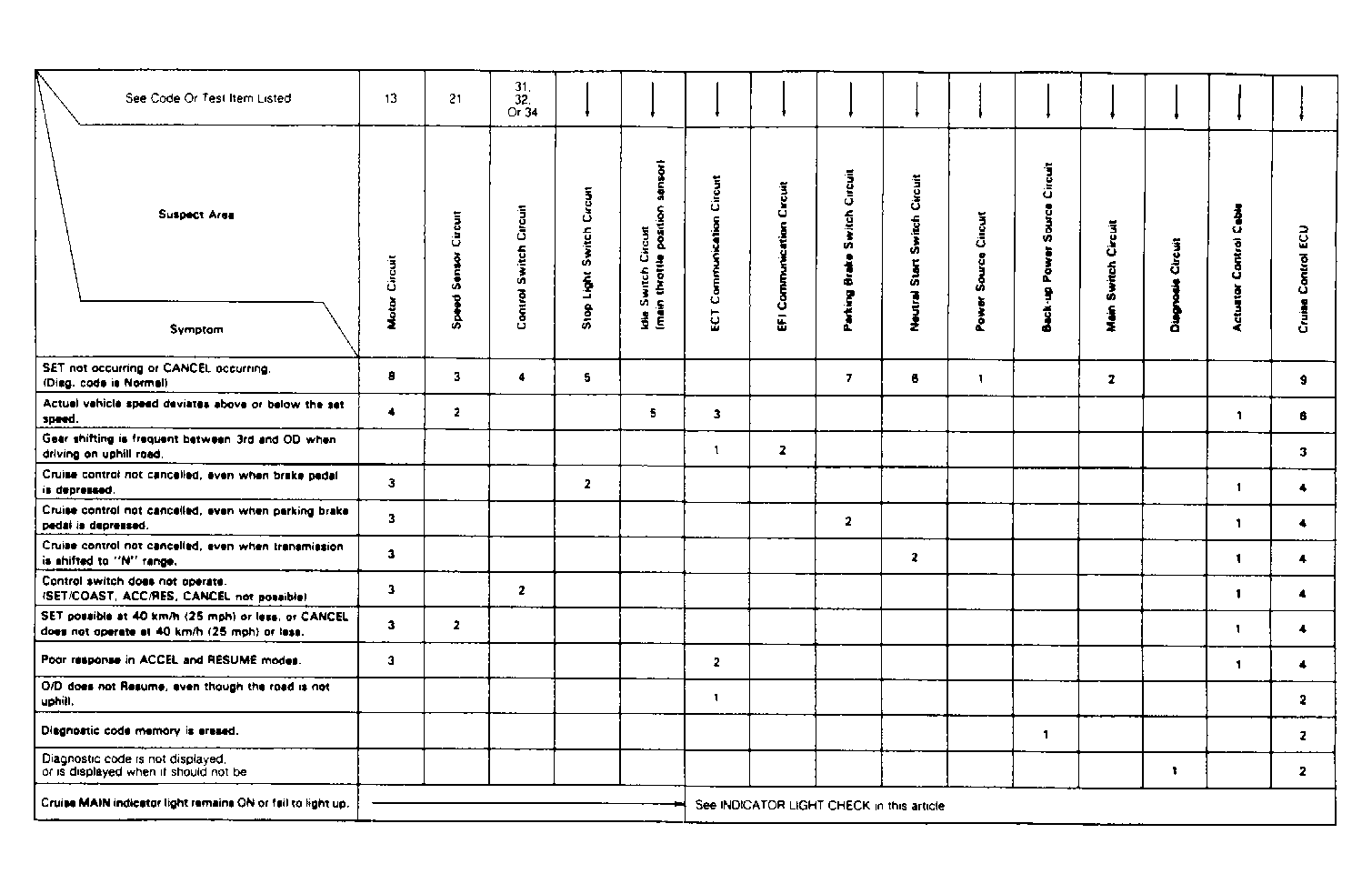

Perform INPUT SIGNAL CHECK under TROUBLE SHOOTING in this article. Cruise control indicator light should generate a 6-pulse signal when brake pedal is depressed. If pulse signal occurs as indicated, go to next inspection item shown on matrix chart in Figure or Figure . If pulse signals do not occur as indicated, go to WIRING HARNESS.
