Test A: Transmitter Battery Capacity Check
NOTE:
Preform this inspection only when transmitter is judged to be faulty in initial check.

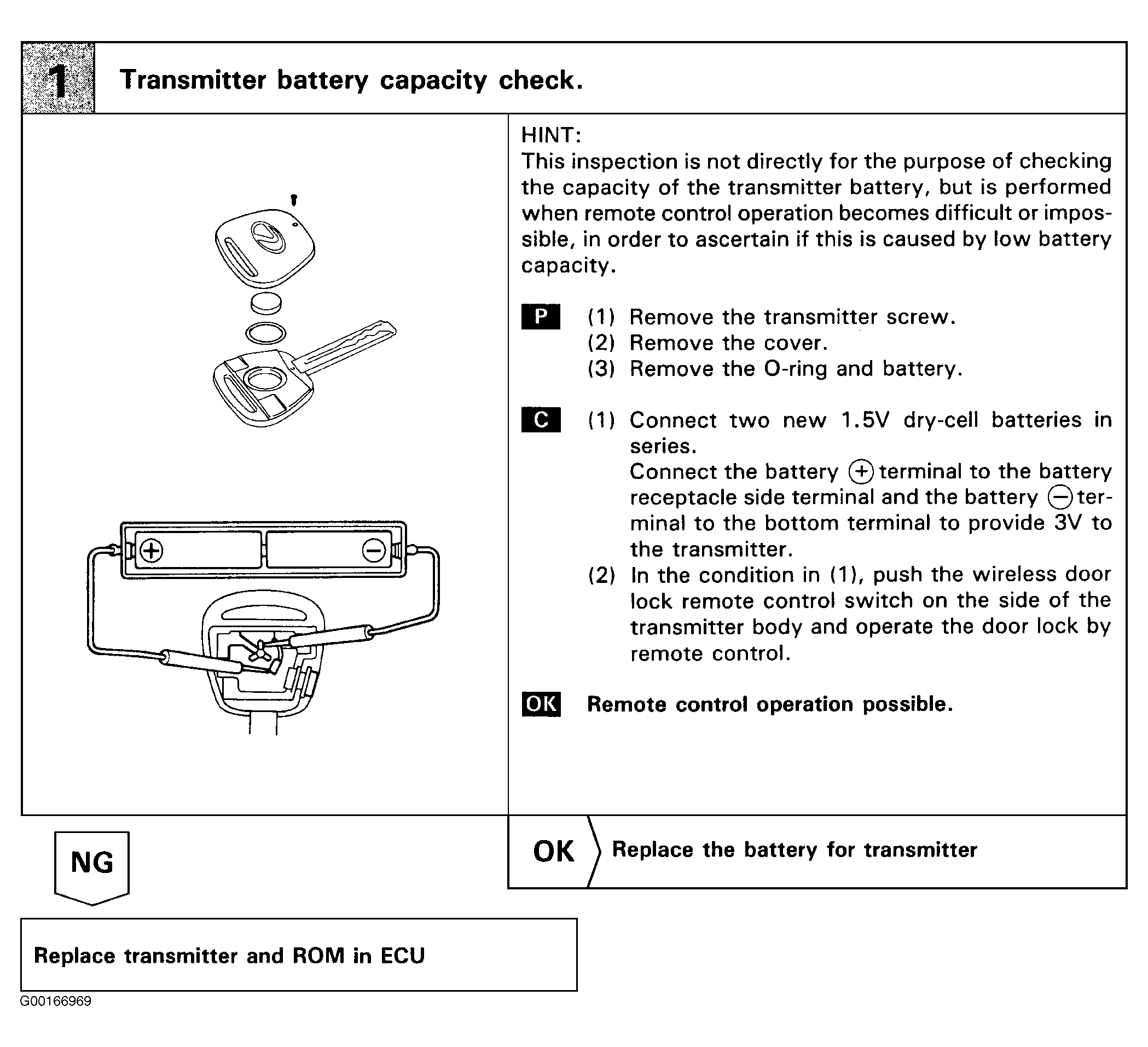

Fig 1: Transmitter Battery Capacity Check
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
