Power Window Master Switch: Illumination

Set the window lock switch to the unlock position.
Connect the positive (+) lead from the battery to terminal 9, and the negative (-) lead to terminal 8, see Fig 1. Check that all the illuminators light up.

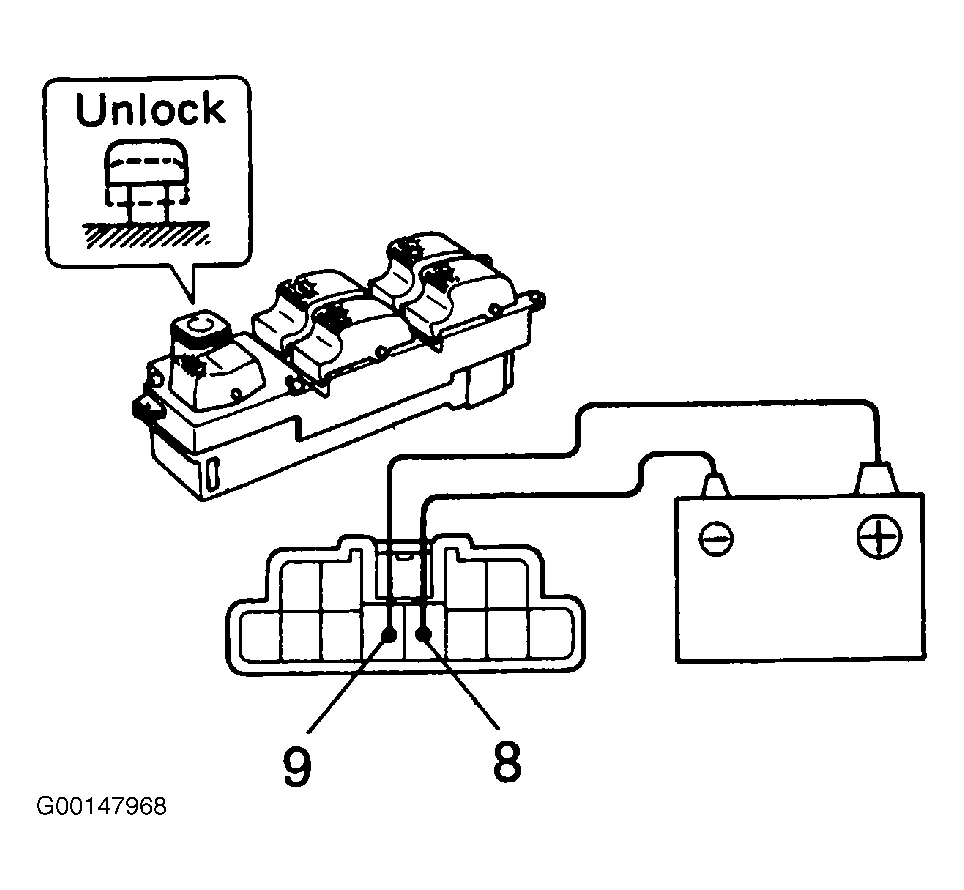

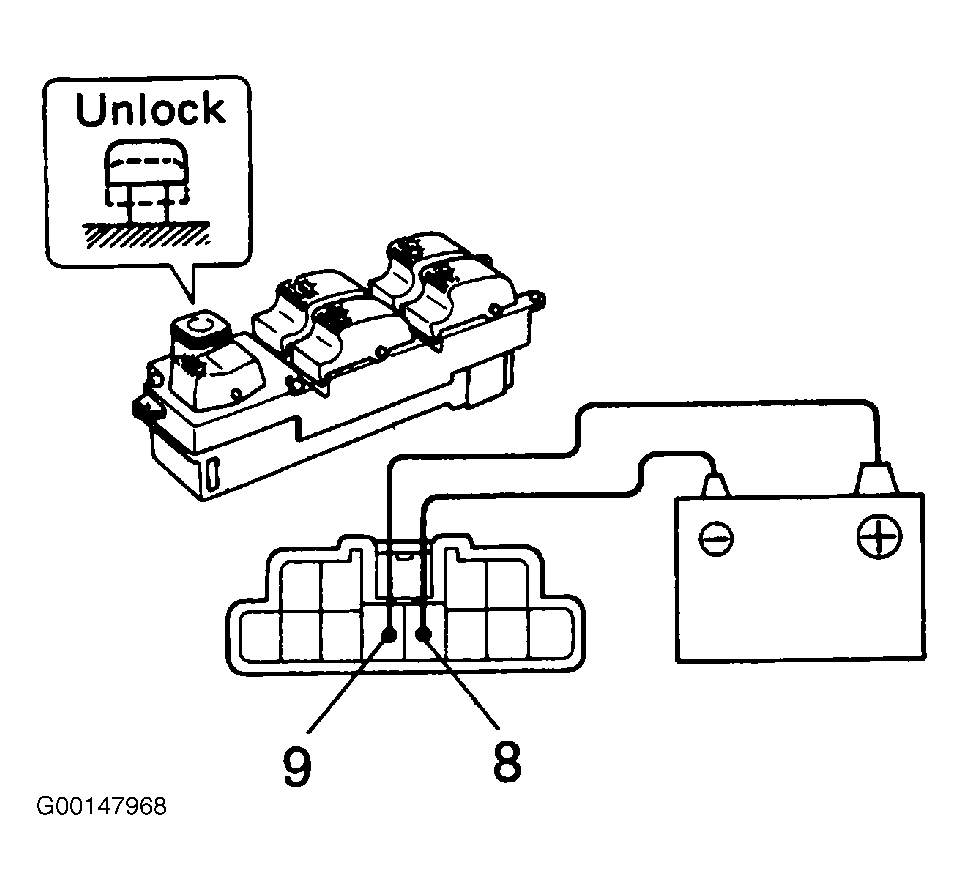

Fig 1: Checking Master Window Switch Illumination
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Set the window lock switch to the lock position, see Fig 2. Check that all the passenger's power window switch illuminations go out. If operation is not as specified, replace the master switch. See POWER WINDOW MASTER SWITCH .

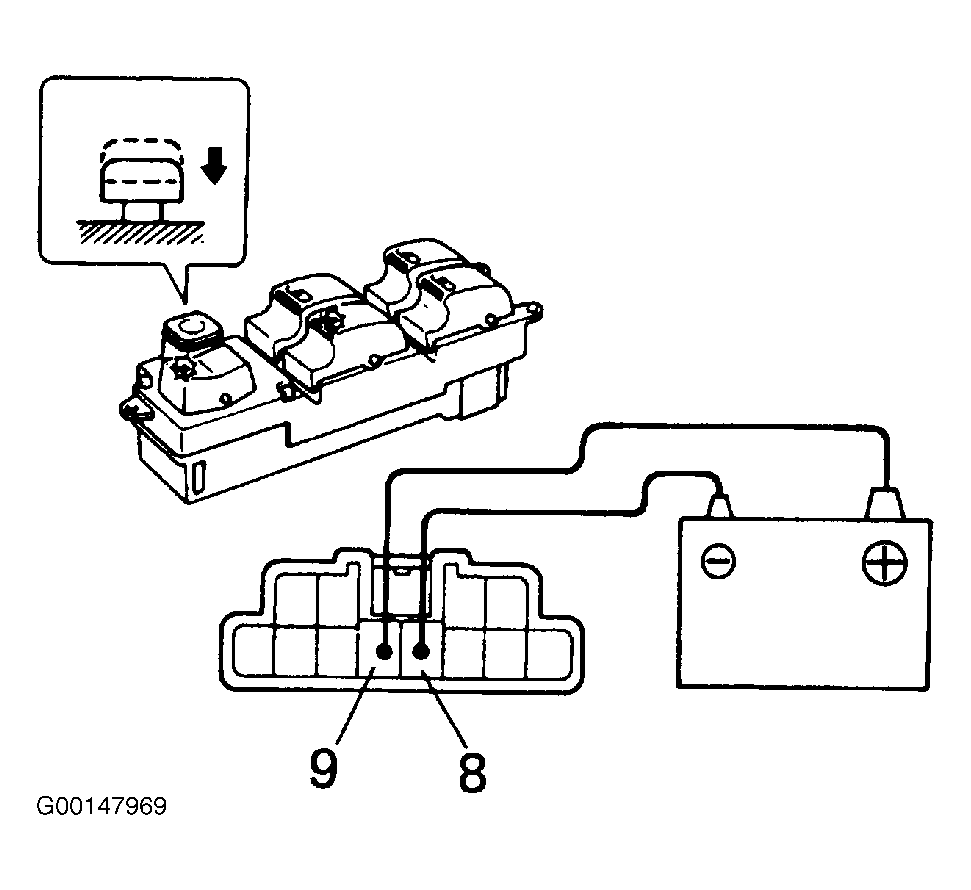

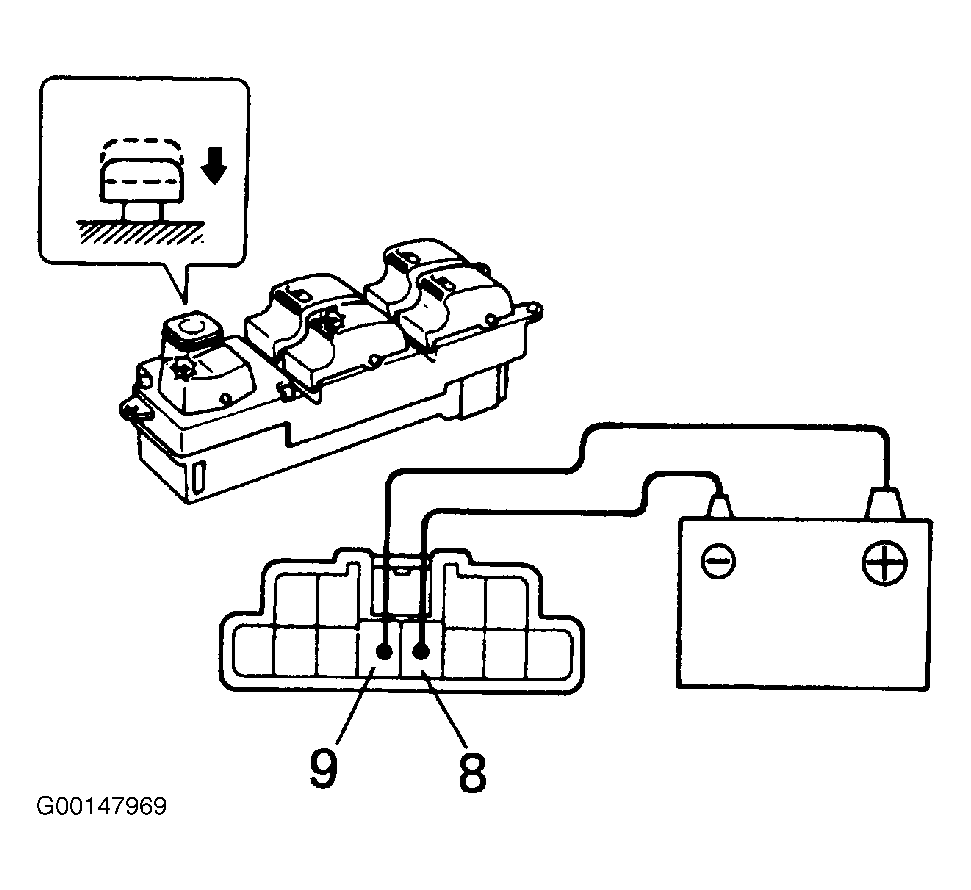

Fig 2: Checking Passenger Window Switch Illumination
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
