Combination Meter Check

Disconnect connector "A" from combination meter. Using a jumper wire, ground terminal No. 5 of connector "A". See Fig 1. Turn ignition on. ANTI-LOCK warning light should illuminate.
If ANTI-LOCK light illuminates, check wiring harness between terminal No. 5 of connector "A" and ABS and TRAC ECU (if equipped). Repair if necessary. If ANTI-LOCK light does not illuminate, check bulb and replace if necessary. If bulb is okay, replace circuit plate. Recheck system operation.

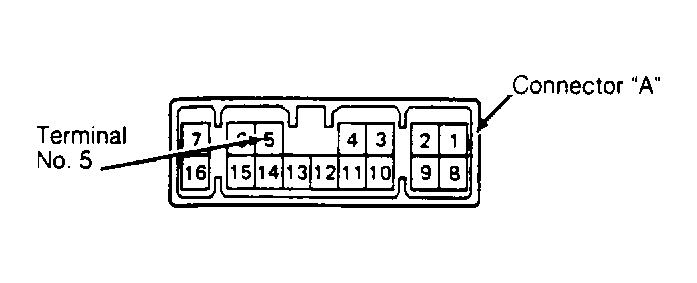

Fig 1: Identifying Combination Meter Connector "A" Terminals
