Alternator & Regulator: Description

Nippondenso 3-phase alternators use 3 positive and 3 negative diodes to rectify current. Charging system voltage is controlled by an internal Integrated Circuit (IC) voltage regulator.

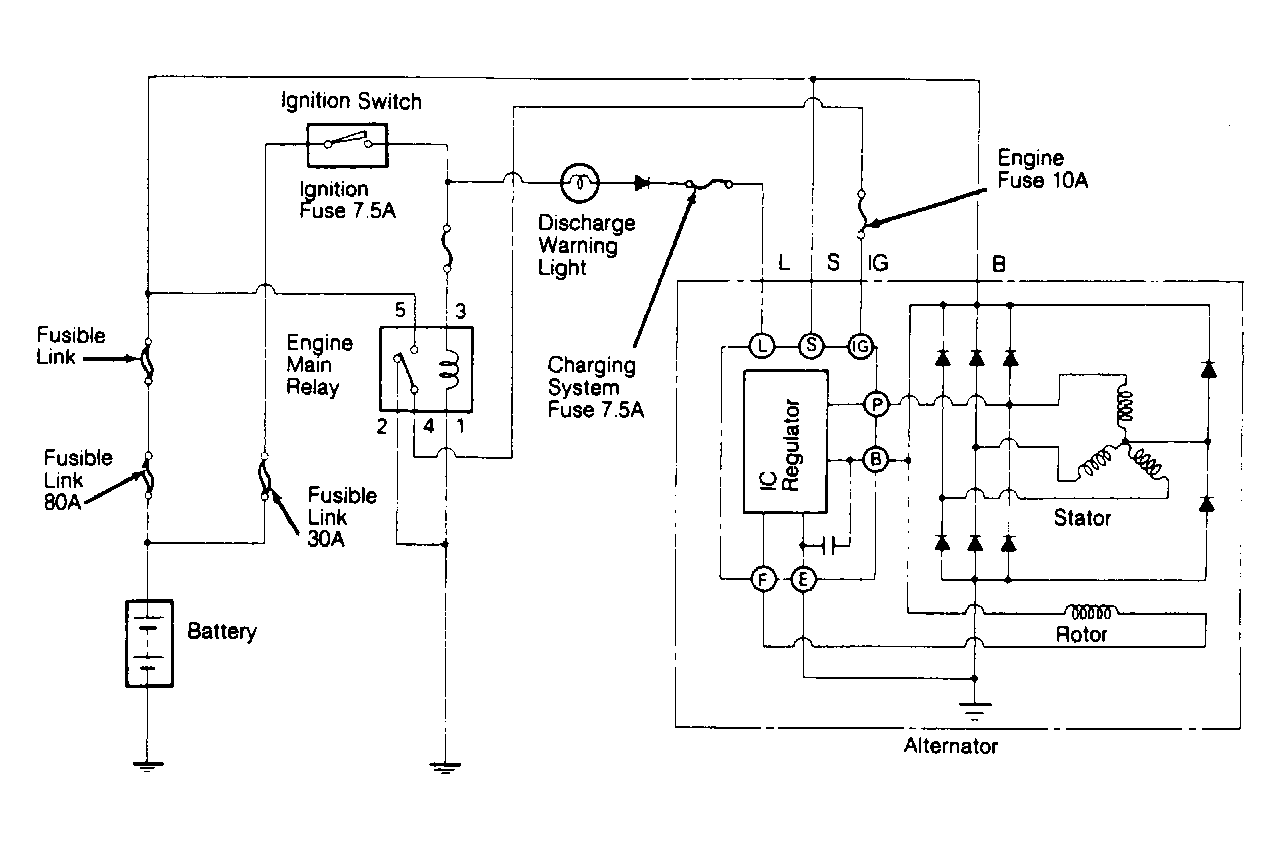

Fig 1: Charging Circuit Schematic (ES250)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Charging Circuit Schematic (LS400)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
