Alternator & Regulator: Overhaul

NOTE: Overhaul procedures are not available from manufacturer. See Fig 1 and Fig 2 for exploded views of alternator.

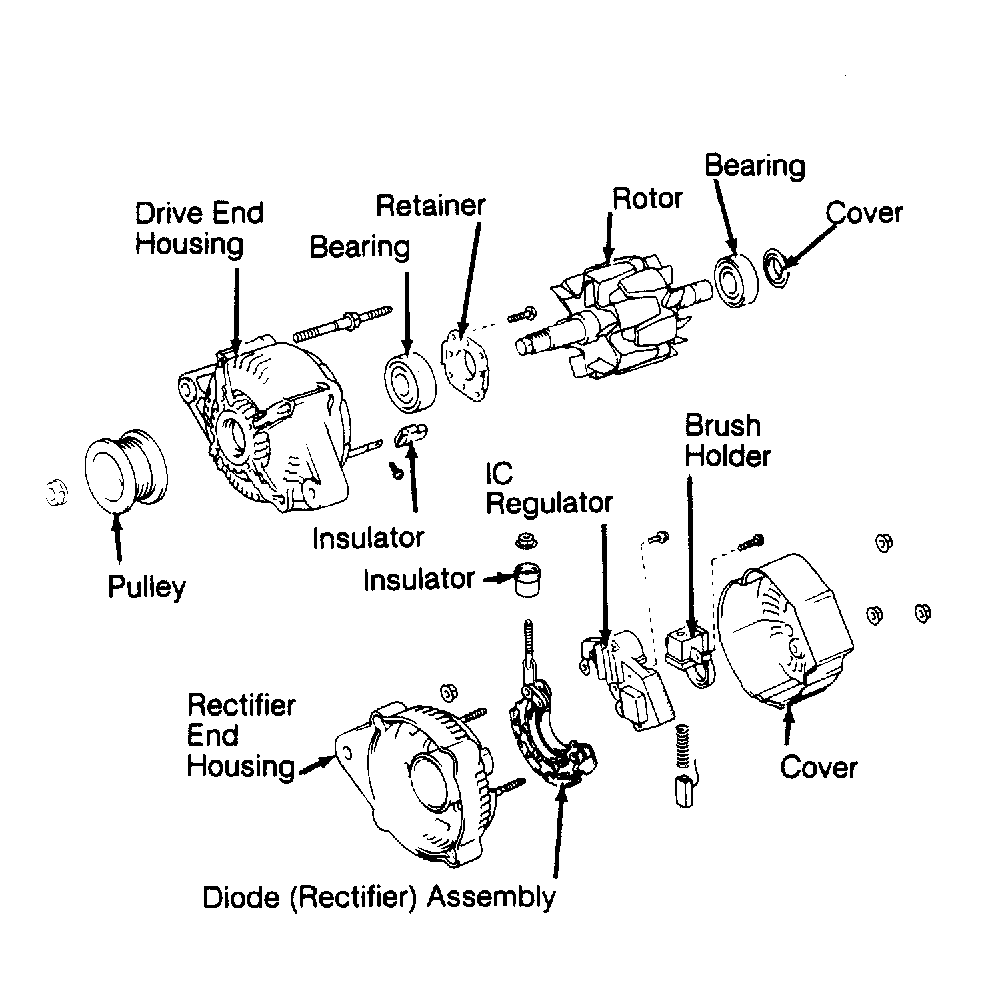

Fig 1: Exploded View Of Nippondenso Alternator (ES250)
G91B02735Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

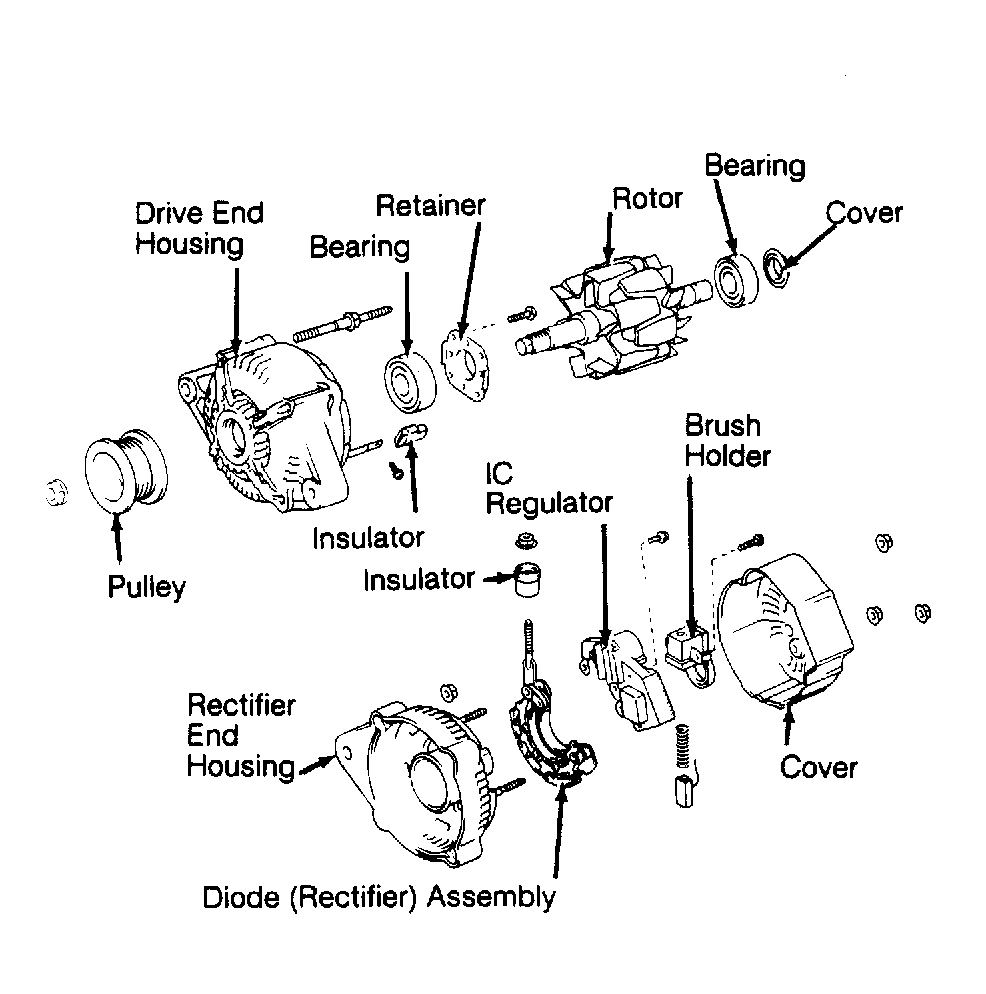

Fig 2: Exploded View of Nippondenso Alternator (LS400)
G91D02736Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
