Component Locations

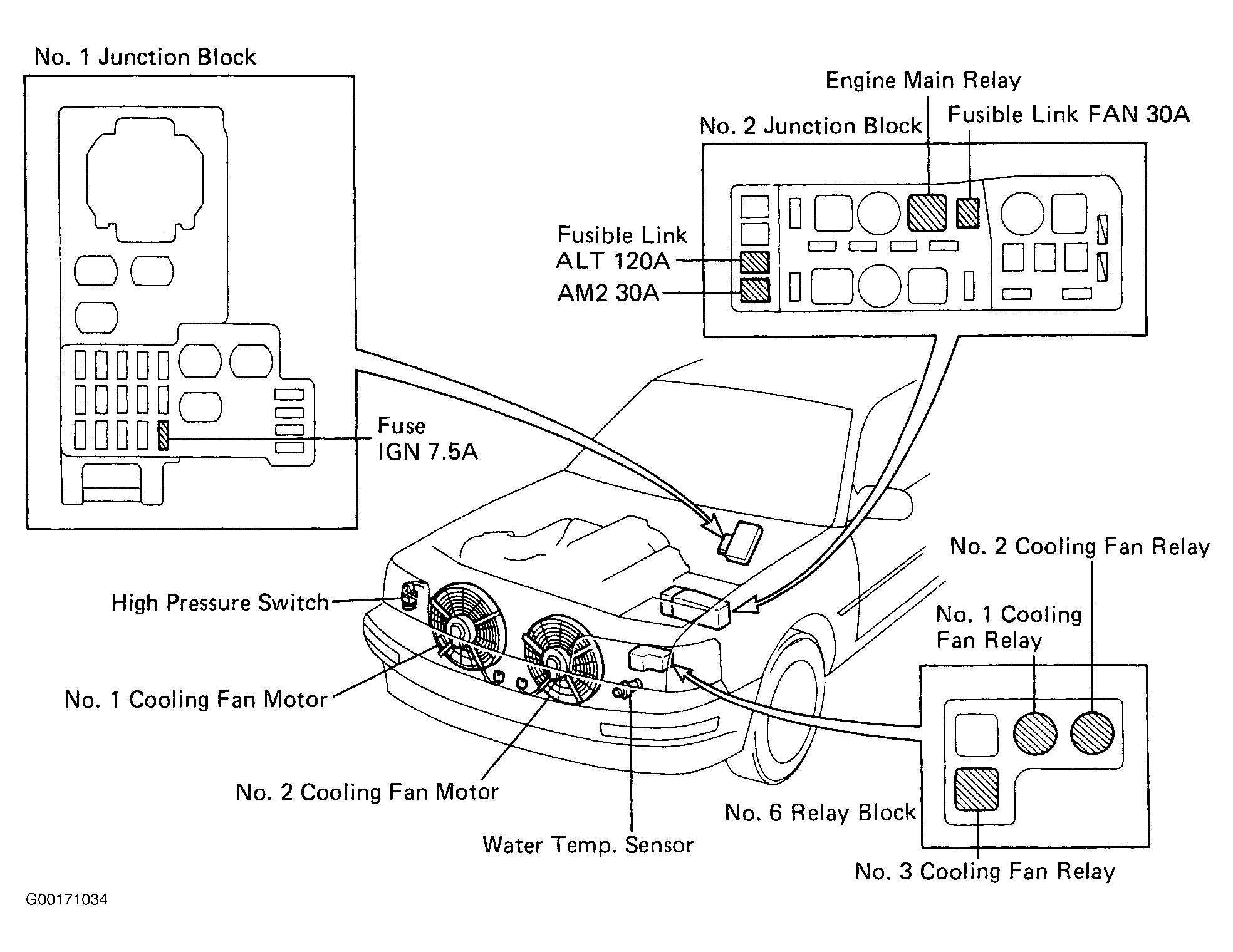

Fig 1: Location Of Electronic Cooling Fan Relays, No. 1 Junction Block & Water Temperature Switch
G00171034Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

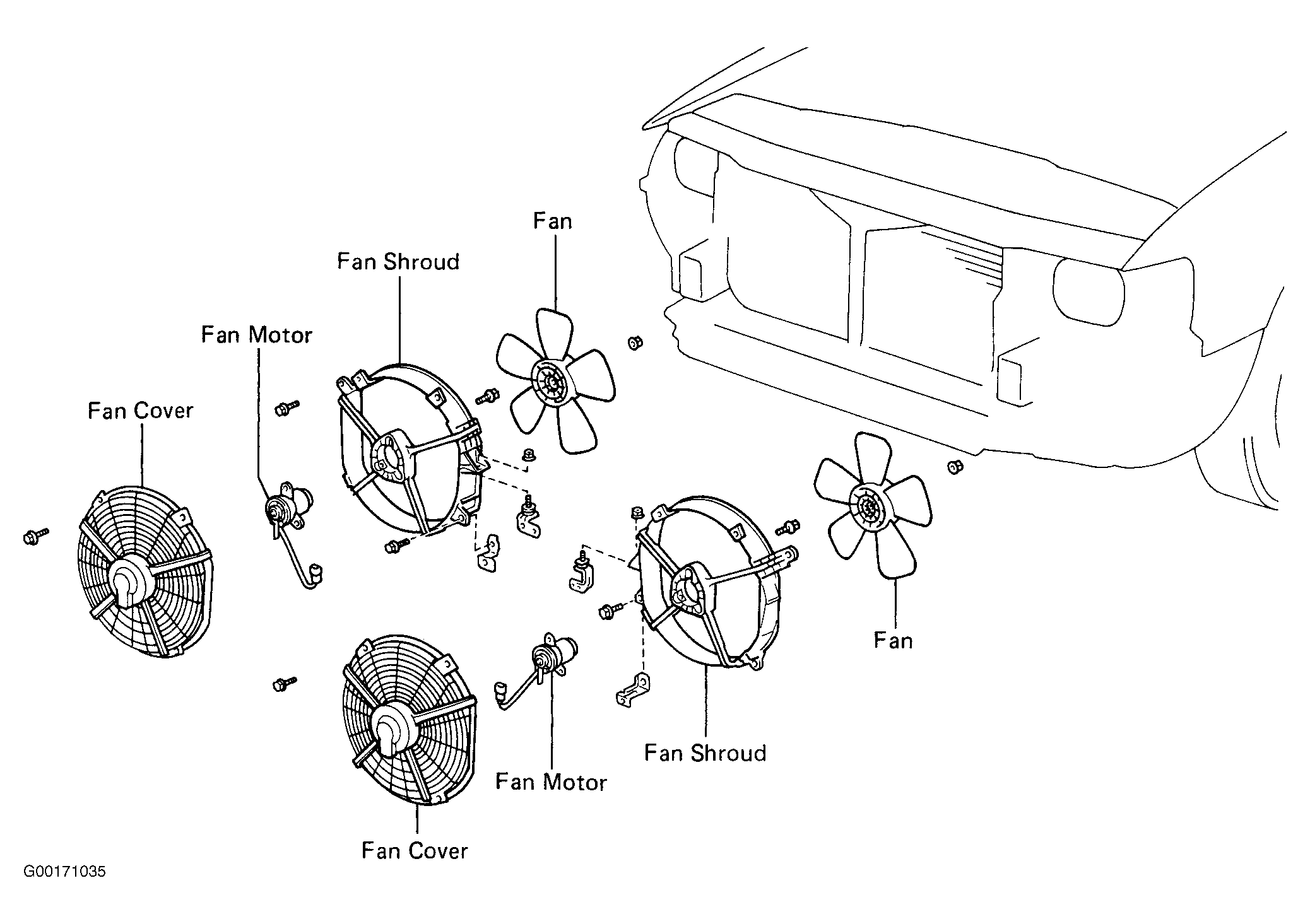

Fig 2: Location Of Electronic Cooling Fan Components
G00171035Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Locating A/C High Pressure Switch (Right Front Of Engine Compartment)
G91D04684Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
