Code 13: Rpm Signal Circuit No. 2

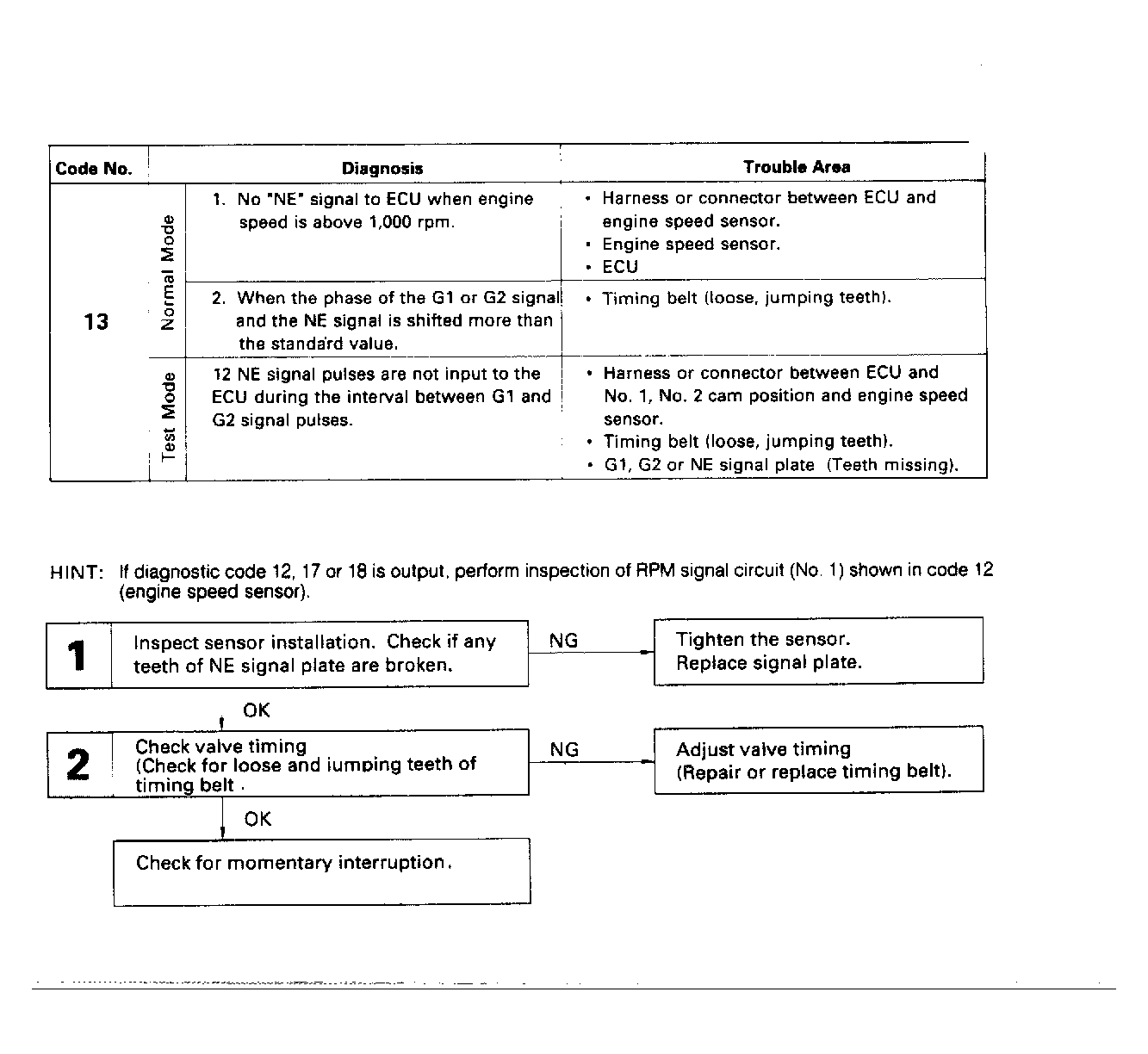

Fig 1: Code 13: RPM Signal Circuit No. 2 Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
