Code 14 & 15: Ignition Signal No. 1 & 2

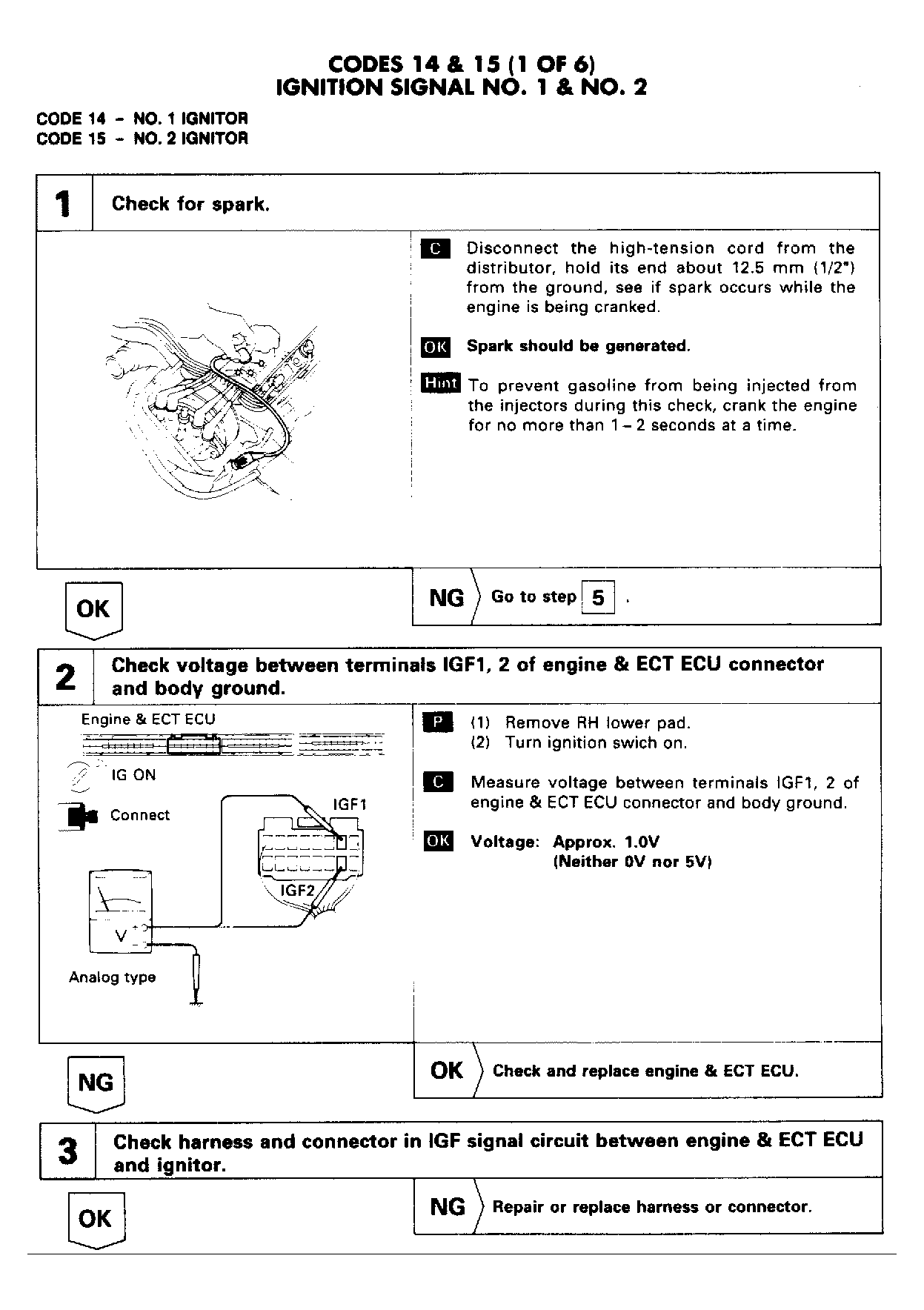

Fig 1: Code 14 & 15: Ign Signal No. 1 & 2 Steps 1-3 (1 of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

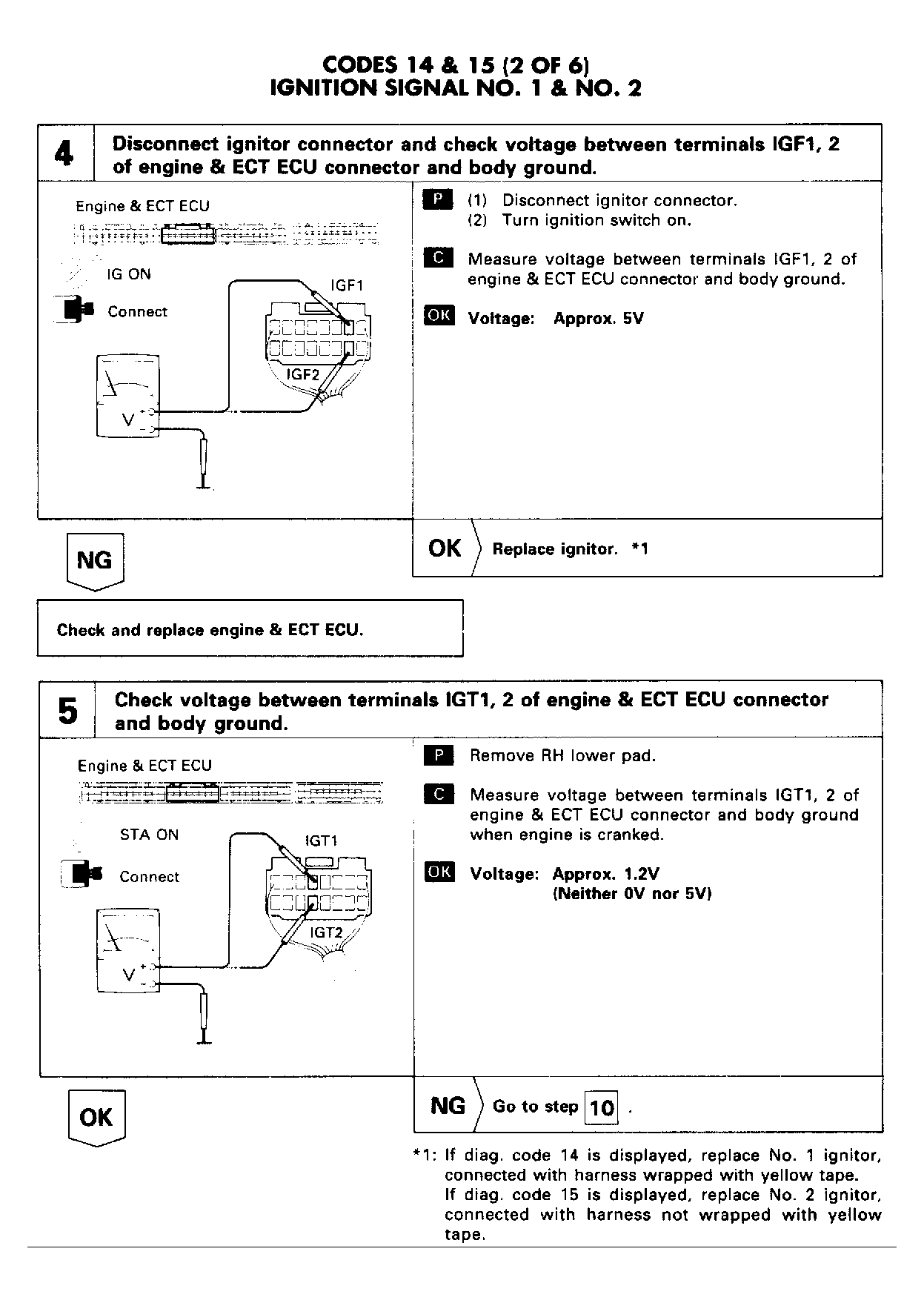

Fig 2: Code 14 & 15: Ign Signal No. 1 & 2 Steps 4 & 5 (2 of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

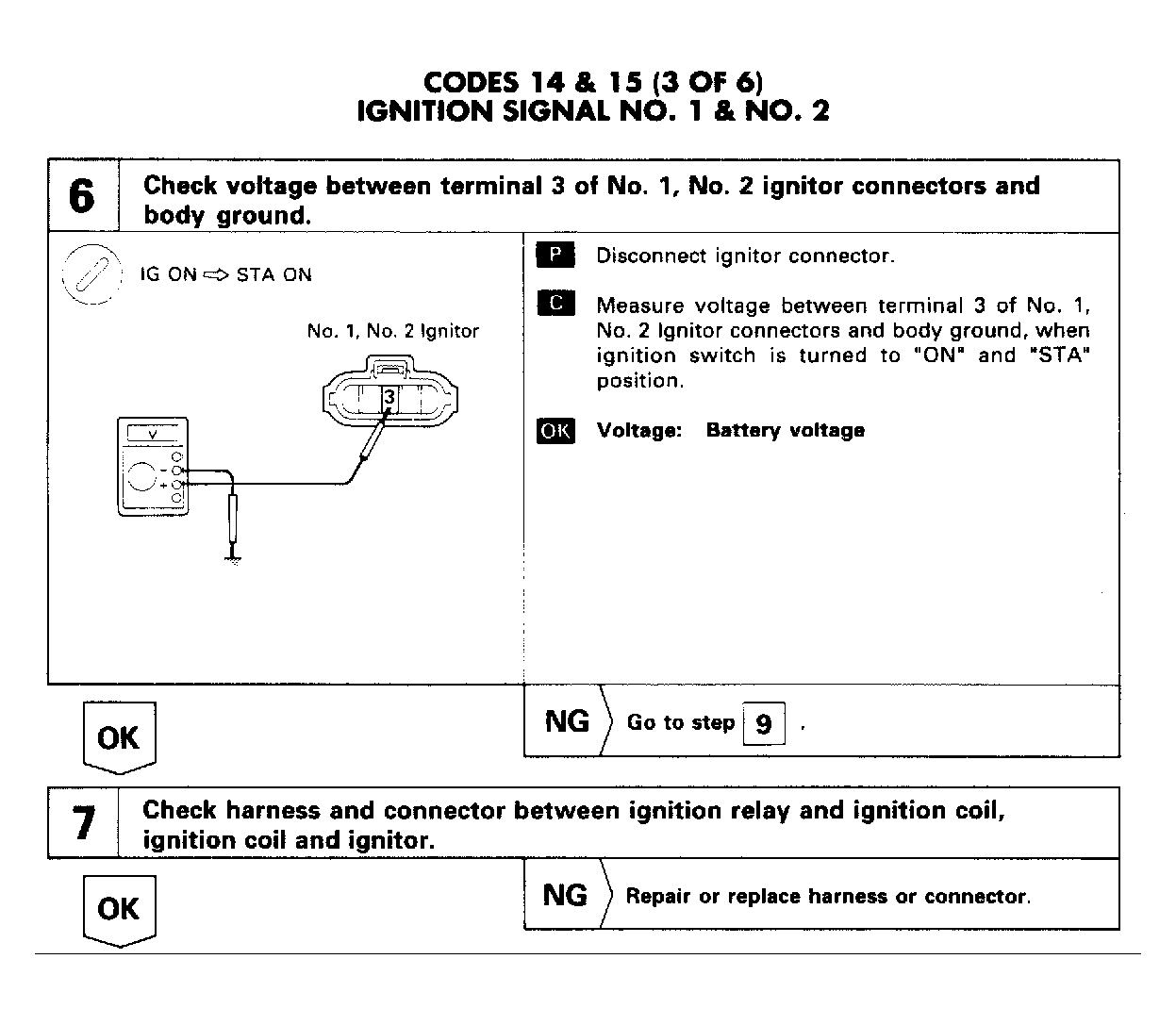

Fig 3: Code 14 & 15: Ign Signal No. 1 & 2 Steps 6 & 7 (3 of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

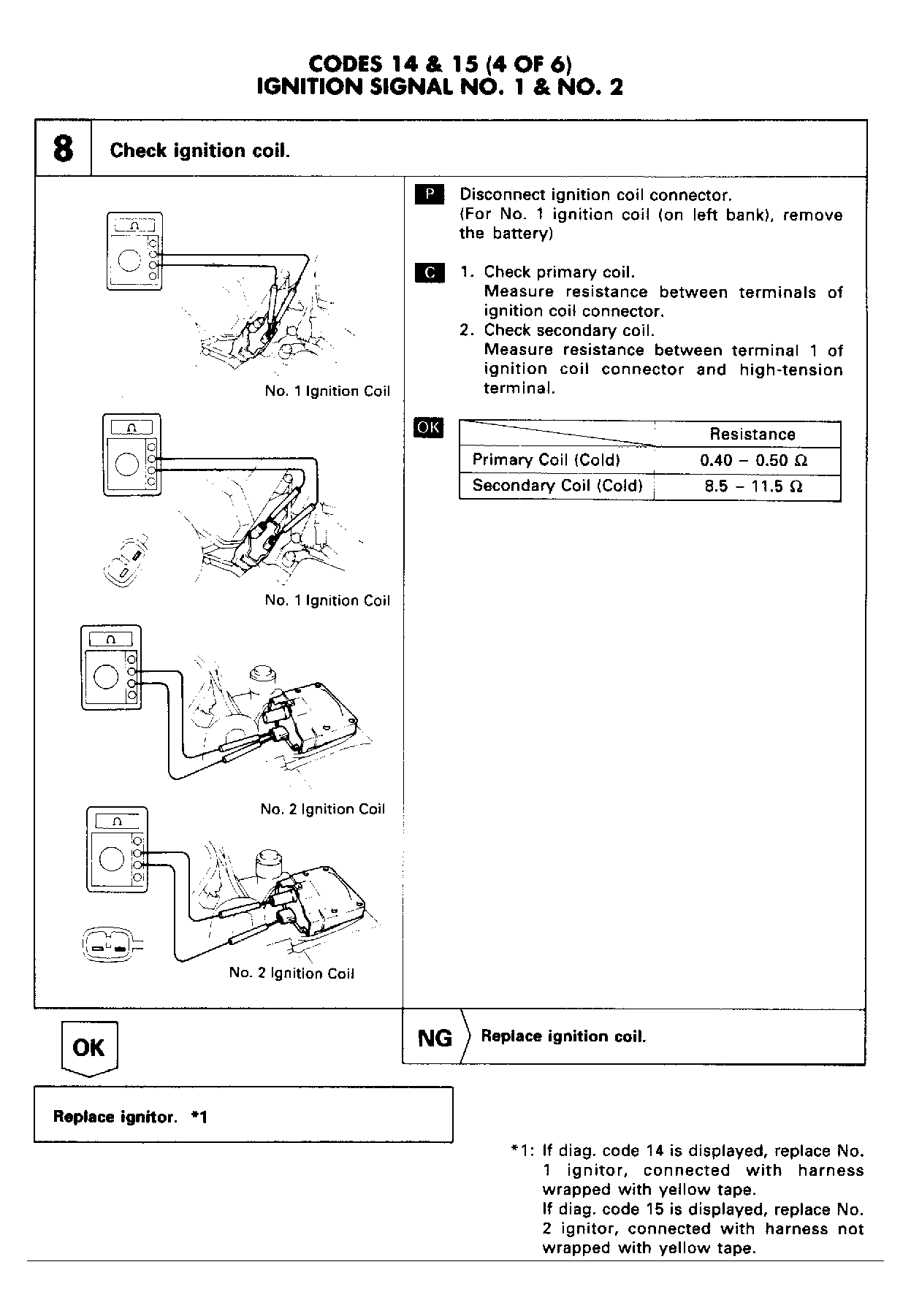

Fig 4: Code 14 & 15: Ign Signal No. 1 & 2 Step 8 (4 of 6)

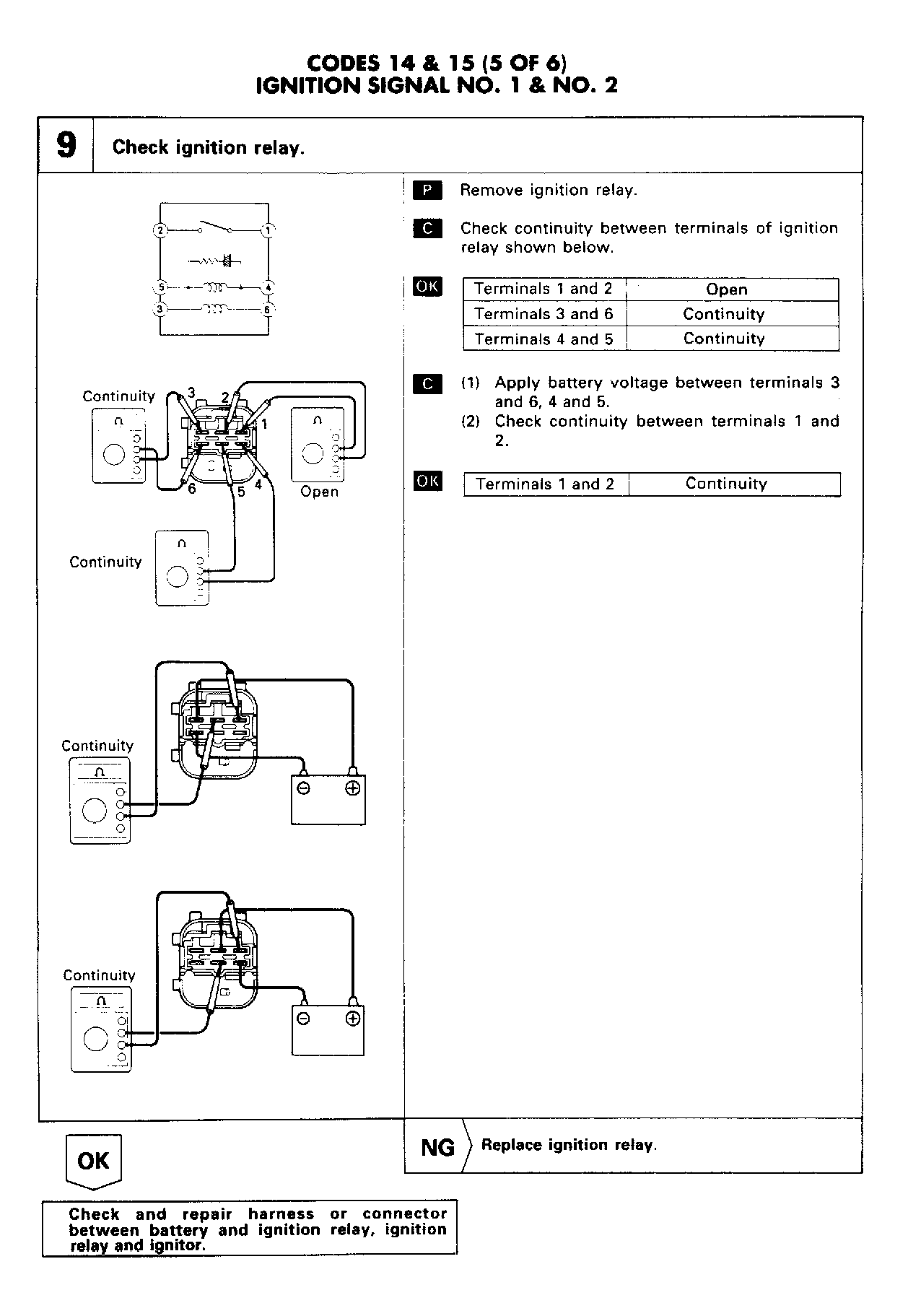

Fig 5: Code 14 & 15: Ign Signal No. 1 & 2 Step 9 (5 of 6)

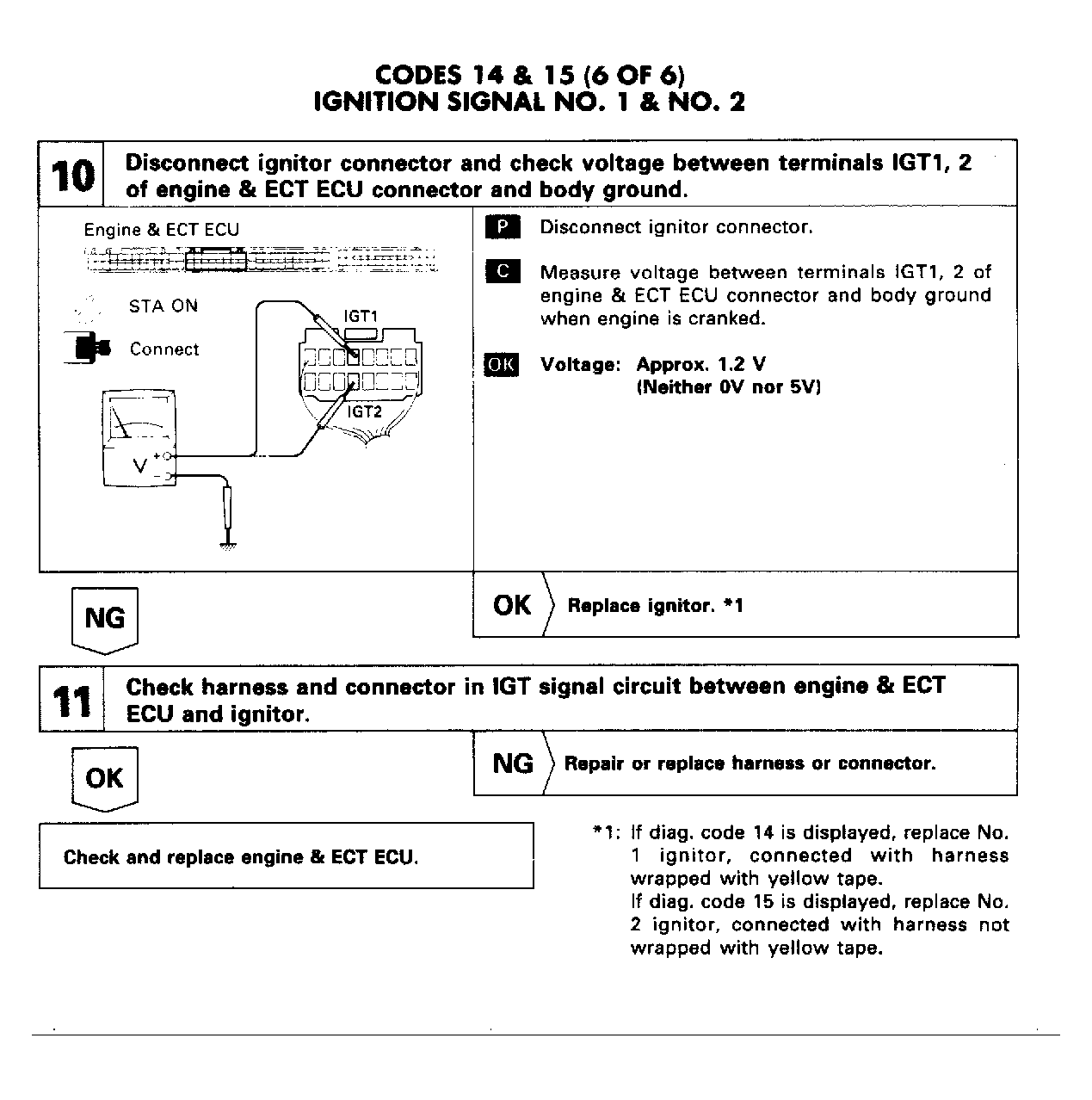

Fig 6: Code 14 & 15: Ign Signal No. 1 & 2 Steps 10 & 11 (6 of 6)
