Code 46: Solenoid Valve No. 4 Signal

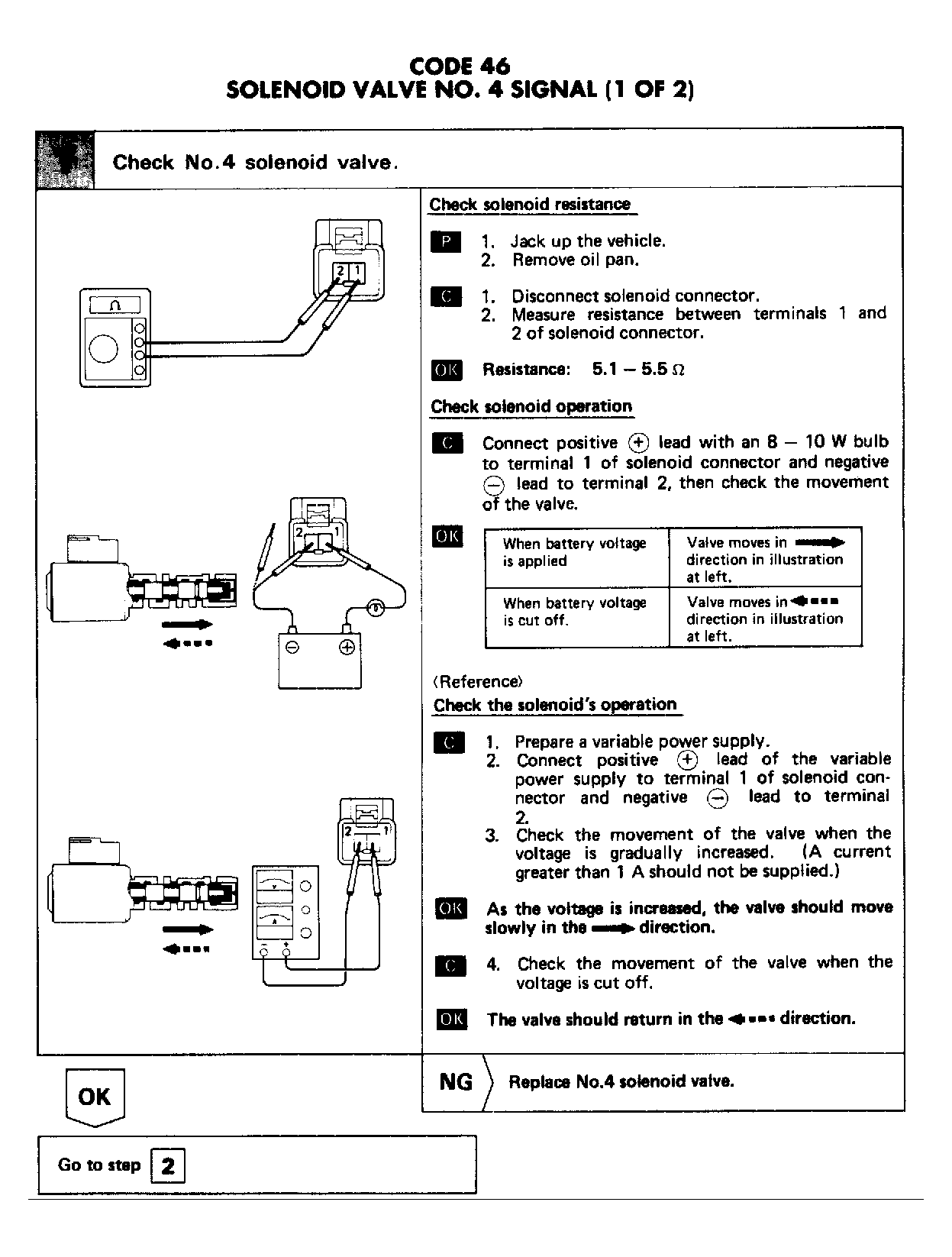

Fig 1: Code 46: Solenoid Valve No. 4 Signal (1 of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

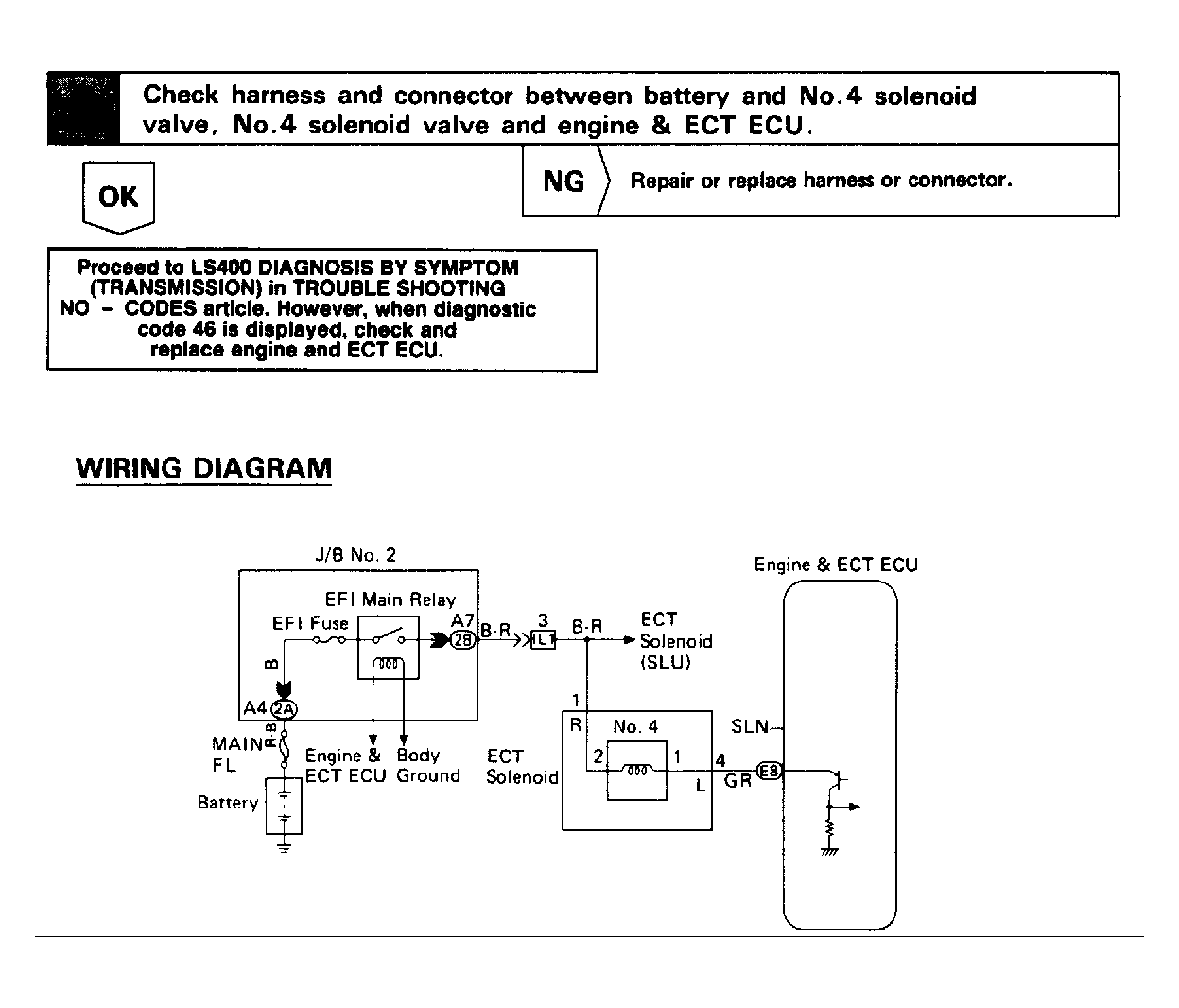

Fig 2: Code 46: Solenoid Valve No. 4 Signal (2 of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
