Steering Column: Notes

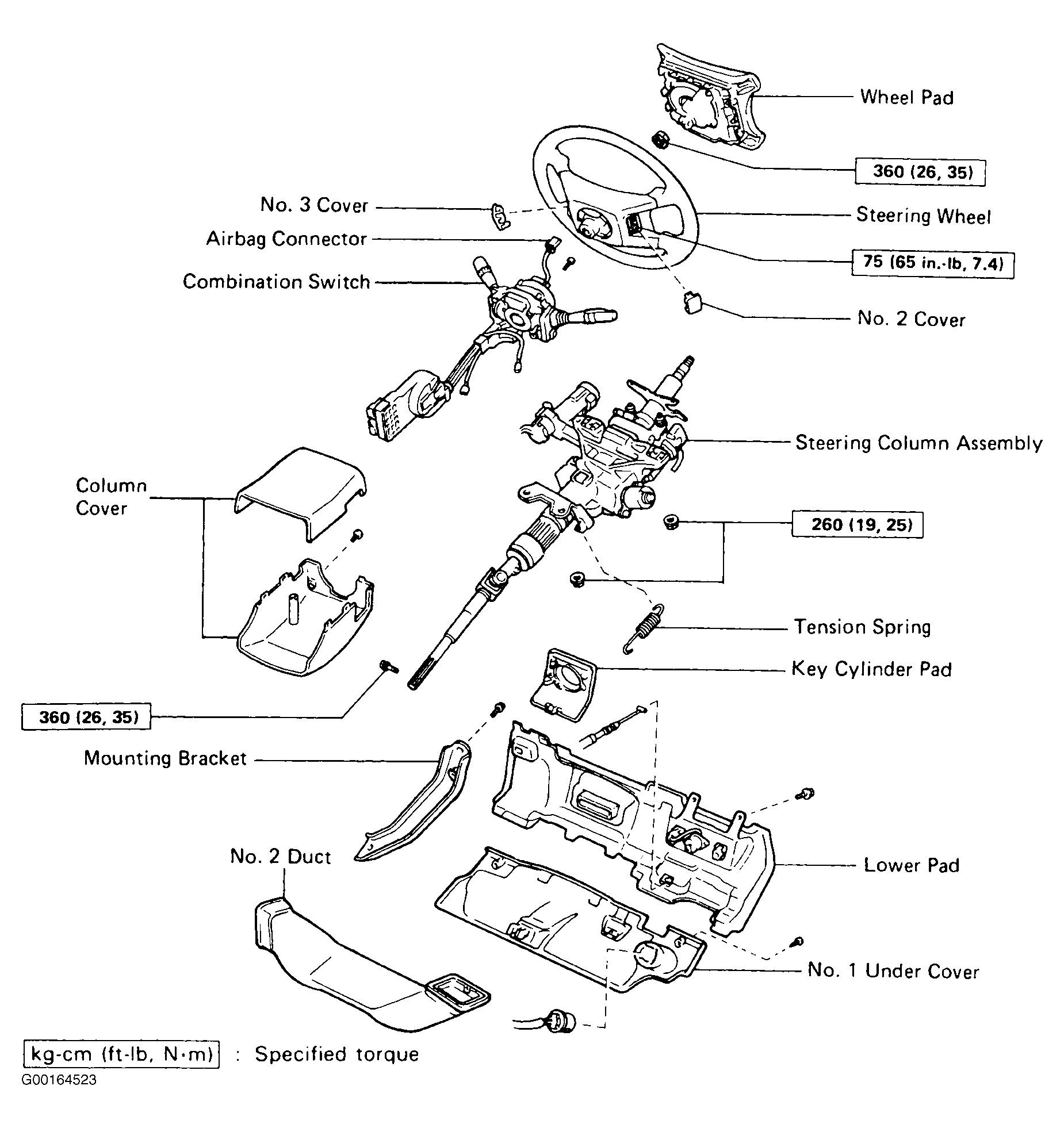

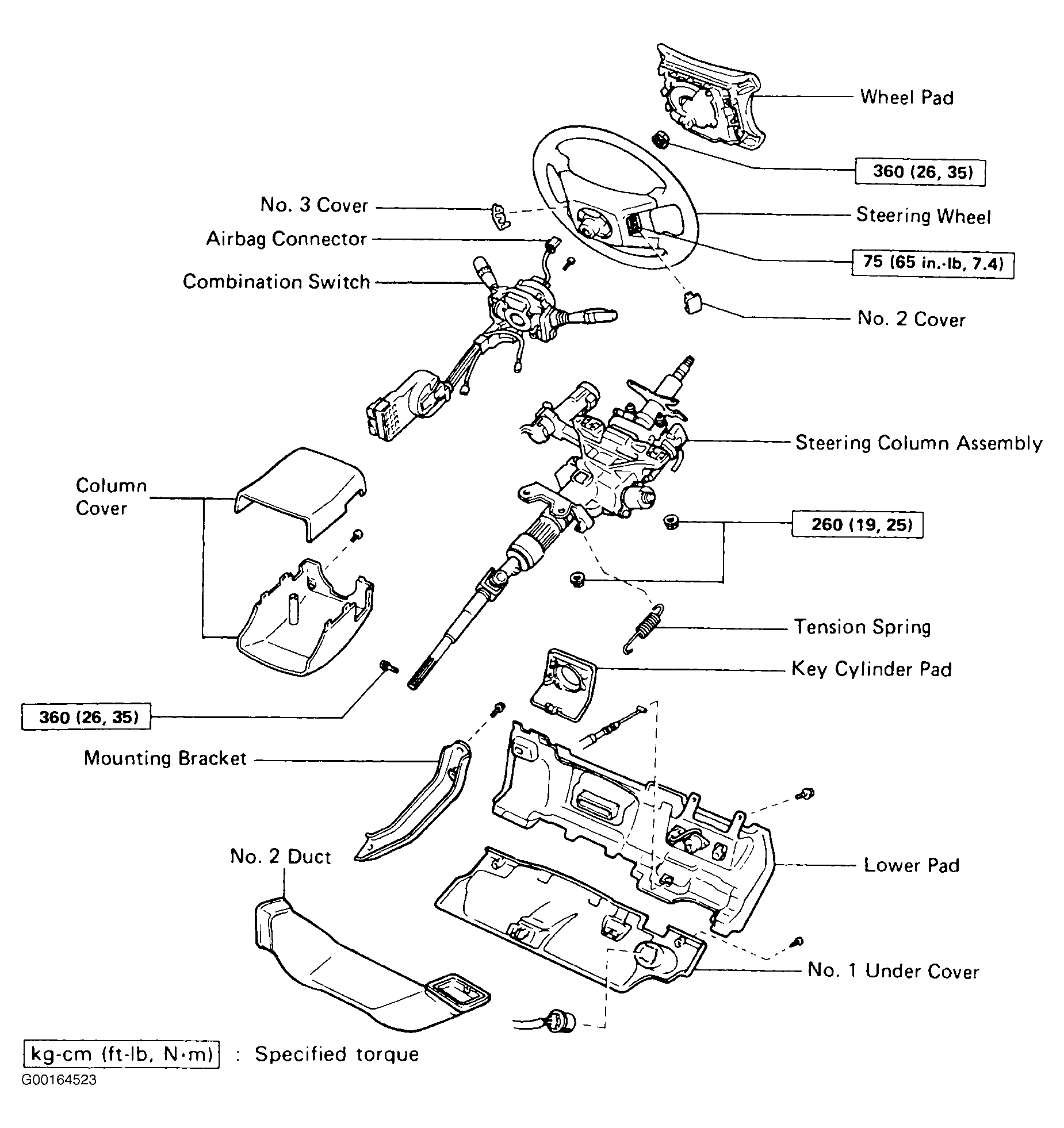

NOTE: Refer to Figure during removal and installation.
WARNING: When removing the wheel pad, take care not to pull the AIRBAG wire harness. When storing the wheel pad, keep the upper surface of the pad facing upward.
