Throttle Cable Adjustments
- Throttle cable clearance is 0-.04" (0-1 mm). On LS400, remove throttle body cover. On ES250, depress accelerator pedal to floor. Ensure throttle valve opens completely. On LS400, ensure throttle valve is fully closed. Ensure inner cable is not slack.

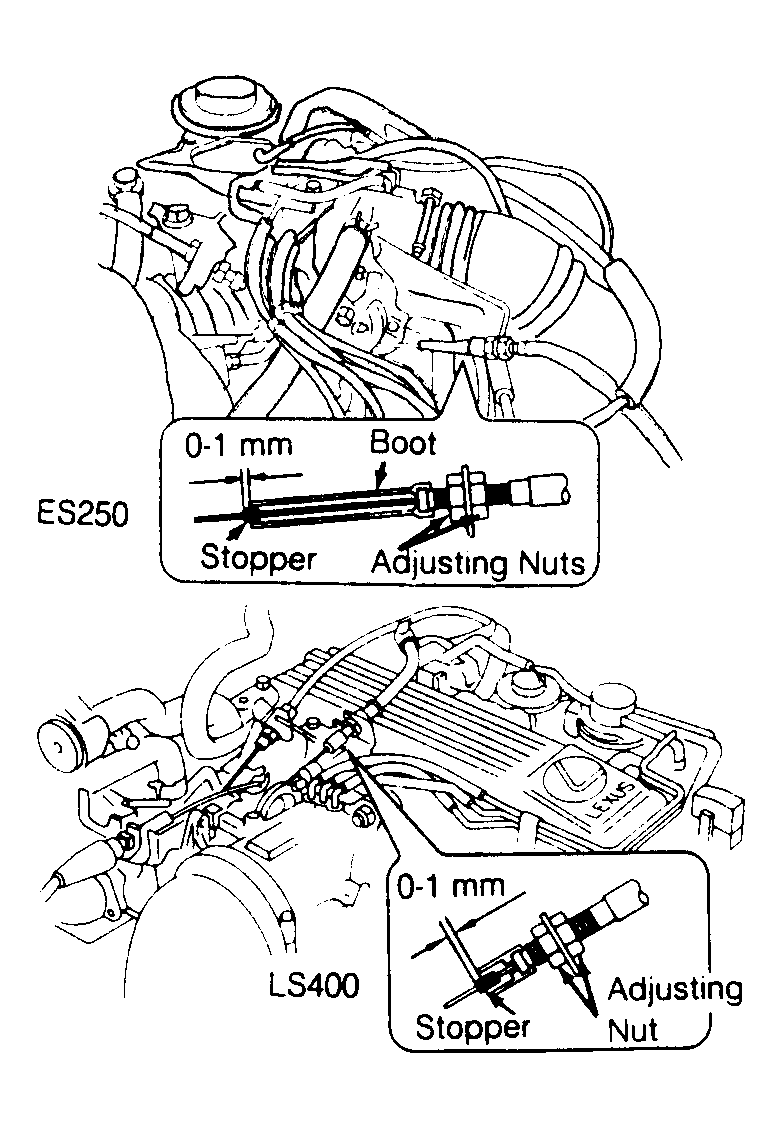

- On ES250, fully depress accelerator pedal. On all models, measure distance between end of boot and stopper on cable. See Fig 1. Adjust as necessary. On LS400, install throttle body cover.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
