Computerized Engine Controls: Notes

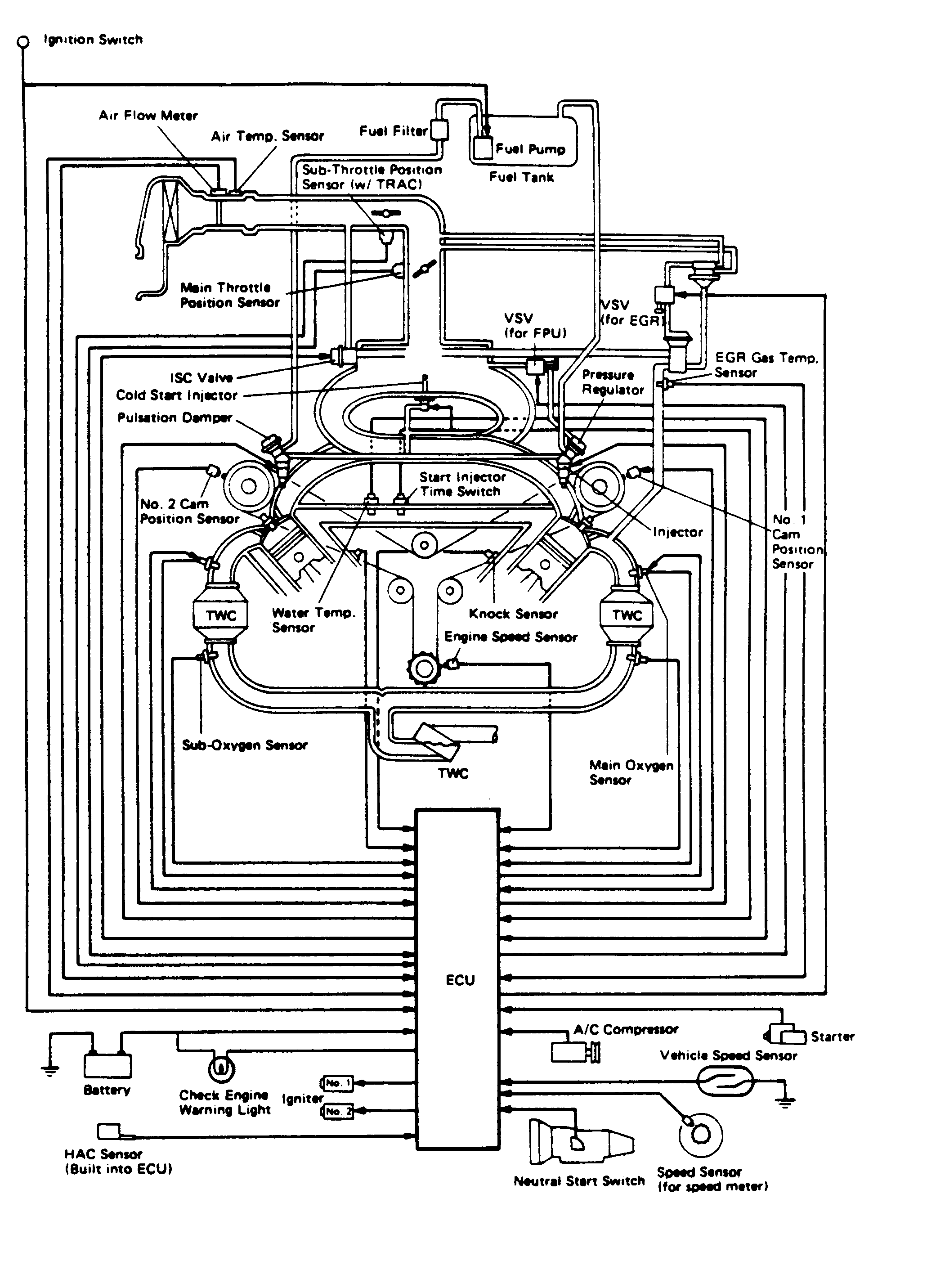

The engine control system uses an Electronic Control Unit (ECU) with a built-in microprocessor. Programs for calculation of fuel injection duration, ignition timing and idle speed are stored inside the ECU and are matched with various engine condition data relayed by input sensors. See Figure & 4. The ECU uses these data signals from various sensors in the vehicle and makes calculations with stored programs to determine fuel injection duration, ignition timing and idle speed, and outputs control signals to respective actuators that control engine operation.

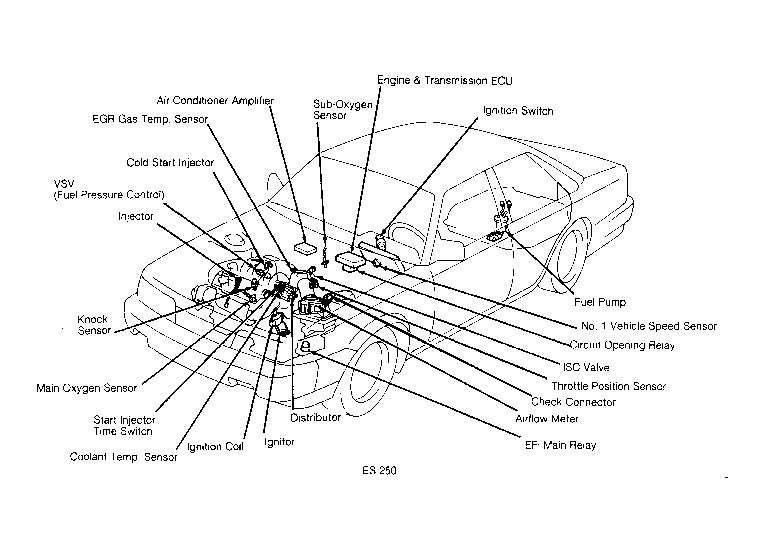

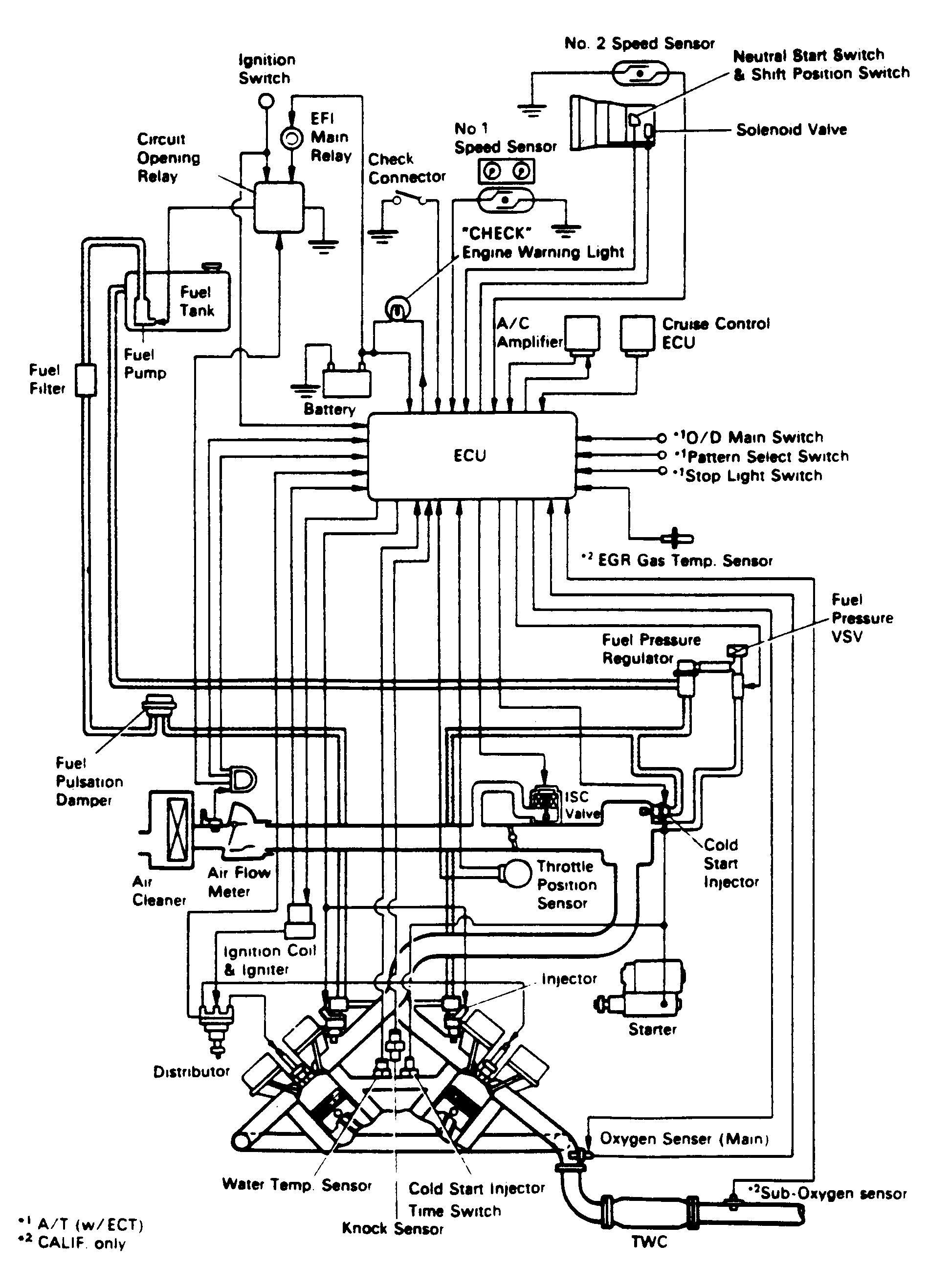

The engine ECU and transmission ECU are integrated into one control unit called the Engine & Transmission ECU. See Fig 1 and Fig 2.
The ECU is also equipped with a self-diagnostic function. Trouble codes are set by the malfunction of engine sensors or circuits, and are stored in the ECU memory. A CHECK ENGINE light on the instrument panel will come on if a trouble code is stored.
