Control Units
CONTROL UNITS LOCATION
| Component | Location | ||
|---|---|---|---|
| Anti-Lock Brakes (ABS) Control Unit | Under right rear package tray. | ||
| Electronic Control Unit (ECU) | |||
| Anti-Theft & Door Lock | Behind dash, right of center console. See Figure. | ||
| Cooling Fan | On right firewall. See Figure. | ||
| Cruise Control | Behind right side of dash. See Figure. | ||
| Engine | |||

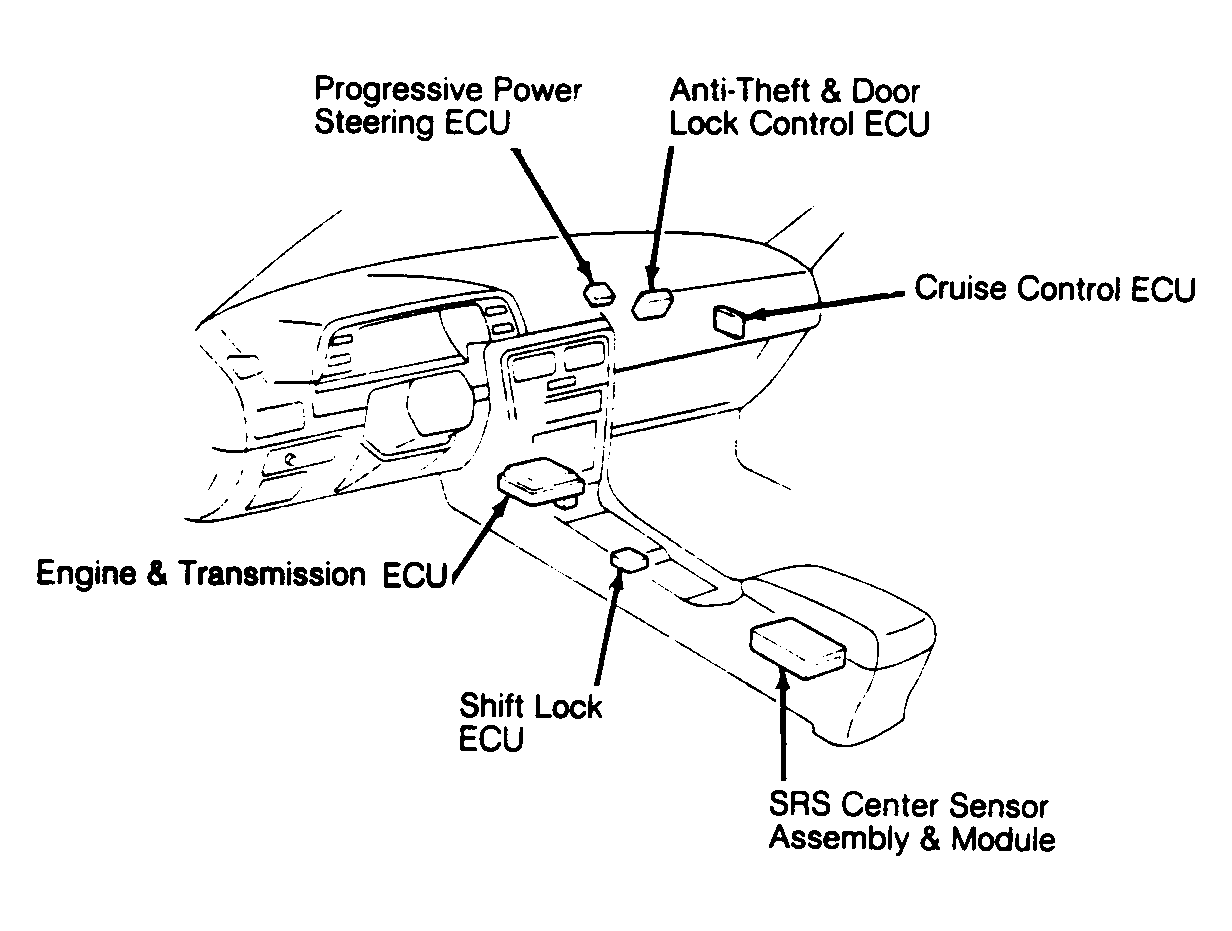

| Location of Electronic Control Units | Behind center of dash. See Figure. | ||

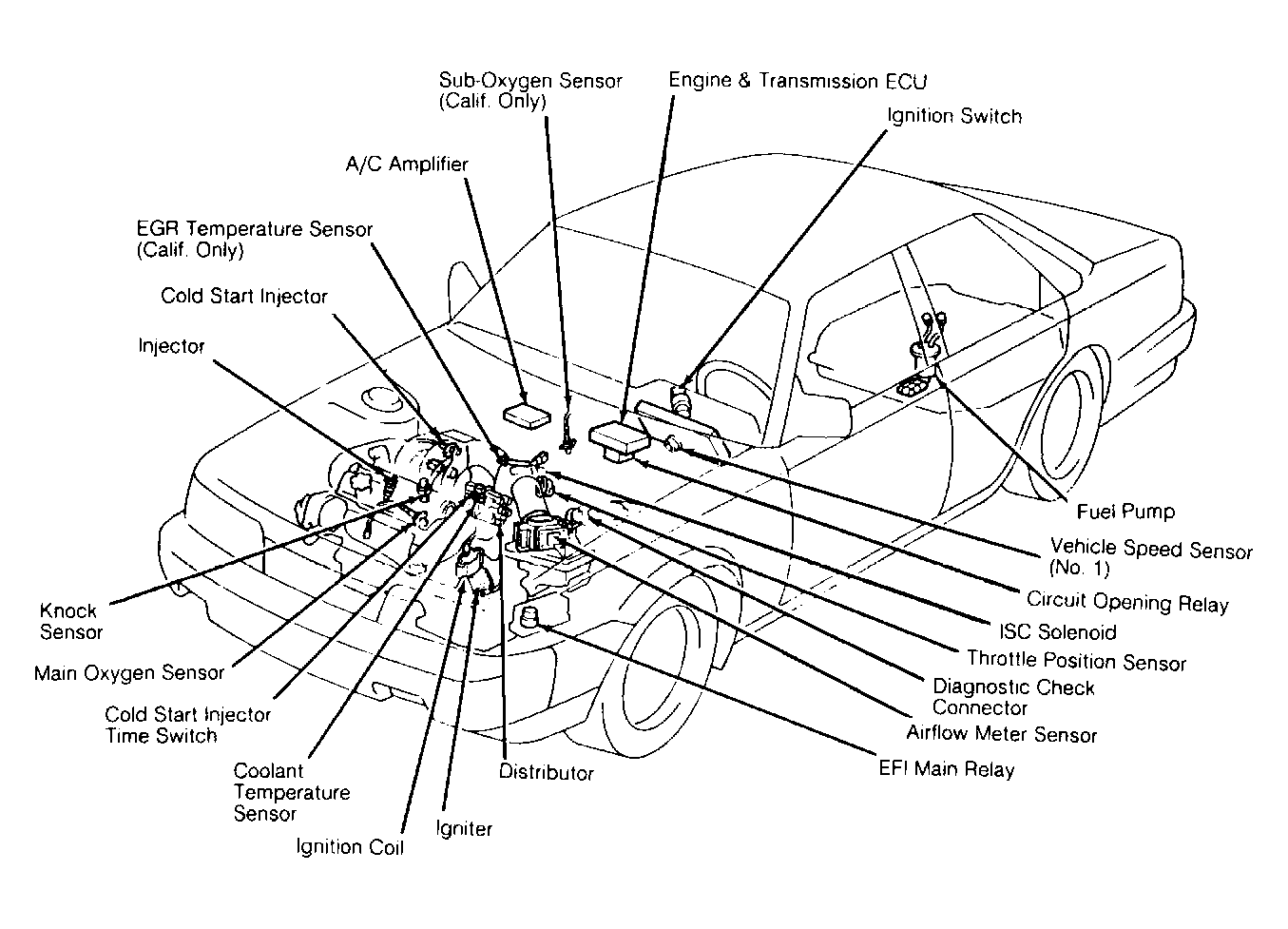

| Electronic Control System | Behind center of dash. See Figure. | ||
| Progressive Power Steering | Behind center of dash. See Figure. | ||
| Shift Lock (A/T) | Under console, behind shift lever. See Figure. | ||
| Transmission | |||
| Location of Electronic Control Units | Behind center of dash. See Figure. | ||
| Electronic Control System | Behind center of dash. See Figure. | ||
| SRS Module | |||
| Location of Electronic Control Units | Under center console, between front seats. See Figure. | ||

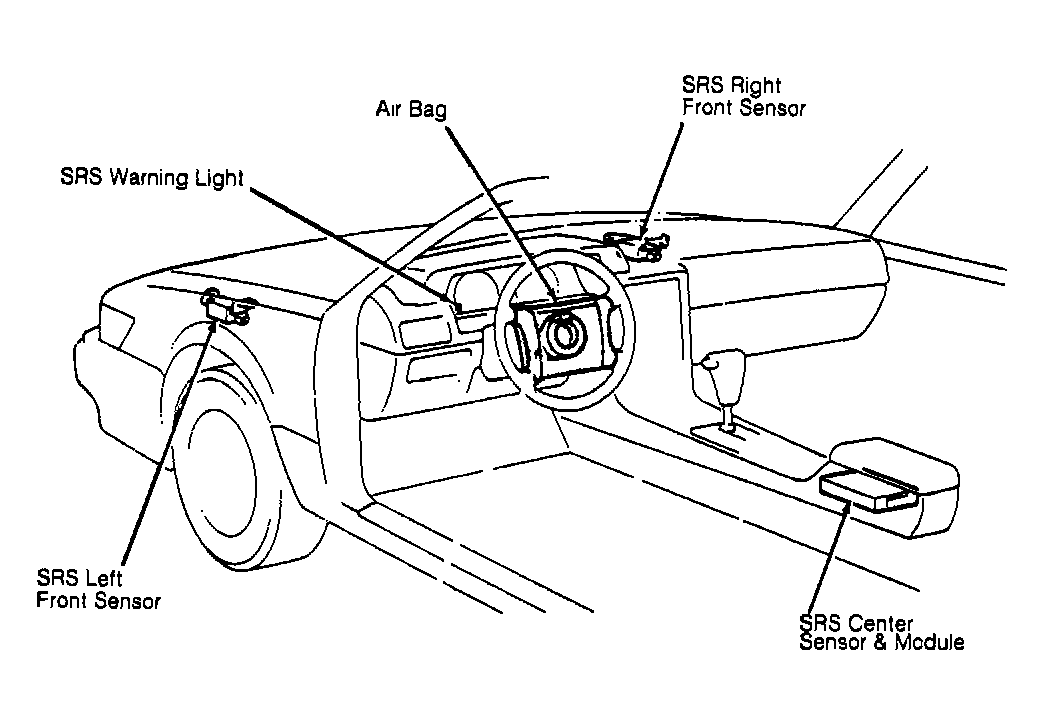

| View of SRS Components | Under center console, between front seats. See Figure. | ||
