Bulb Check Relay Test

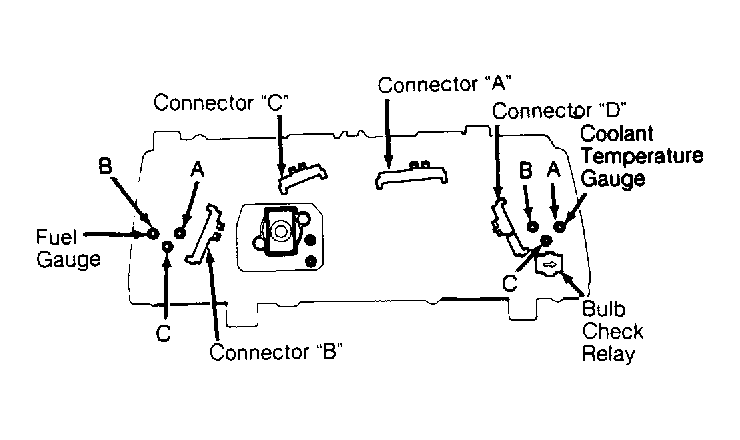

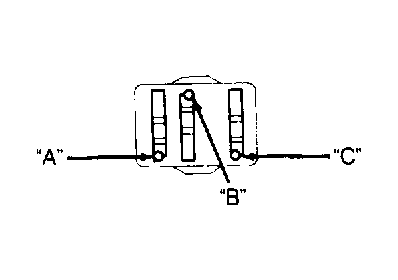

Connect negative battery terminal to terminal "B" of bulb check relay located on rear of instrument panel. See Figure. Connect positive battery terminal through a 1.4-watt test bulb to terminal "C". Touch positive lead to terminal "A". If test bulb does not light, replace bulb check relay.
