Power Seat Control System — 1991 Lexus ES 250 Standard Service Manual ~ LEMON Manuals

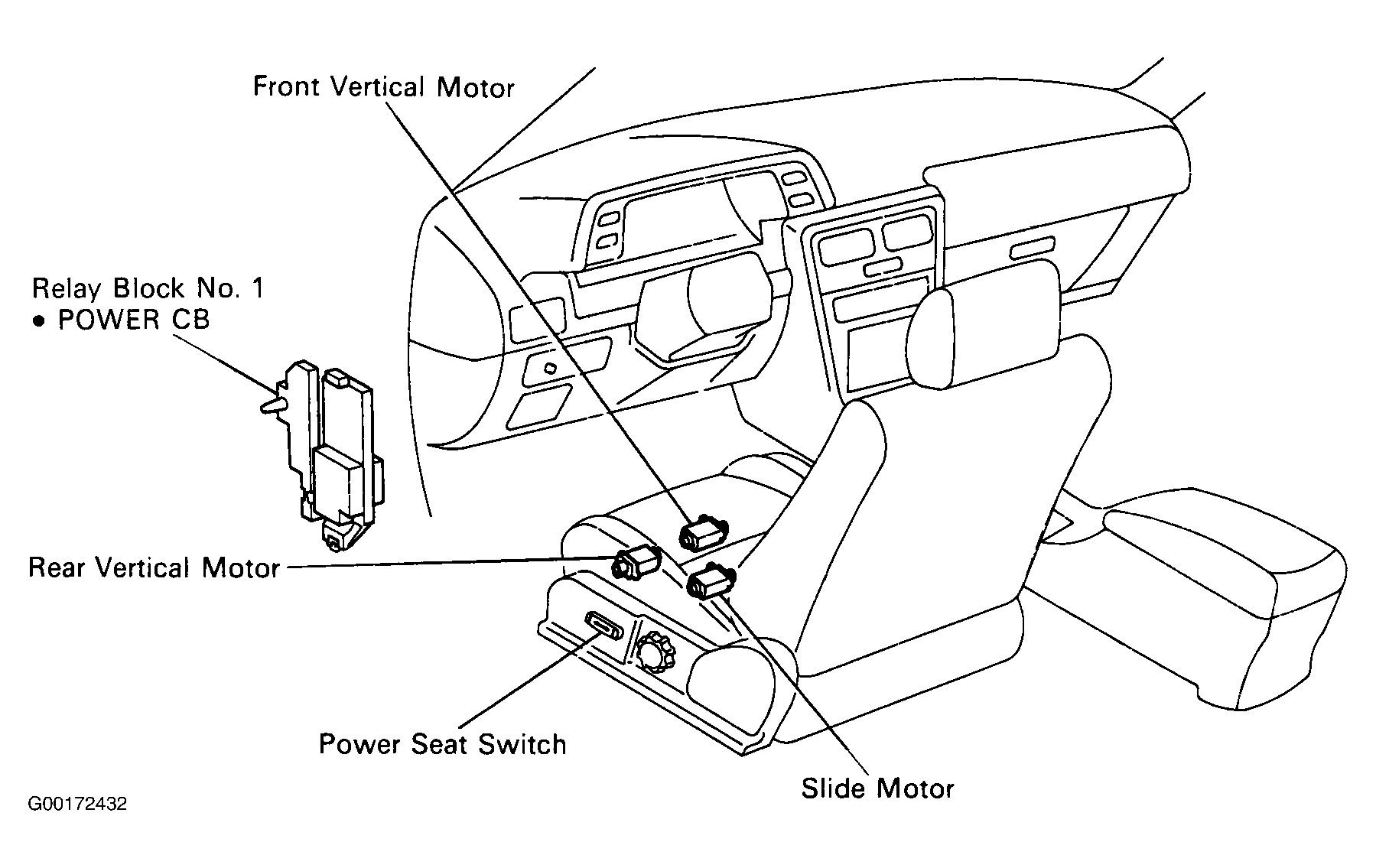

Fig 1: Locating Power Seat Electrical Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

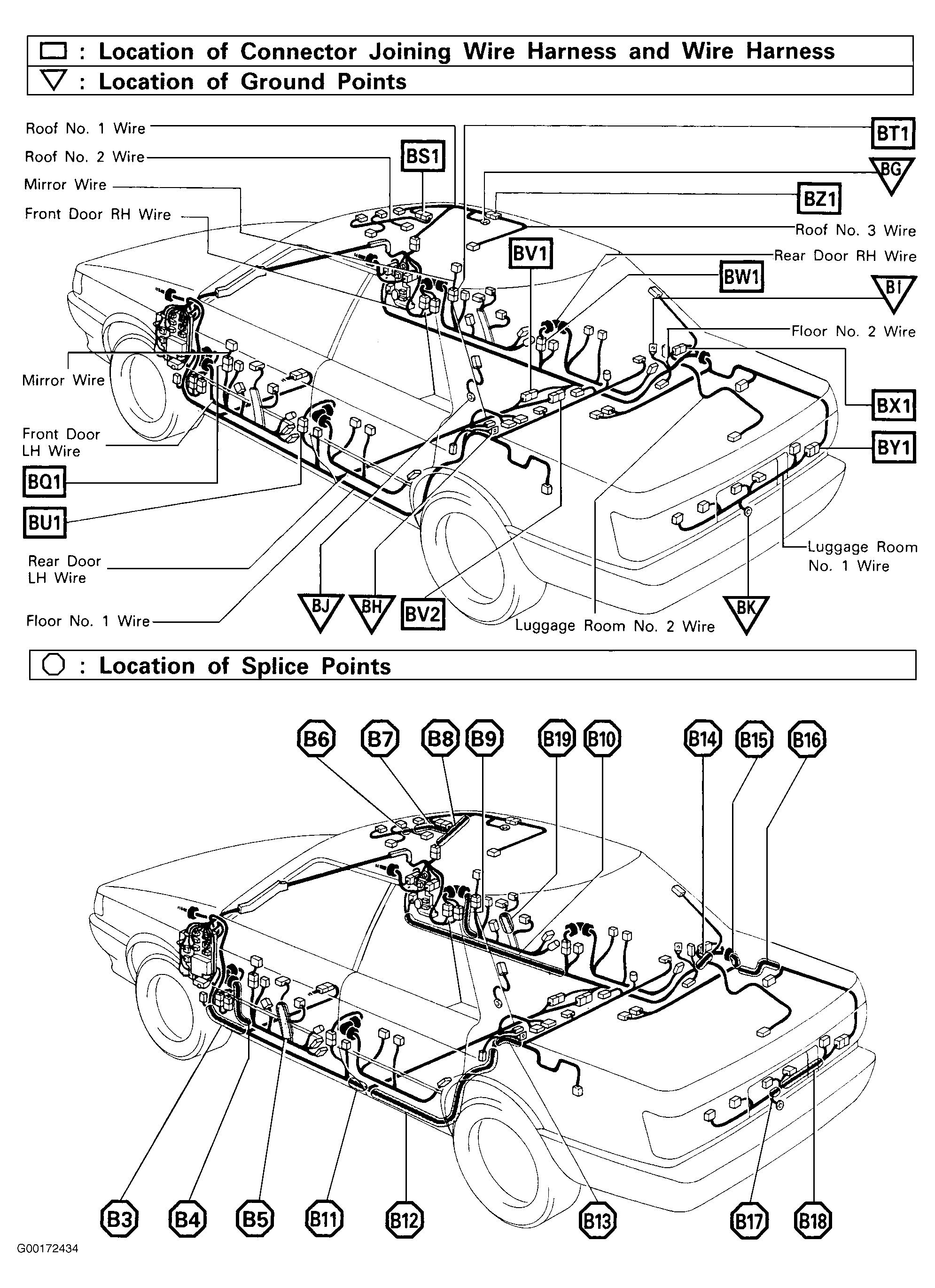

Fig 2: Locating Ground Point BH

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

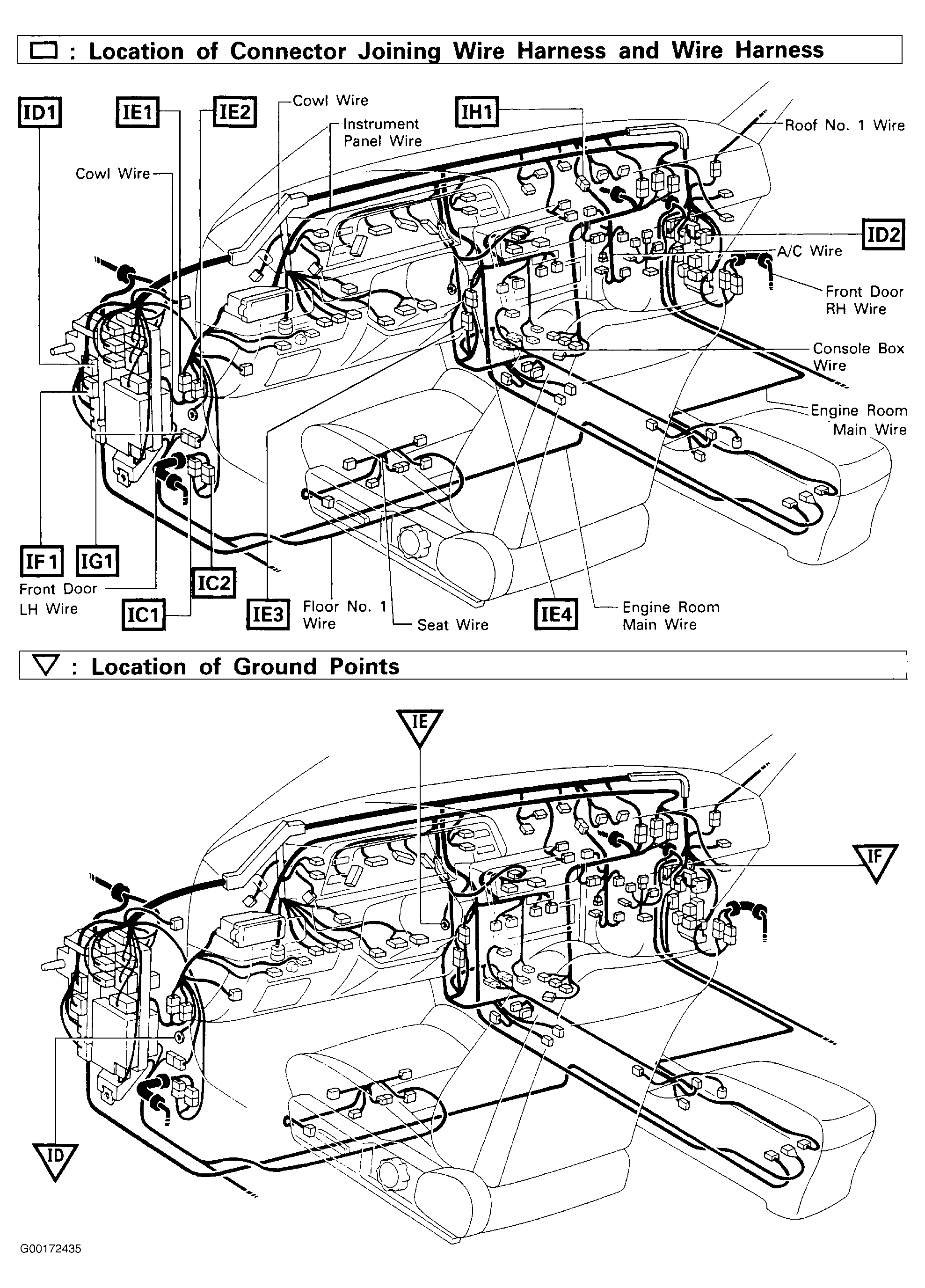

Fig 3: Locating Connector IF1

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

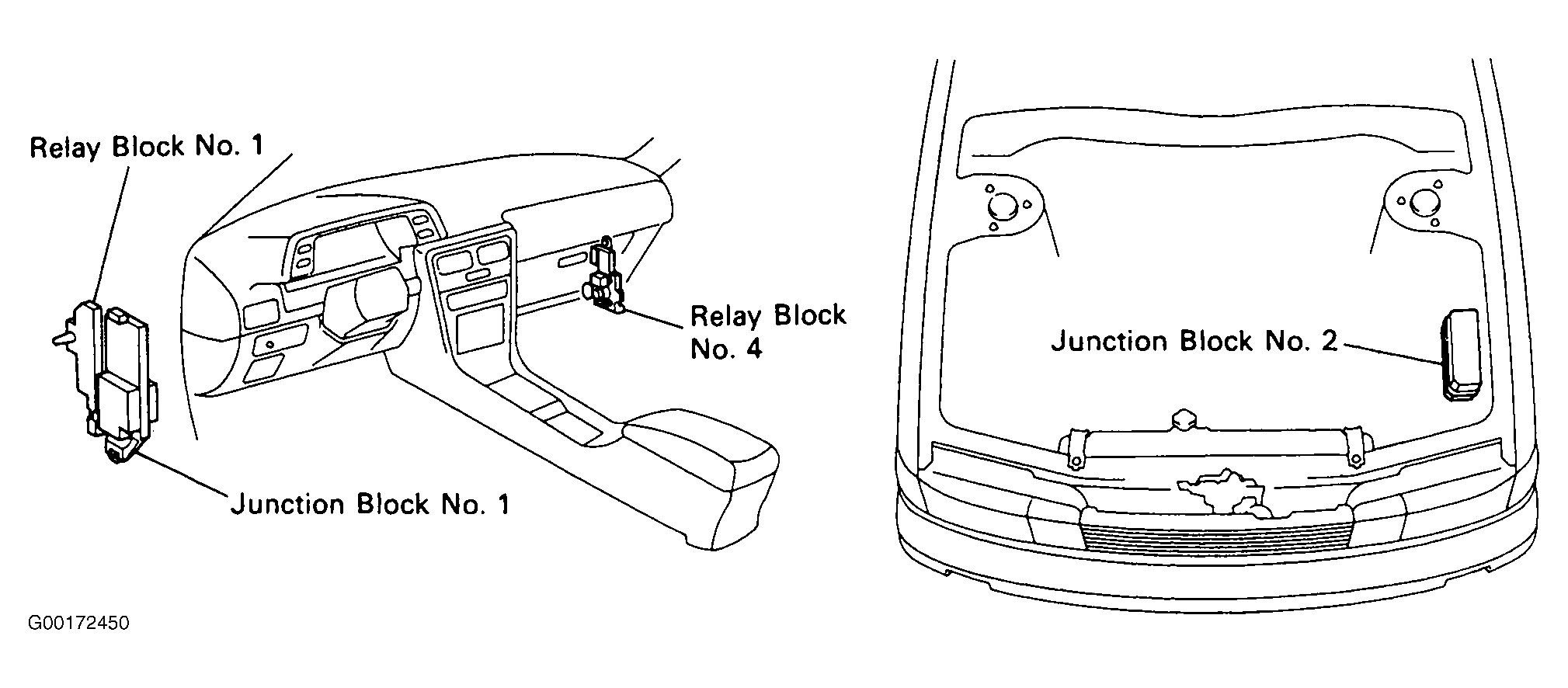

Fig 4: Locating R/B No. 1, R/B No. 4, J/B No. 1, J/B No. 2

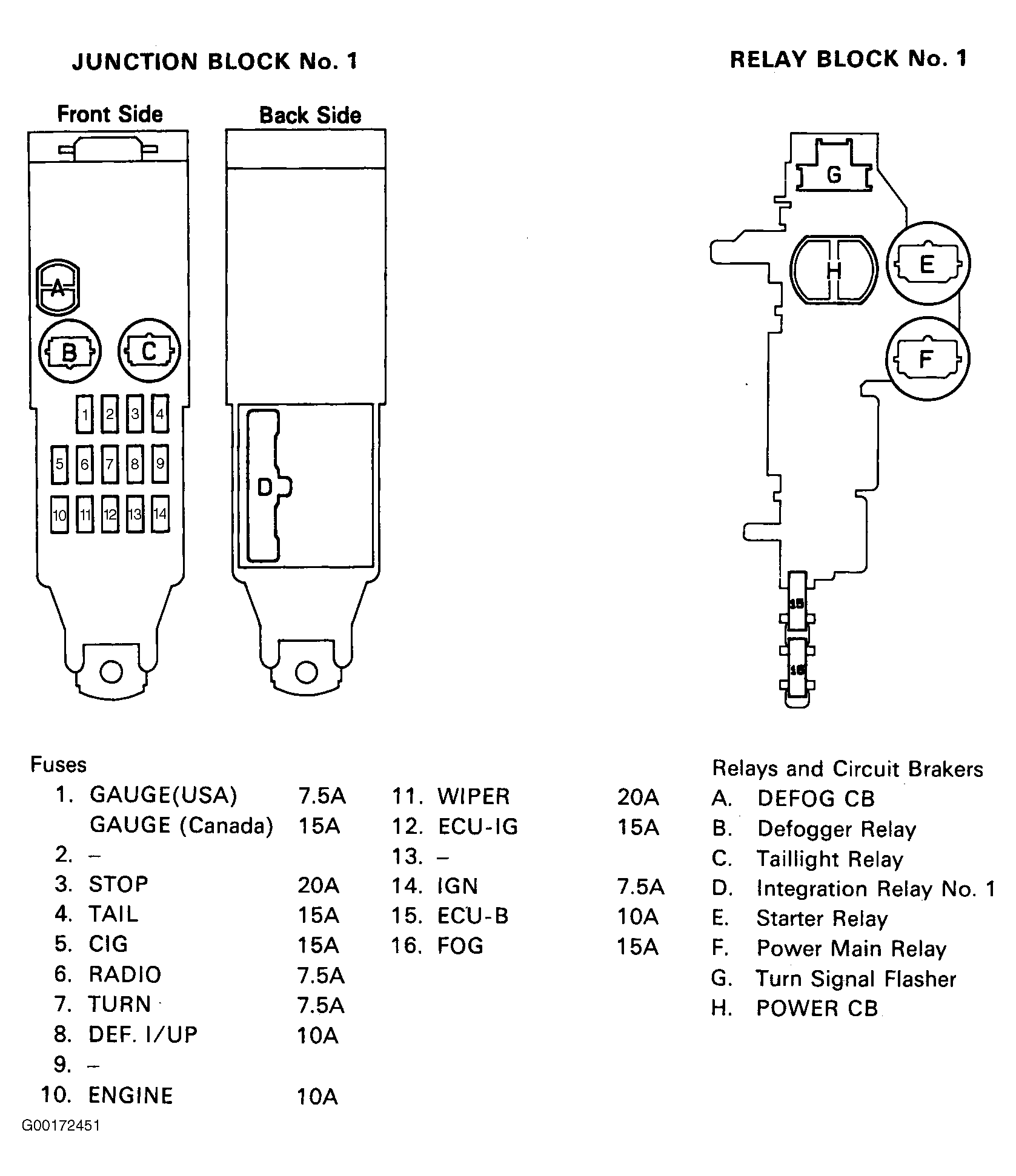

Fig 5: Locating J/B No. 1 & Relay Block No. 1 Components
