Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | |
|---|---|---|
| Circuit Breakers | ||
| Defogger | In fuse/relay block, behind left kick panel. | |
| Power Window | In fuse/relay block, behind right kick panel. | |
| Sun Roof | In fuse/relay block, behind left kick panel. | |
| Cooling Fan Fusible Link (30A) | In engine compartment fuse/relay block. | |
| EFI Fuse (20A) | In engine compartment fuse/relay block. | |
| Fuse/Relay Block | ||

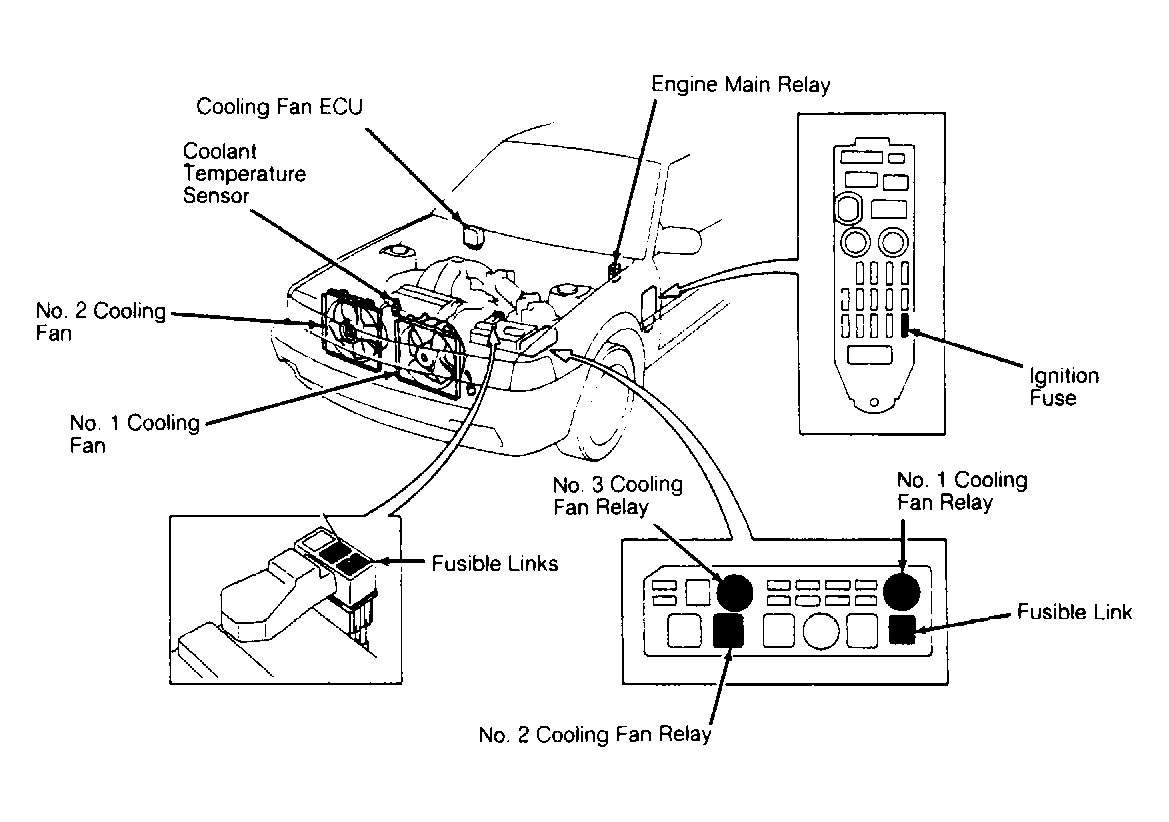

| Engine Compartment | On left front of engine compartment, near battery. See Figure. | |
| Passenger Compartment | Behind left and right side kick panel. See Figure. | |
| Fusible Links | On battery positive post. See Figure. | |
| Ignition Fuse (7.5A) | In passenger compartment fuse/relay block. See Figure. | |
