Back Up Power Source Circuit

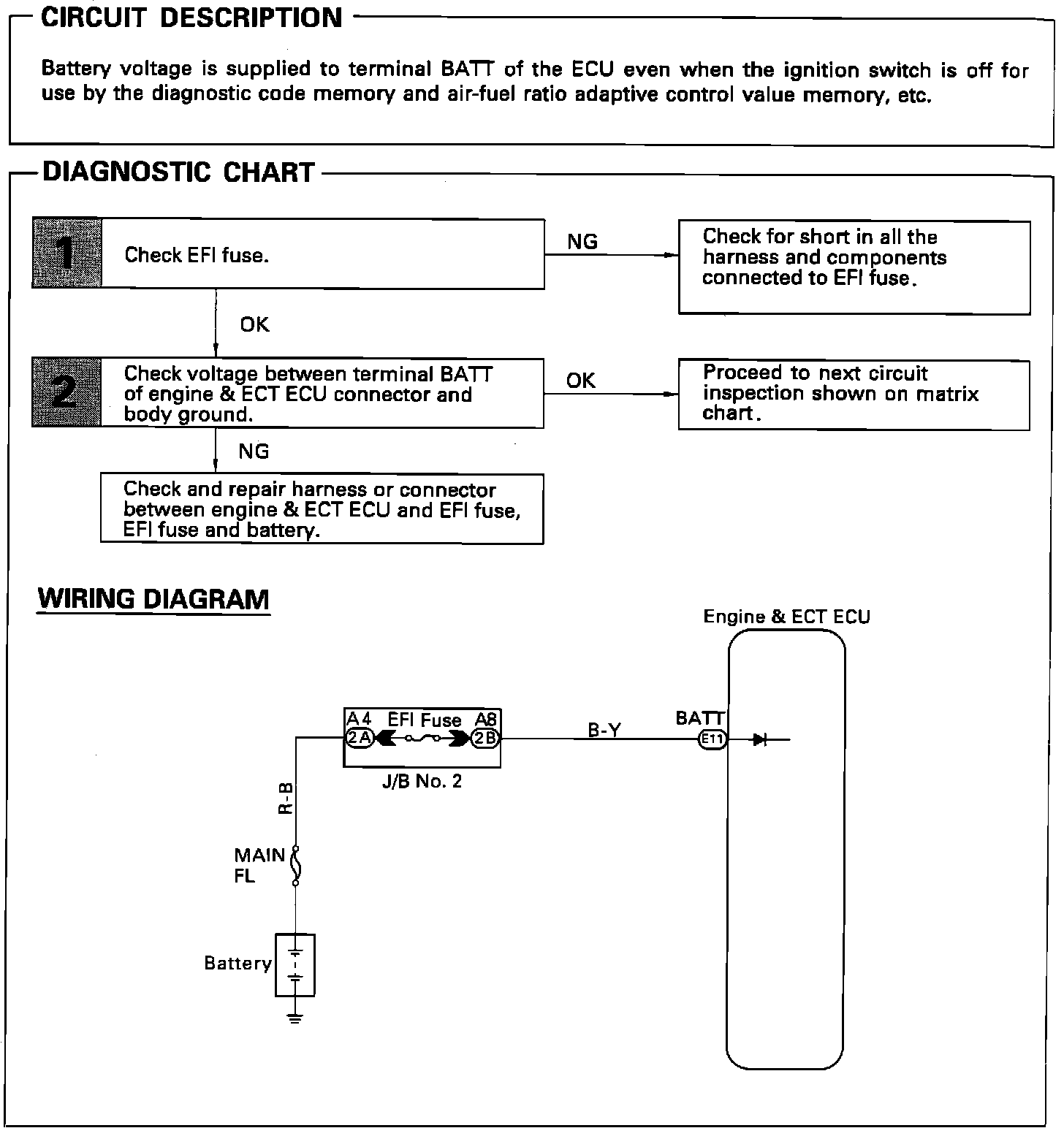

Fig. 35 Back-up Power Source Diagnosis (Part 1 Of 2):

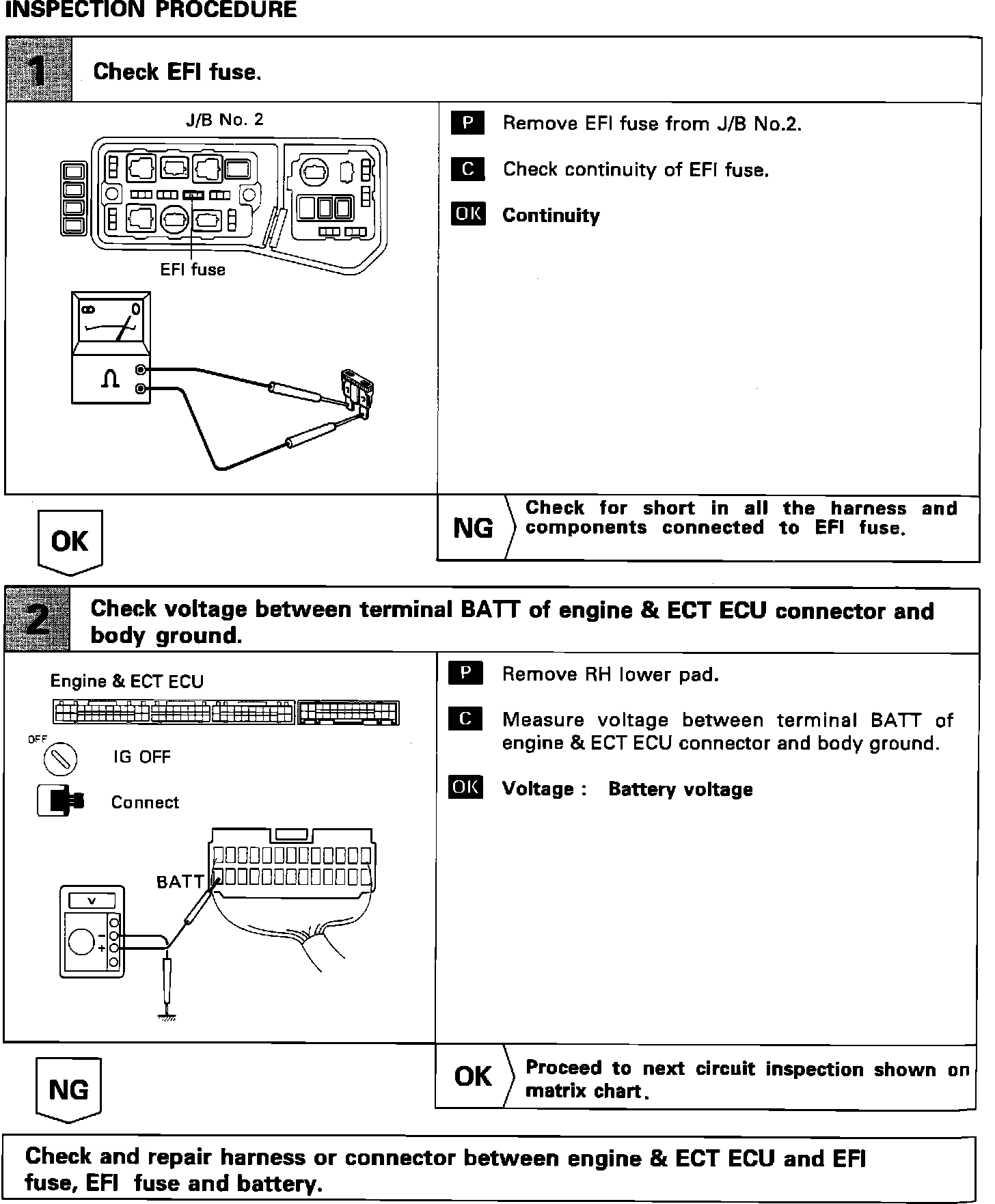

Fig. 35 Back-up Power Source Diagnosis (Part 2 Of 2):
