Mirror Defogger Switch Test

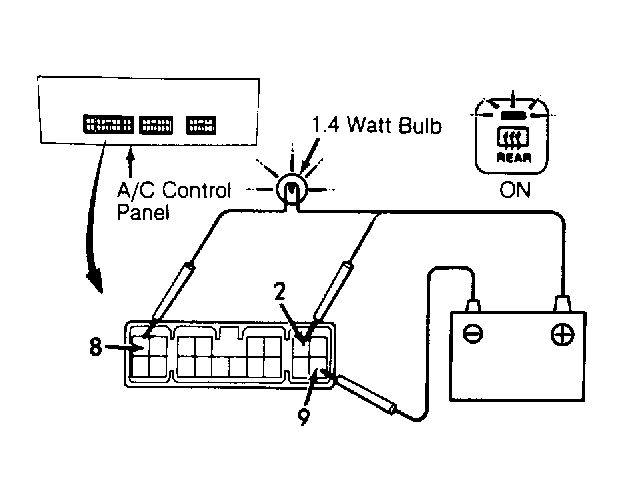

Connect battery voltage to terminal No. 2 and ground to terminal No. 9. See Fig 1. Connect 1.4-watt test light between terminals No. 2 and 8. Place switch in ON position. Ensure test light lights for 12-18 minutes and then goes out. If switch does not operate as specified, replace A/C control panel assembly.
