Codes 41 & 47: Throttle Position Sensor (TPS) Signal

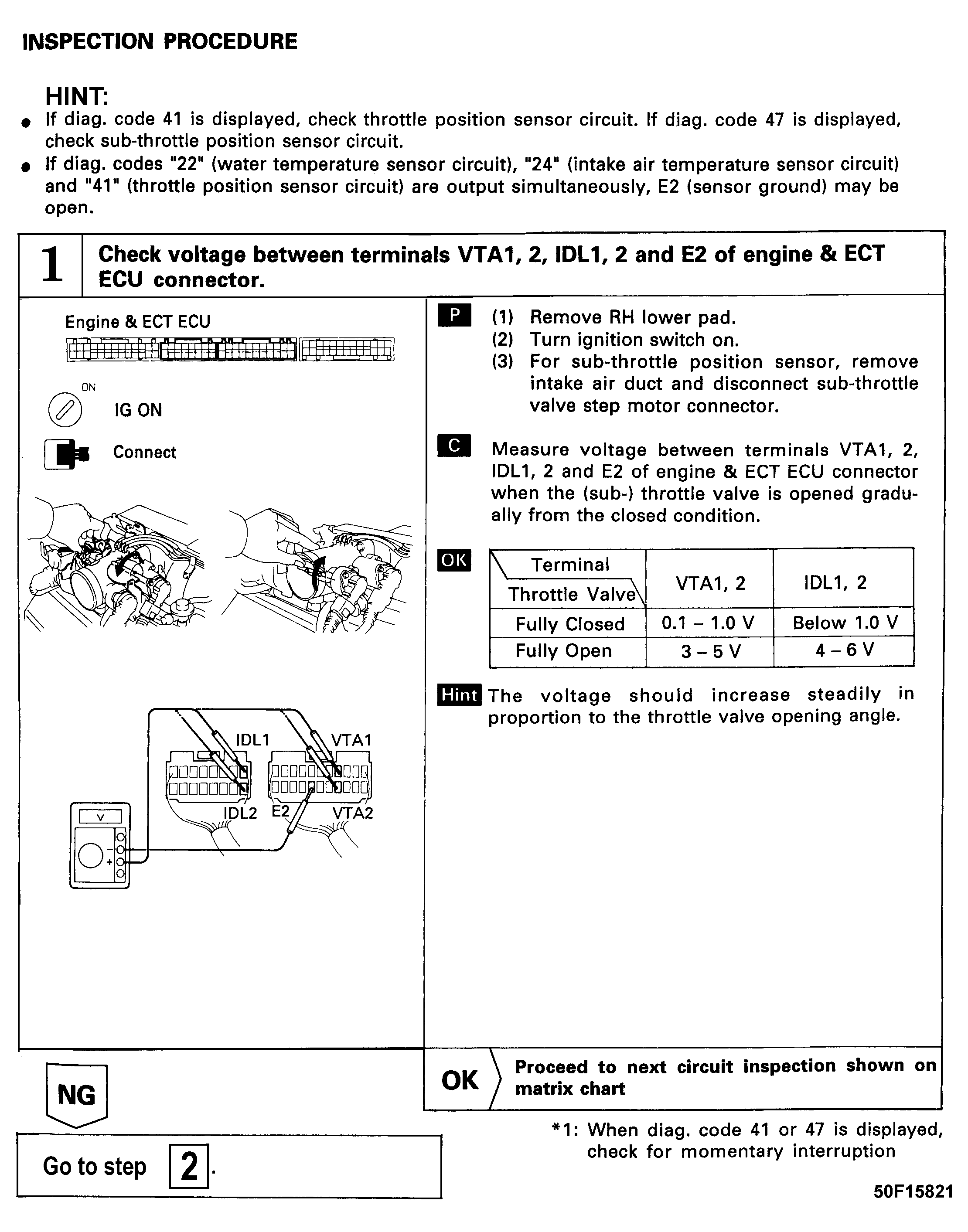

Fig 1: Codes 41 & 47: TPS Sensor & Sub TPS Signal Chart (1 of 2)
G50F15821Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Codes 41 & 47: TPS Sensor & Sub TPS Signal Chart (2 of 2)
G90A18945Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
