A/C Compressor Lock Sensor Circuit Gold Terminals (AC91-008)
Publication date: 1991-08-09Reference number: AC91-008
A/C COMPRESSOR LOCK SENSOR CIRCUIT GOLD TERMINALS
TECHNICAL SERVICE BULLETIN
Reference Number(s): AC91-008, Date of Issue:
August 9, 1991
| COPYRIGHT: | © 2018 Lexus, a division of Toyota Motor Sales, USA License Agreement TMS1002 |
GOLD PLATED TERMINAL FOR A/C COMPRESSOR LOCK SENSOR CIRCUIT
Model Lexus LS400
Group Electrical
Bulletin No. 008
Date August 9, 1991
SERVICE INFORMATION

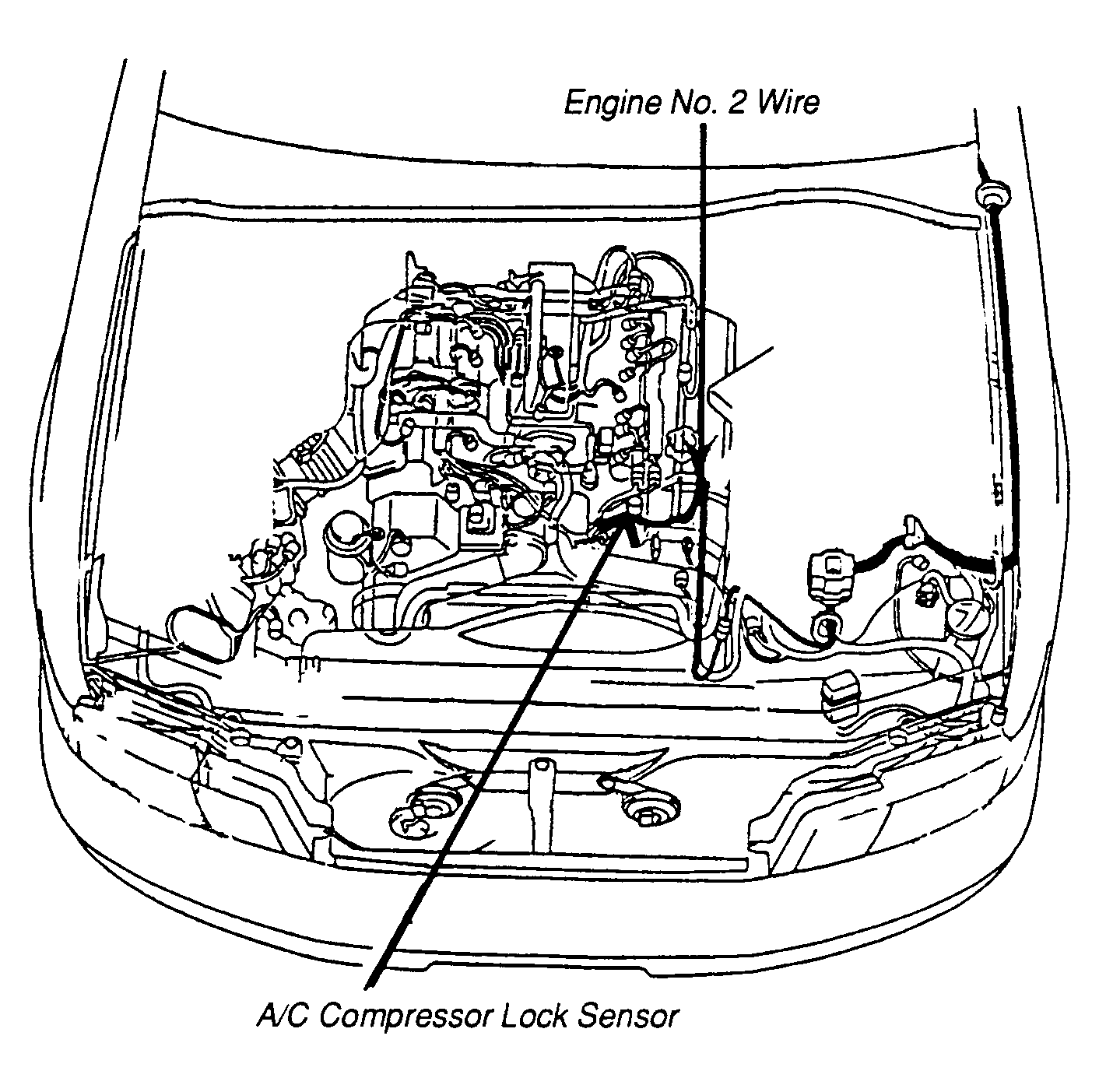

Gold plated terminals have been adopted for the A/ compressor Lock Sensor Circuit to increase terminal contact integrity.
PART NUMBER INFORMATION
| Part No. | Production Date | Description |
|---|---|---|
| 82122-50010 | 2/89 to 5/90 | Wire, Engine No. 2 |
| 82122-50011 | 5/90 - Present | Wire, Engine No. 2 |
| 88336-50010 | 2/89- Present | A/C Compressor Lock Sensor |
A running change to gold plated connectors occurred 12/89. The part numbers remain unchanged.
SERVICE HINT
CAUTION:
It is not advisable to intermix terminals with dissimilar metals when repairing or replacing the No. 2 Engine Wire Harness or A/C Compressor Lock Sensor as electrolytic corrosion may occur. Identify the materials used on the terminals in order to determine if the parts are to be replaced as a set.
