Wireless Door Lock Control System
NOTE:
Trouble shooting the wireless door lock control system is based on the premise that the door lock control system is working normally. Accordingly, before trouble shooting the wireless door lock control system, first make certain that the door lock control system is working normally.

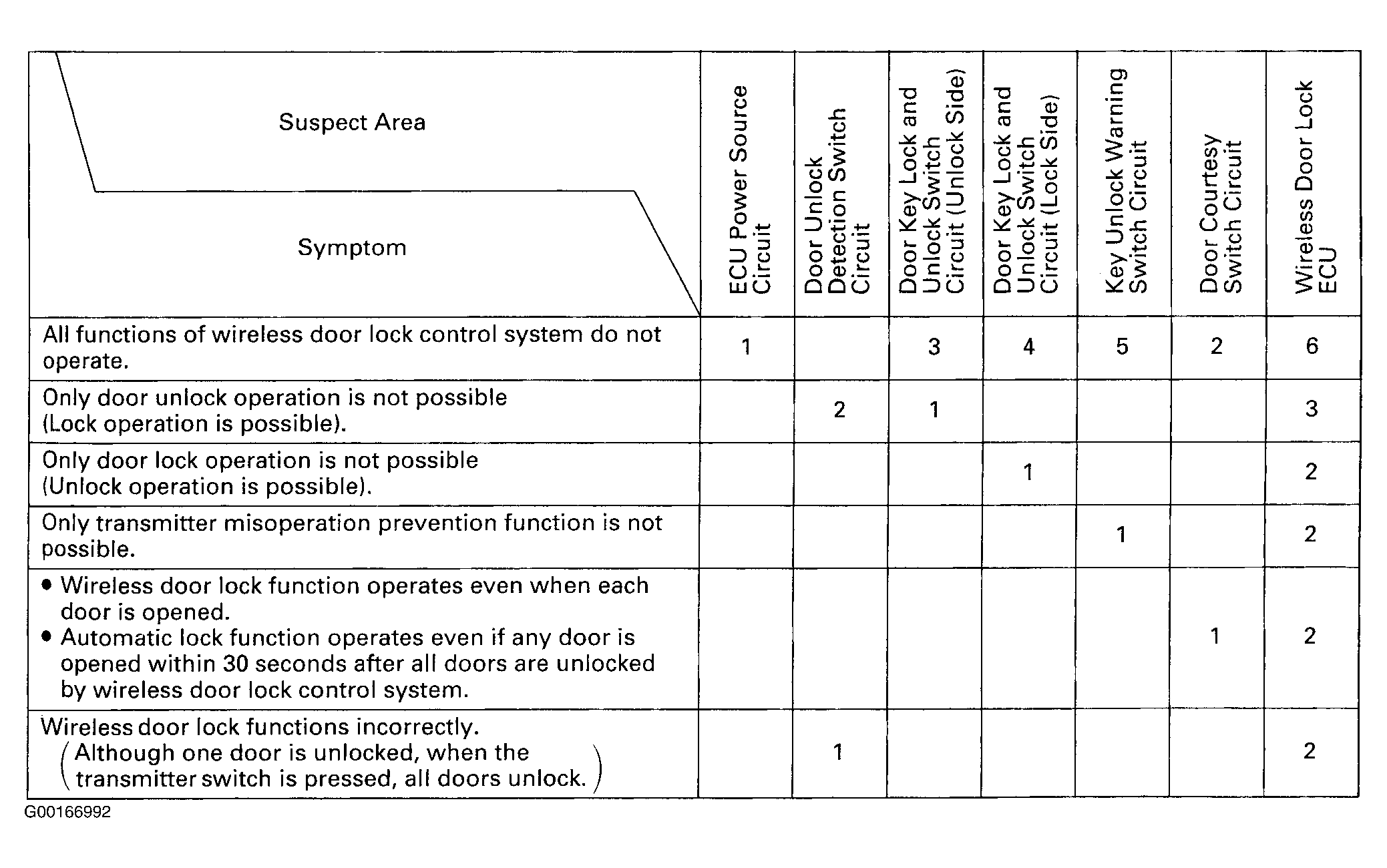

Identify fault in wireless door lock control system. See Fig 1. Perform circuit trouble shooting in the order given in the chart.
Tests listed in Trouble Shooting Wireless Door Lock Control System Chartare located under SYSTEM TESTS . If the fault reappears even though there are no abnormalities in any of the other circuits, then check and replace the wireless door lock control ECU as the last step.
