Trouble Shooting

You will find the cause of trouble more easily by properly using illustration. See Fig 1. The numbers in the illustration indicate the order of priority of the cause of trouble. Check each part in order shown. If necessary, replace the part.

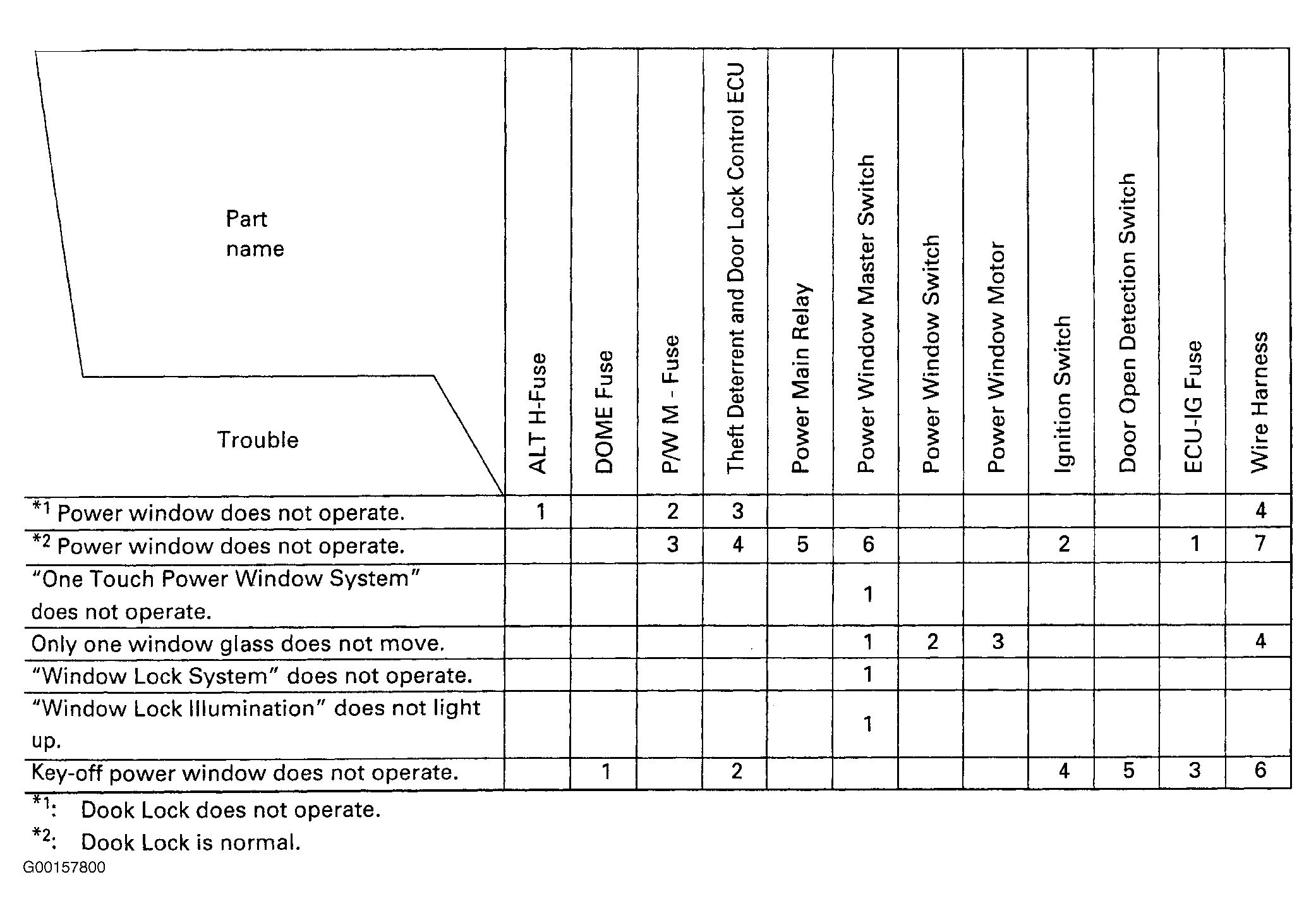

Fig 1: Troubleshooting Table
G00157800Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
