Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location
Fuse/Relay Block

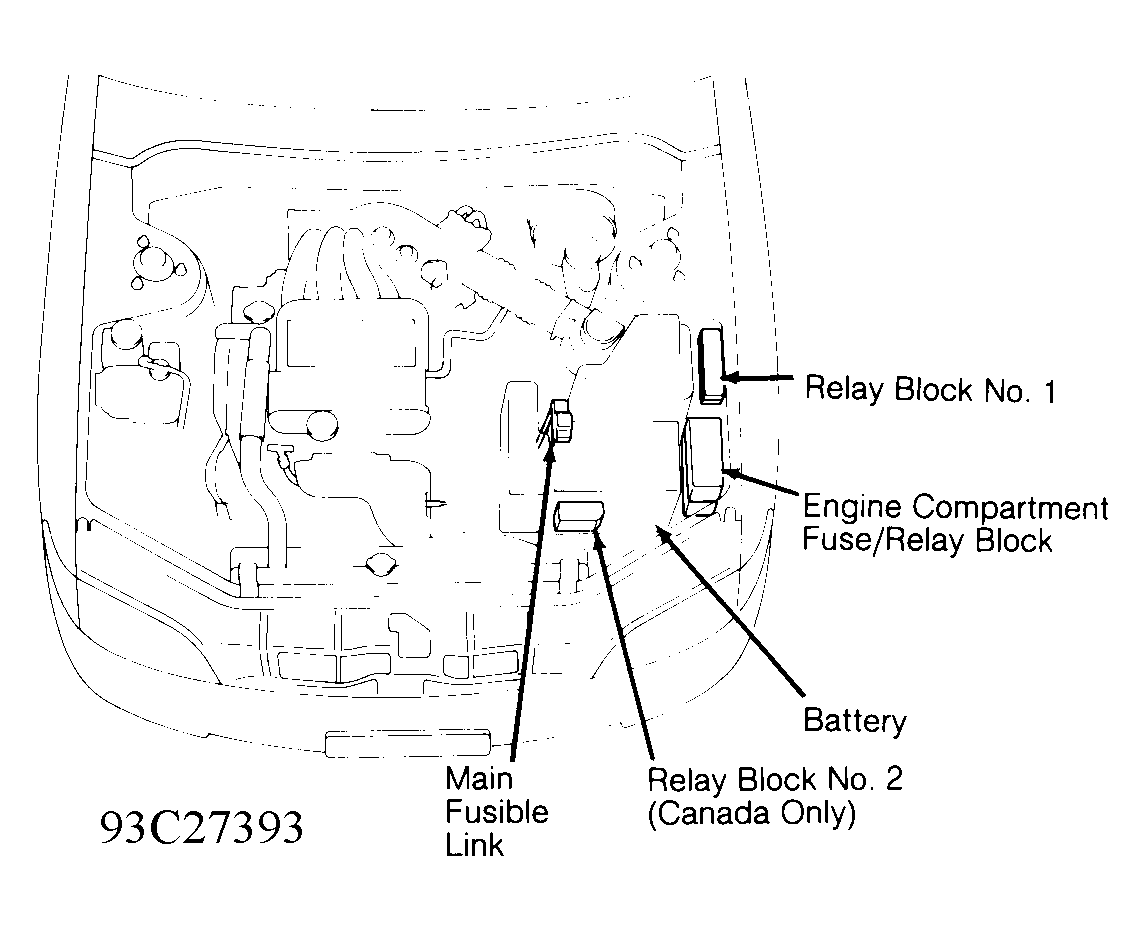

Engine Compartment On left front of engine compartment, beside battery. See Figure.

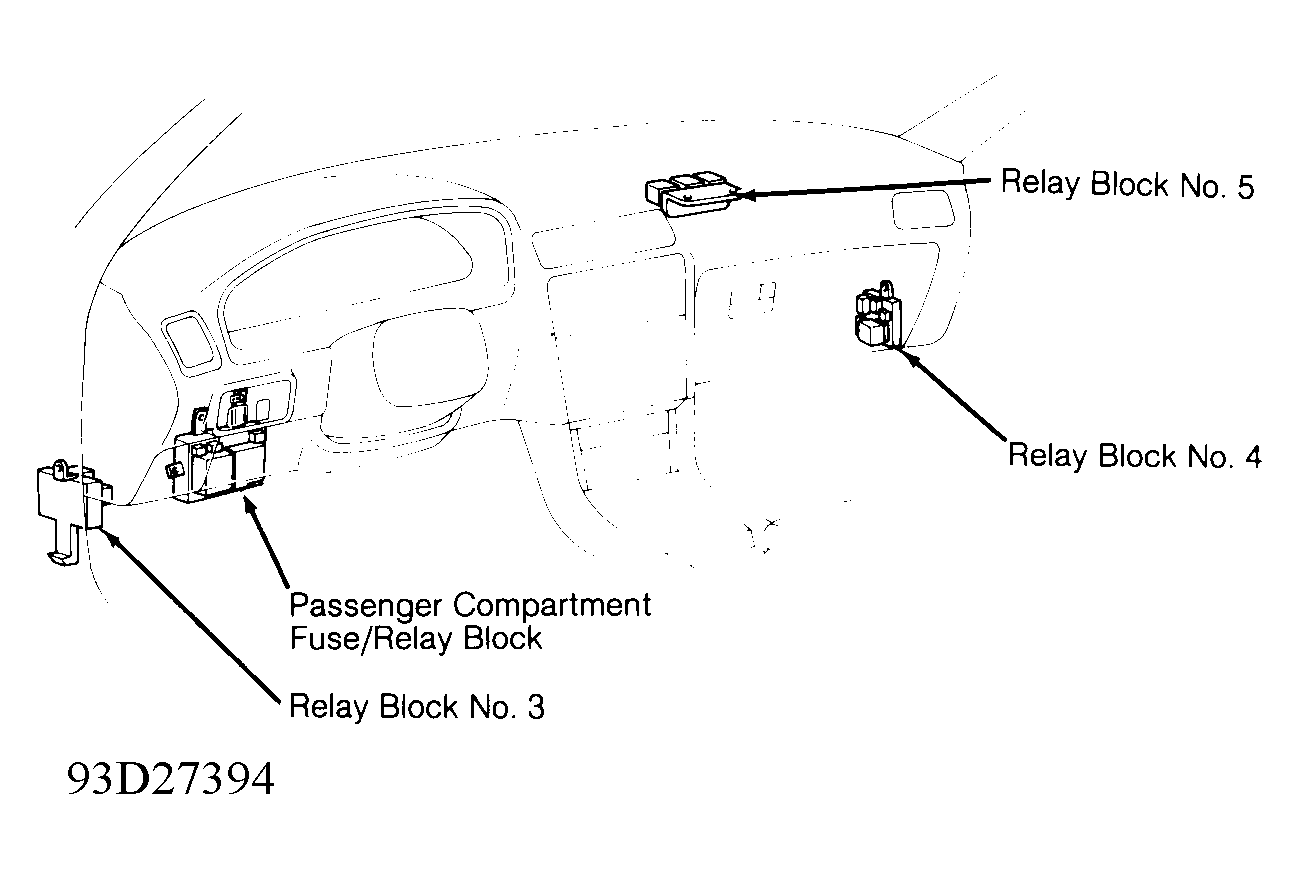

Passenger Compartment Behind left side of dash. See Figure.
Fusible Link (Main) On battery cable positive terminal. See Figure.
Relay Blocks
No. 1 On left front of engine compartment, behind air filter. See Figure.
No. 2 (Canada) On left front of engine compartment, front of battery. See Figure.
No. 3 Above left kick panel. See Figure.
No. 4 Above right kick panel. See Figure.
No. 5 Behind right side of dash, above glove compartment. See Figure.
