Power Window Switch: Continuity

Remove appropriate power window switch. Check continuity between appropriate terminals of power window switch with switch in specified position. See Fig 1. If continuity is not as specified, replace the power window switch.

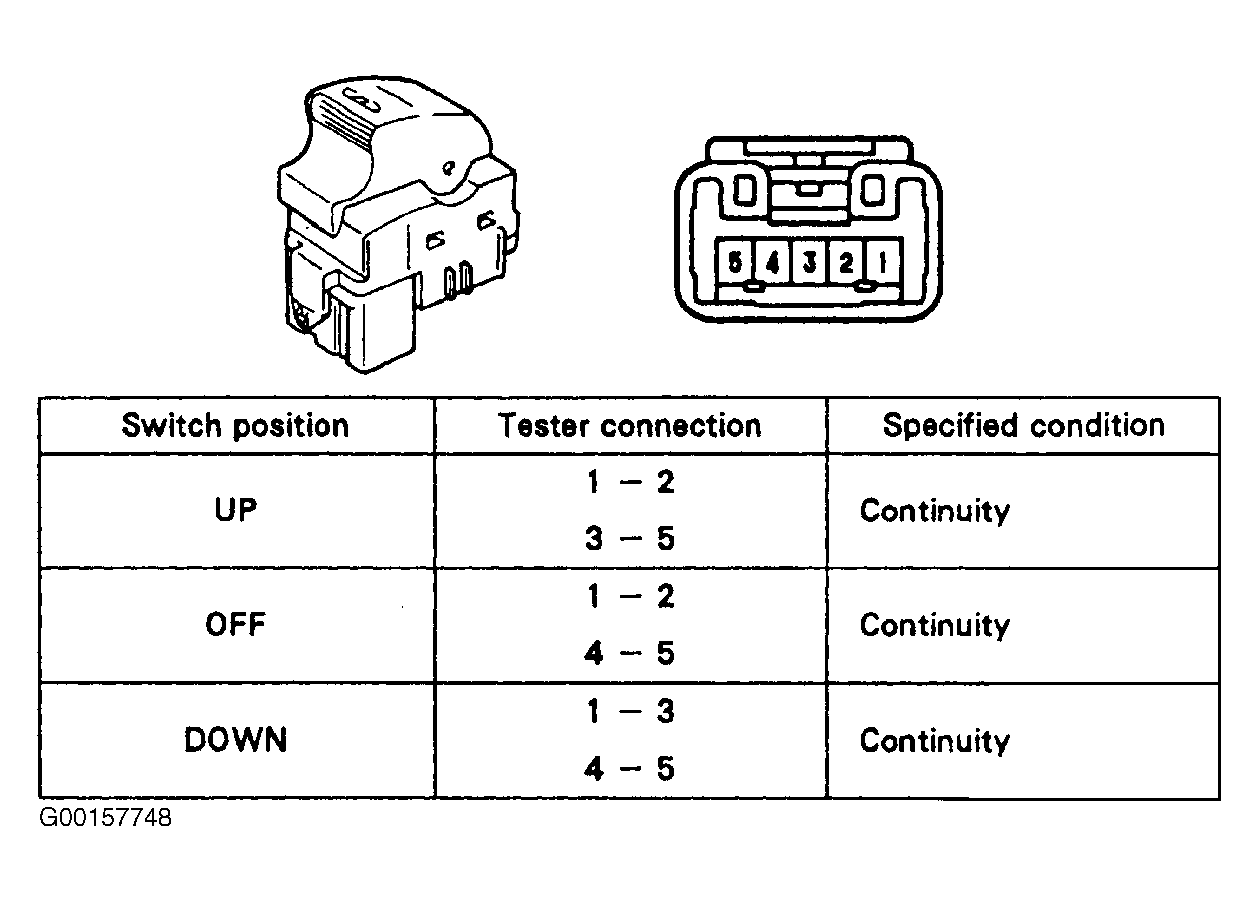

Fig 1: Testing Power Window Switch Continuity
G00157748Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
