Component Locations

COMPONENT LOCATIONS

Component	Location
DOME Fuse	In junction block No. 2
Door Unlock Detection Switches	Part of door lock motors. See Fig 1.
Junction Block No. 2	In left front corner of engine compartment. See Fig 1.
Key Unlock Warning Switch	Near steering column. See Fig 1.
Theft Deterrent & Door Lock Control ECU	Behind right side of instrument panel. See Fig 1.
Wireless Door Lock ECU	In left side of trunk. See Fig 1.

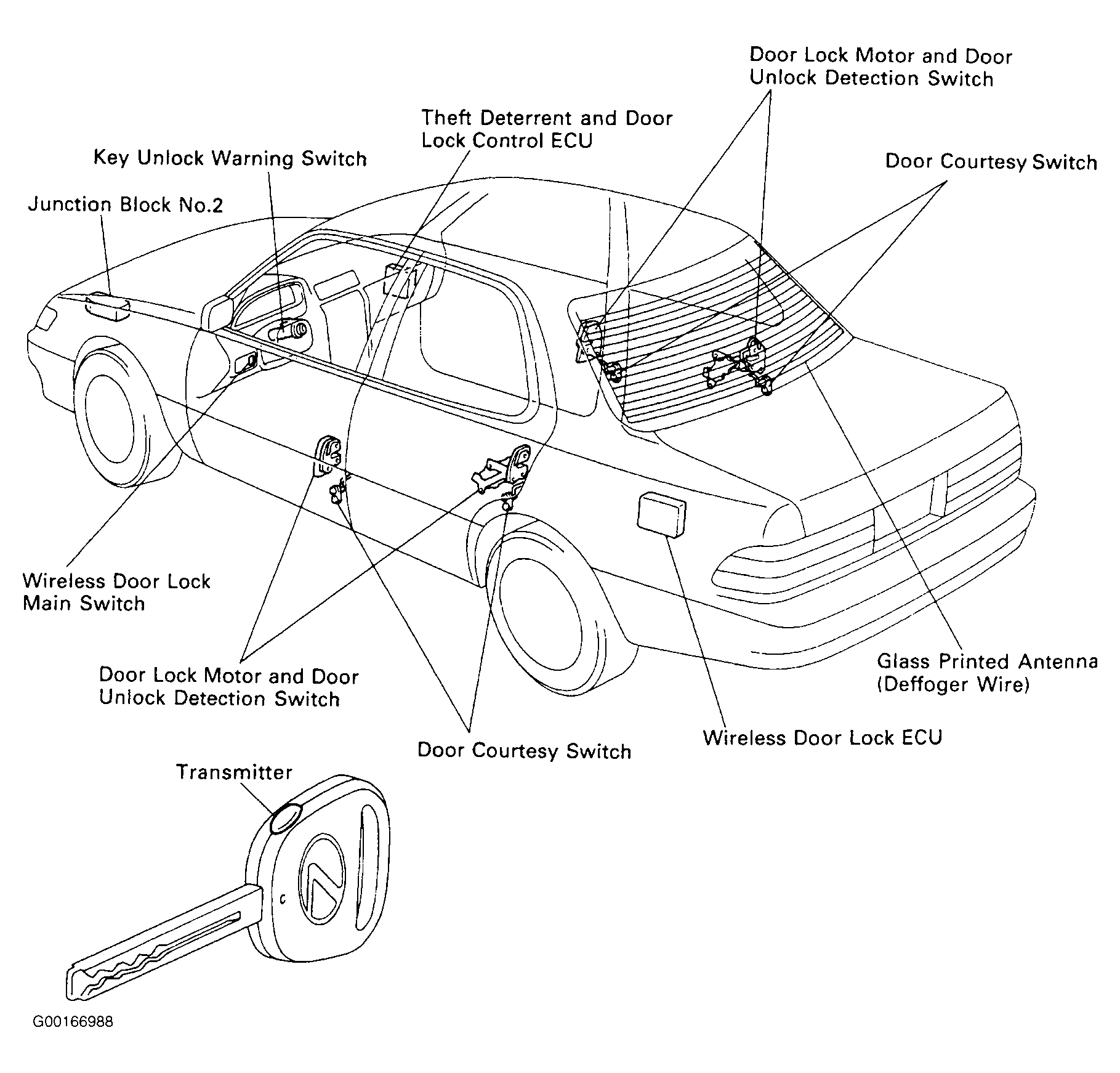

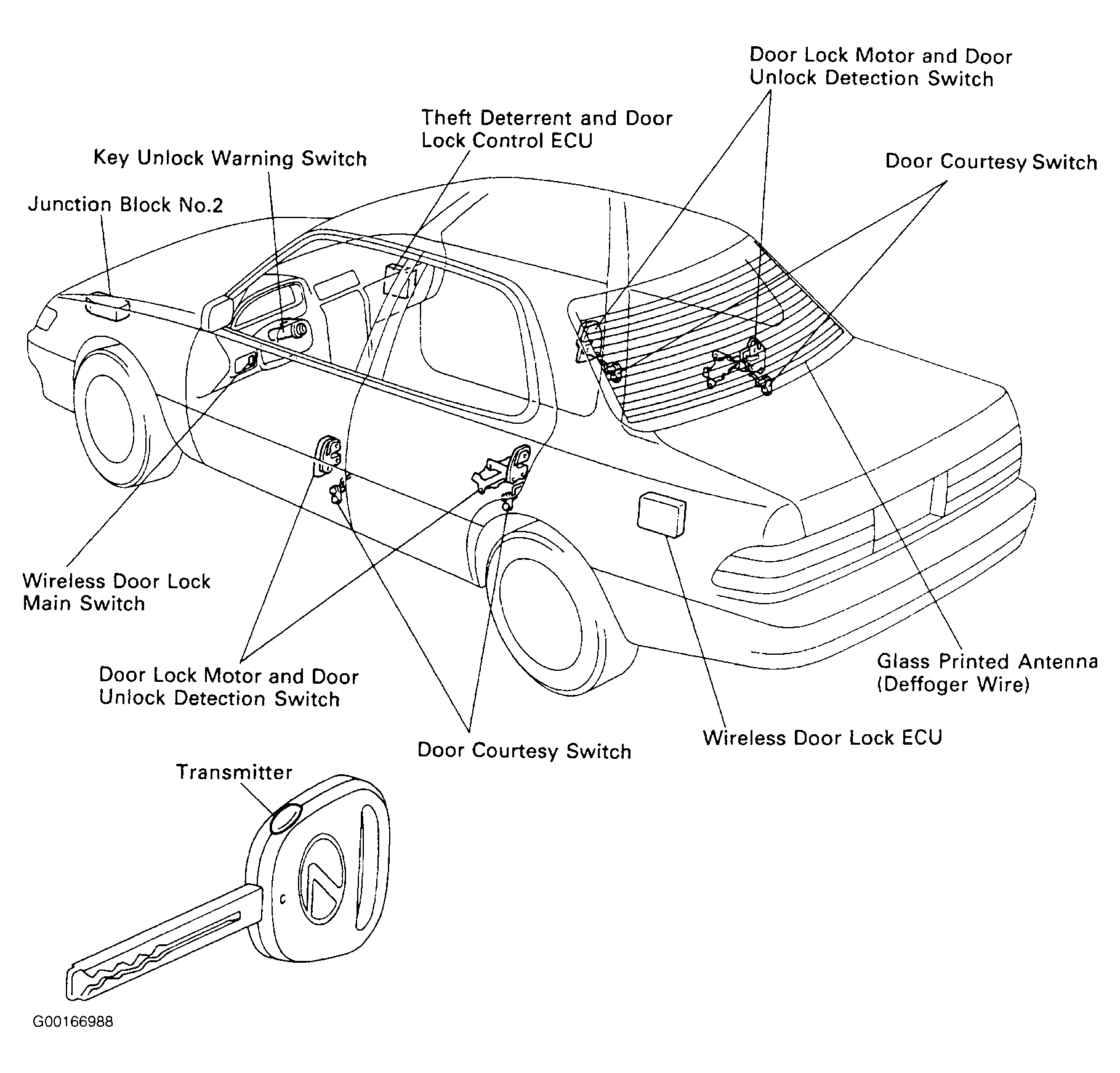

Fig 1: Locating Components Of The Wireless Door Lock Control System (Remote Keyless Entry)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

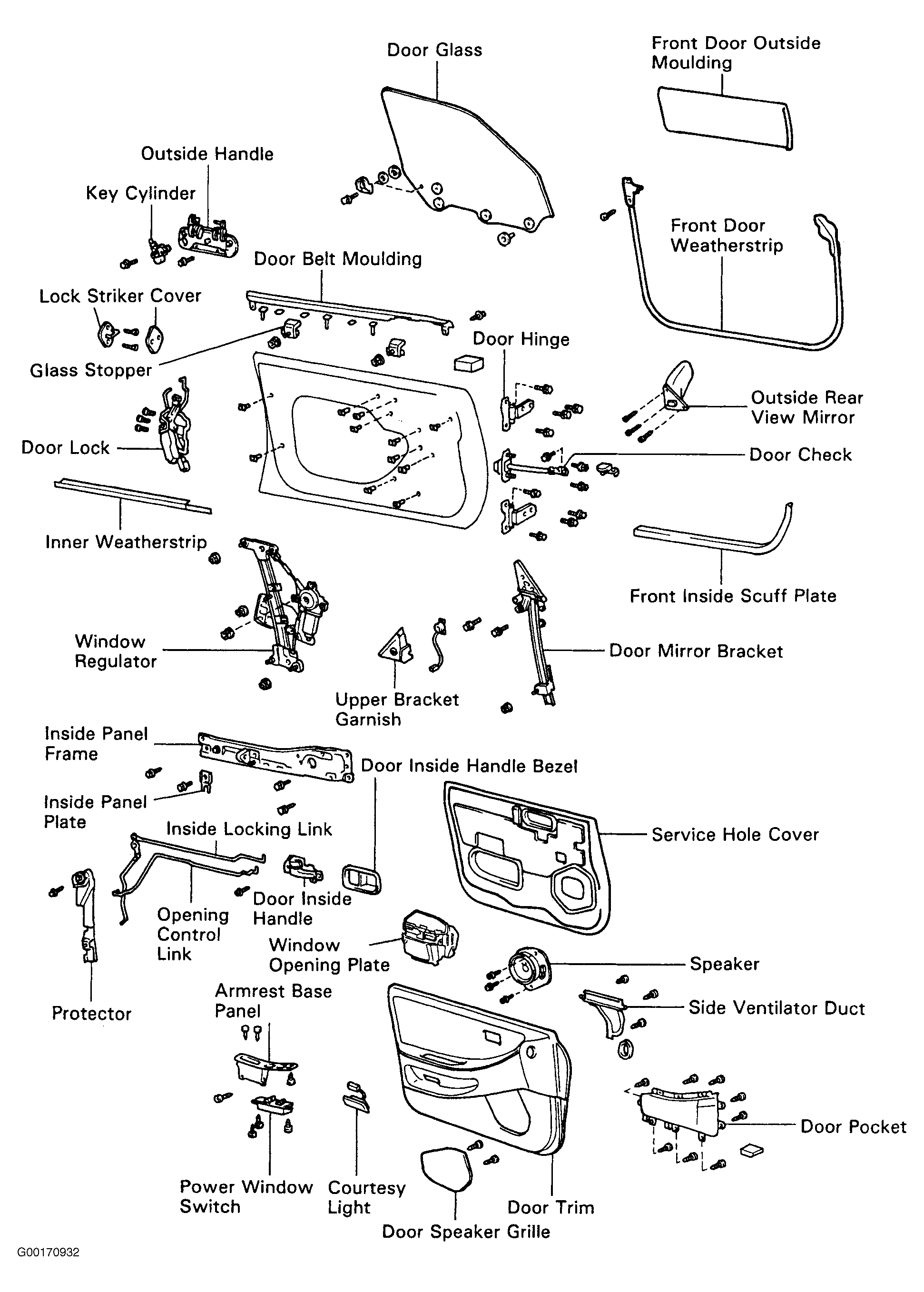

Fig 2: Locating Front Door Lock Components

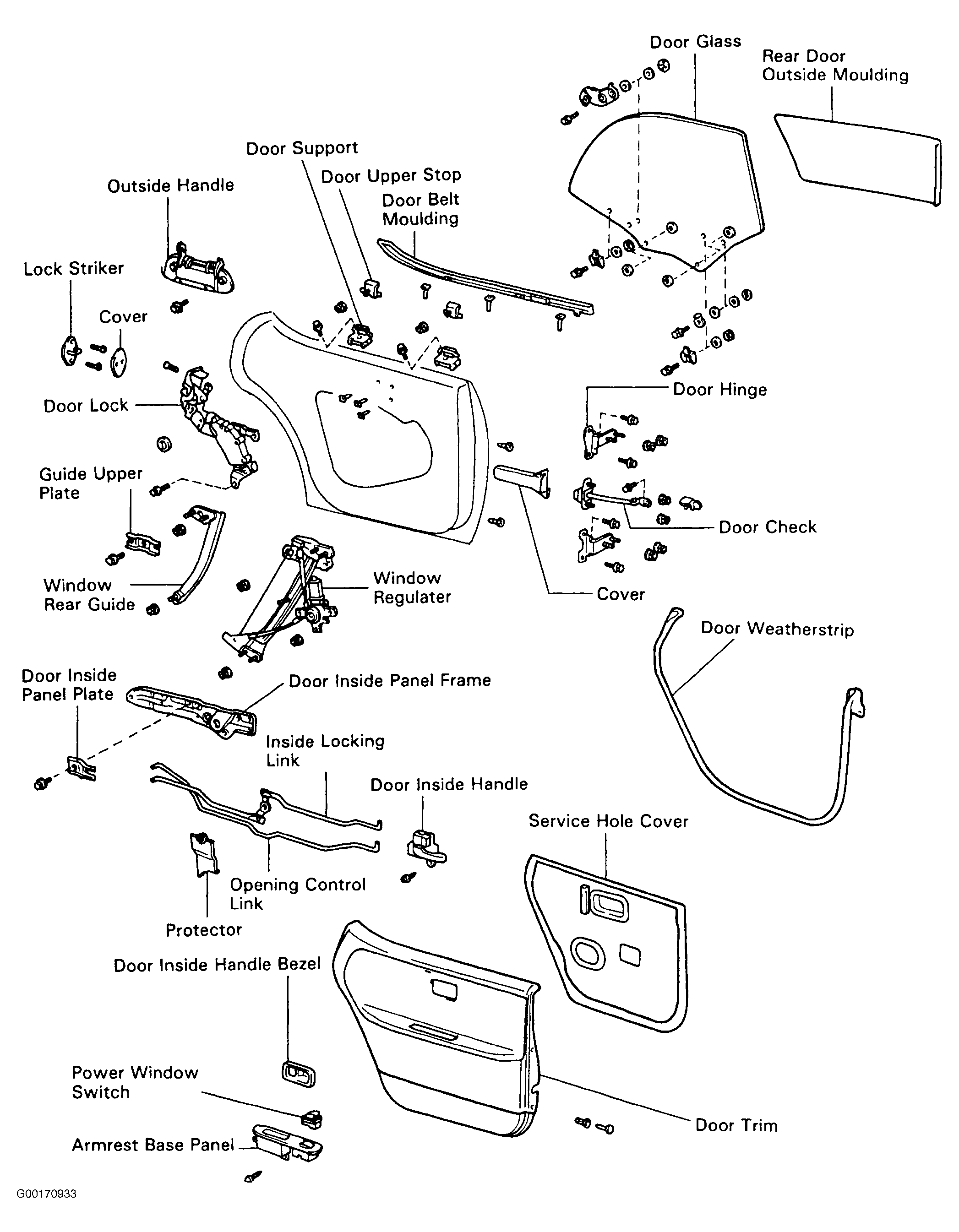

Fig 3: Locating Rear Door Lock Components
