Component Locations

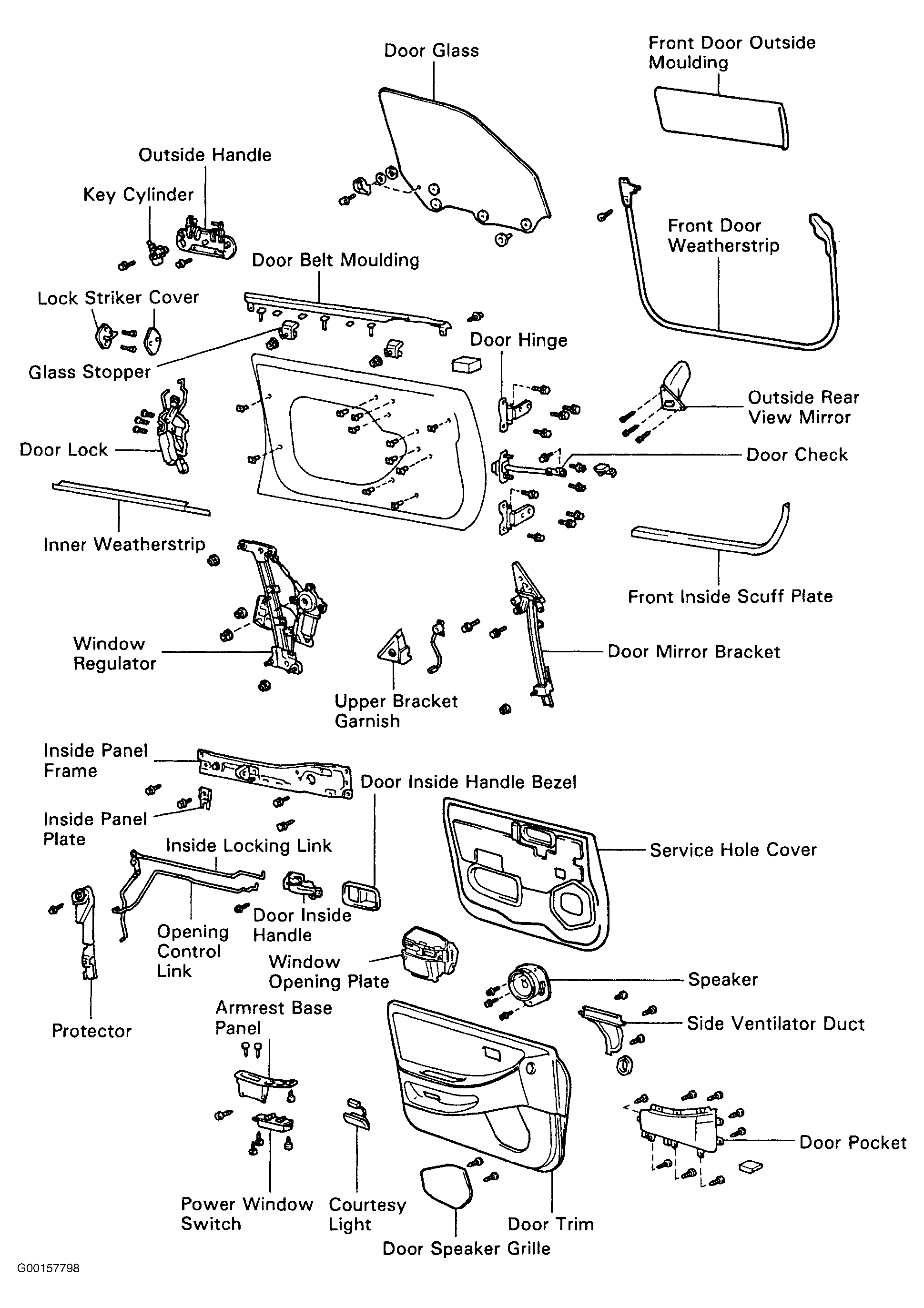

Fig 1: Locating Front Door Components
G00157798Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

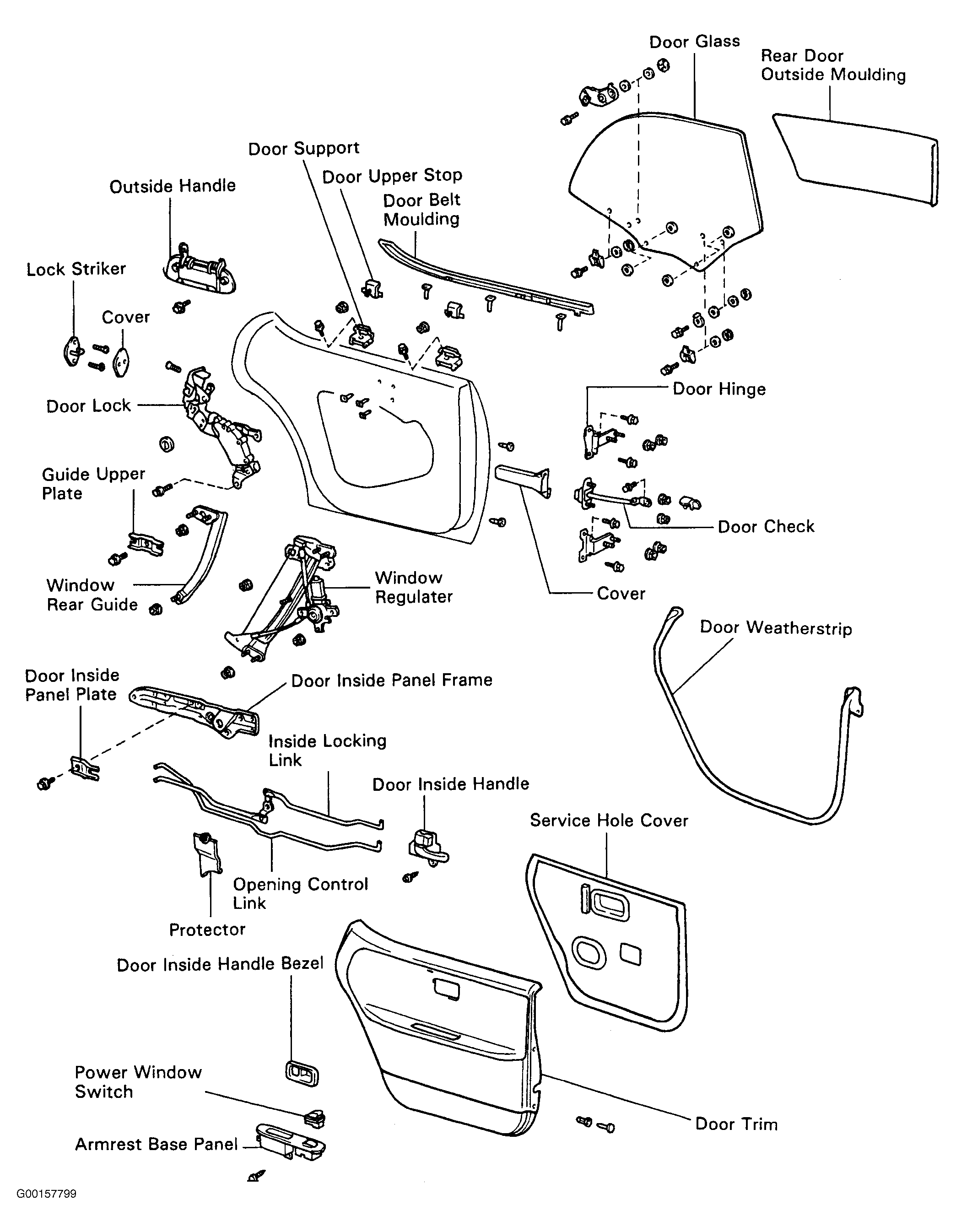

Fig 2: Locating Rear Door Components
G00157799Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
