Power Window Motor: Circuit

NOTE: Ensure power window lock switch on power window master switch is in unlock position.

Disconnect the connector from the motor.
Connect the connector to the master switch and power window switch.
Inspect the connector on the wire harness side. See Fig 1, Fig 2 or Fig 3 . If the circuit is not as specified, inspect the circuits connected to other parts. See WIRING DIAGRAMS .

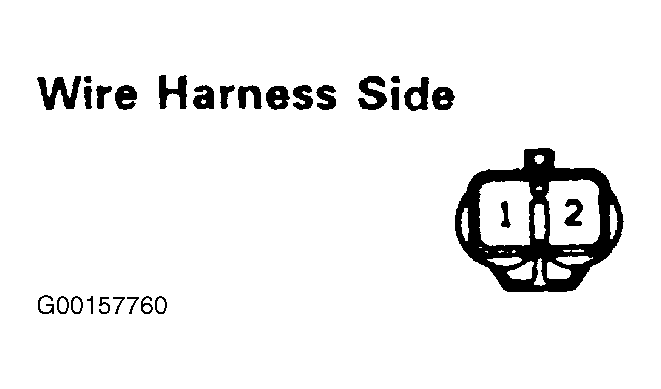

Fig 1: Testing Wire Harness Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

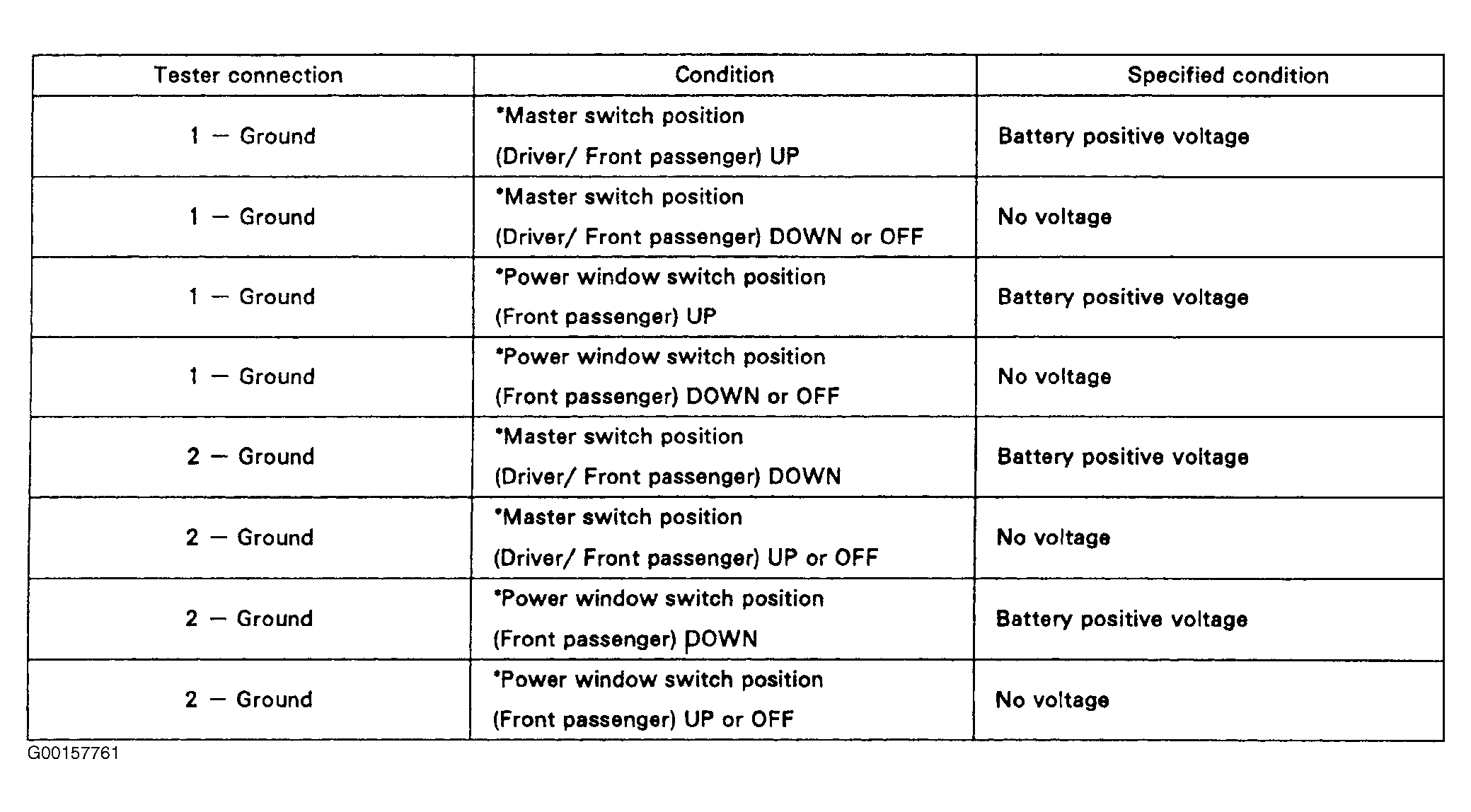

Fig 2: Testing Front Door Motor Circuit

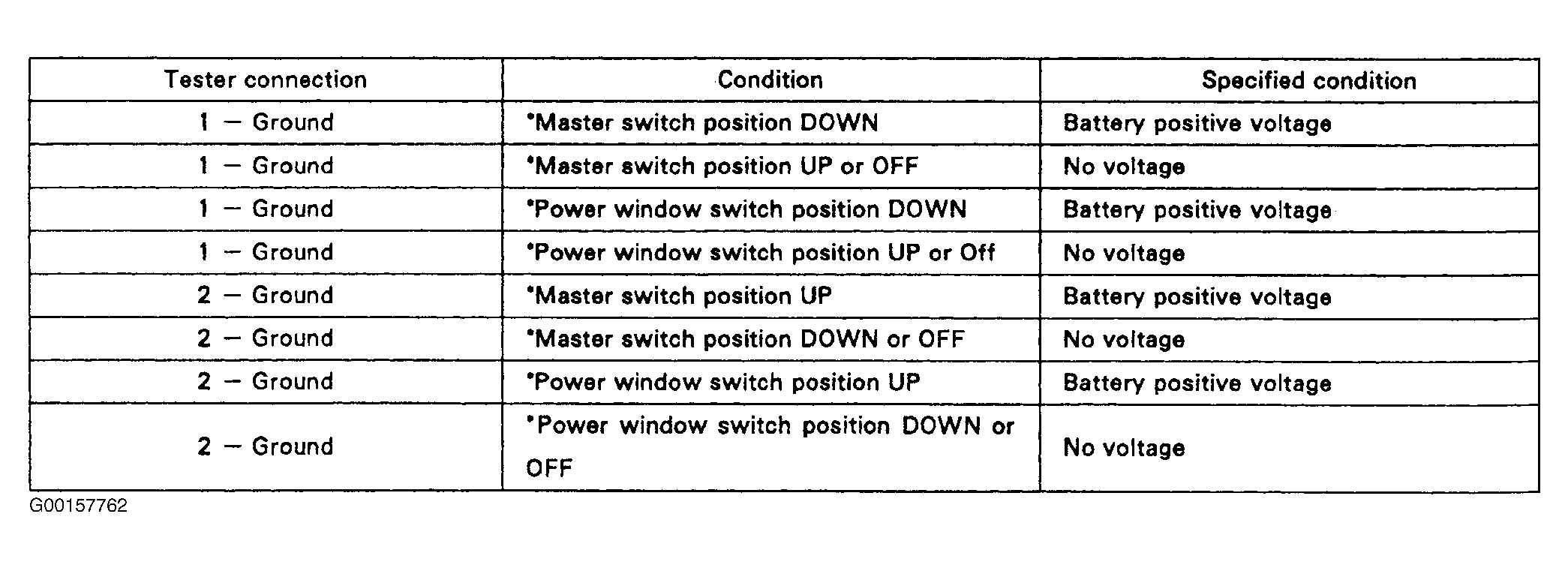

Fig 3: Testing Rear Door Motor Circuit
