Wiring Diagrams

NOTE: For additional wiring diagrams, see WIRING DIAGRAMS article.

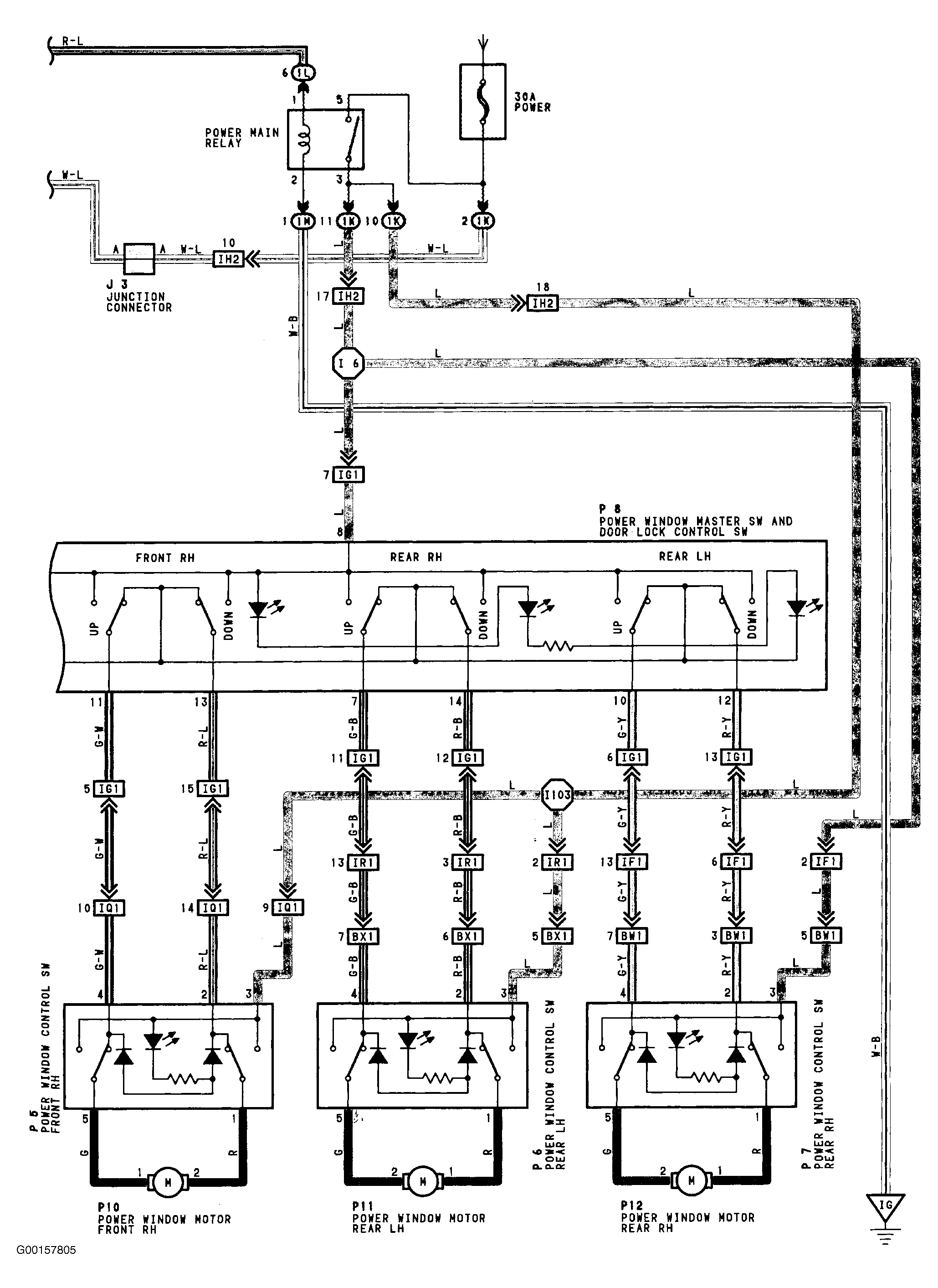

Fig 1: Power Window Wiring Diagram (1 Of 2)
G00157805Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

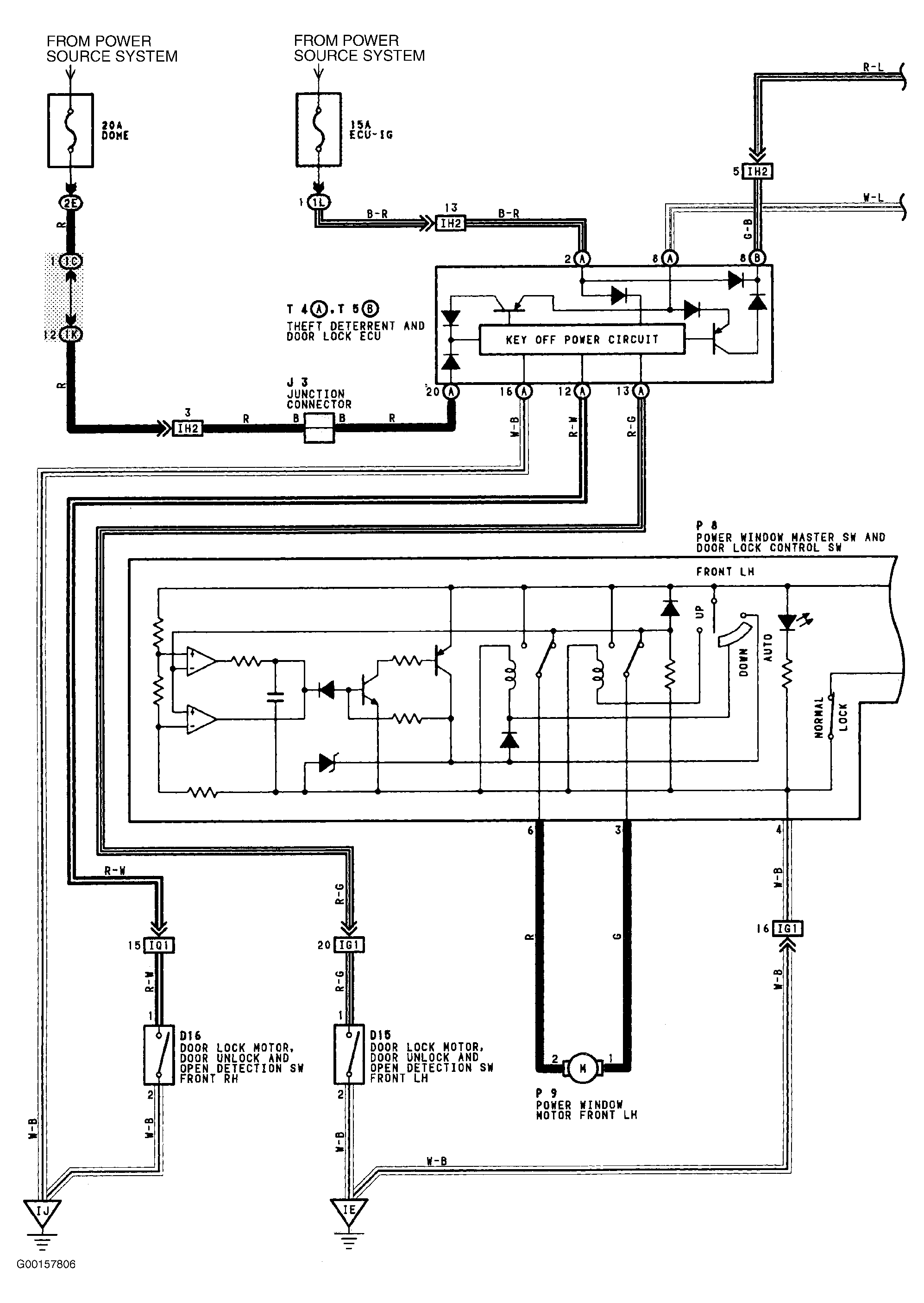

Fig 2: Power Window Wiring Diagram (2 Of 2)
G00157806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
