Wiring Diagrams

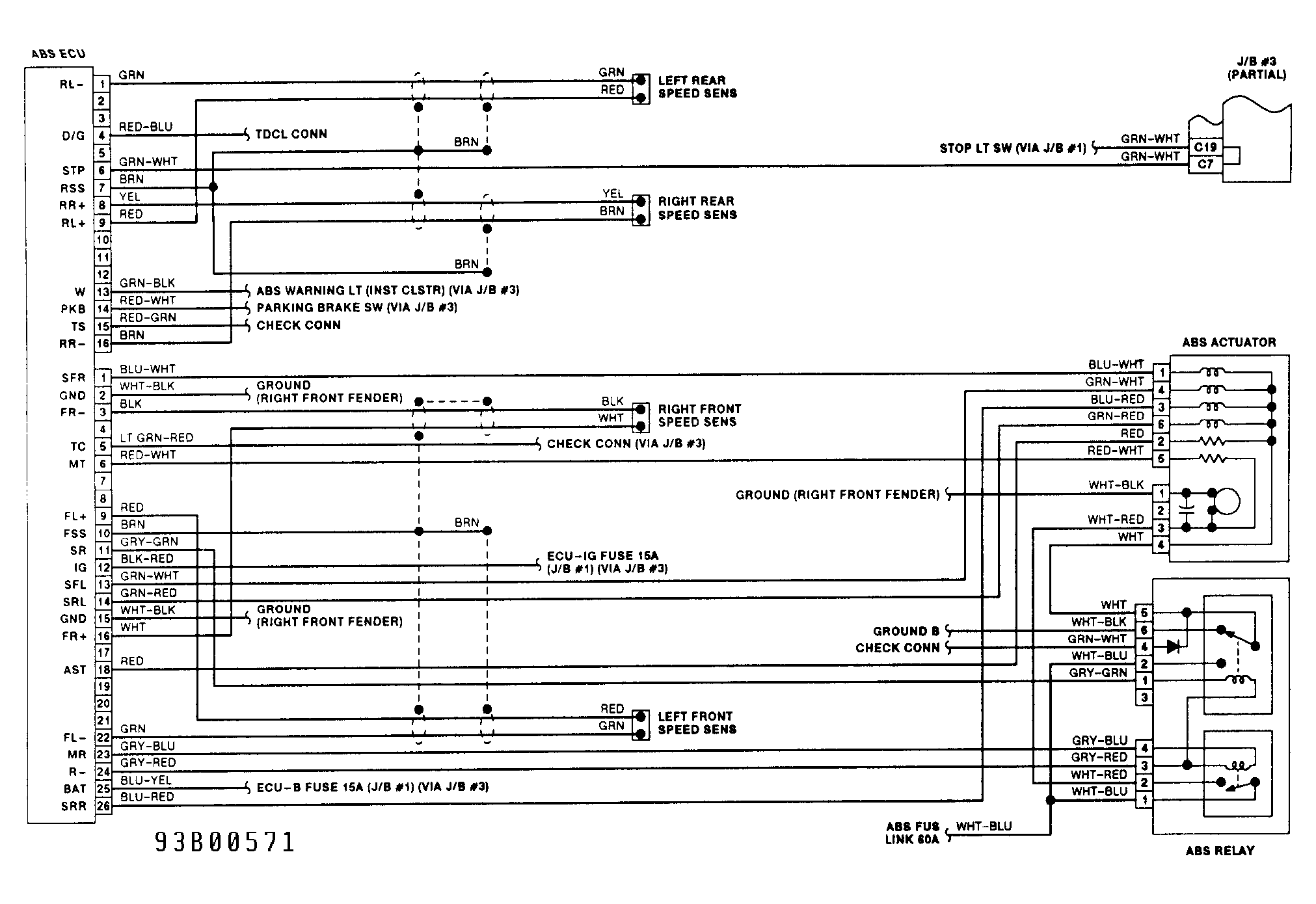

Fig 1: Anti-Lock Brake System (ABS) Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
