Electrical Component Locator: Miscellaneous

MISCELLANEOUS LOCATION

Component Location

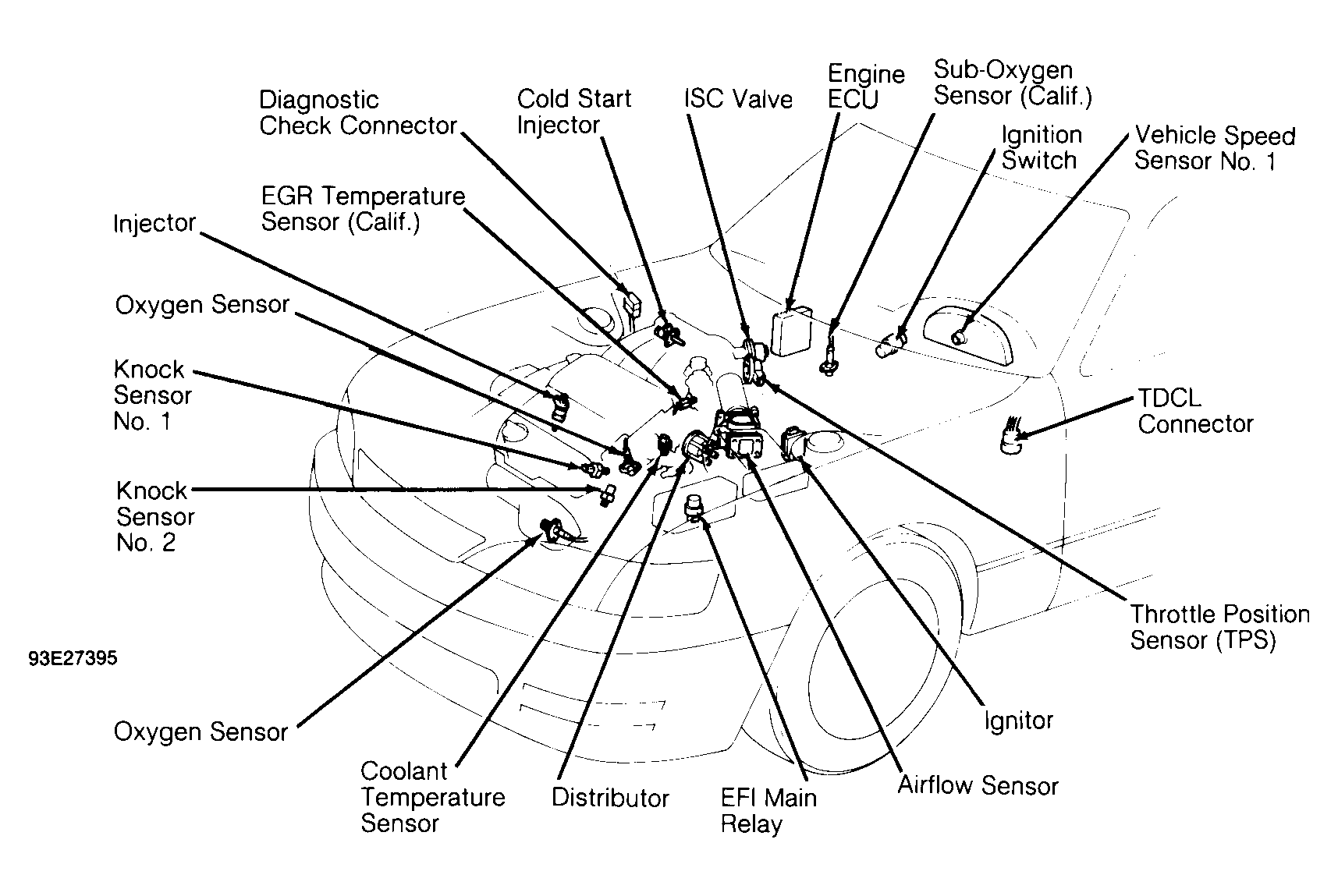

Blower Motor Low Resistor Behind right side of dash, on evaporator case. See Figure.
Diagnostic Check Connector On bracket, behind right strut tower. See Figure.
Power Transistor Mounted on evaporator case. See Figure.
Radio Power Amplifier Under front passenger's seat.
Total Diagnostic Communication Link (TDCL) Connector Under left side of dash. See Figure.
