Code 14 & 15 - Ignition Signal (SC400)

NOTE: Code 14 refers to ignitor No. 1. Code 15 refers to ignitor No. 2.

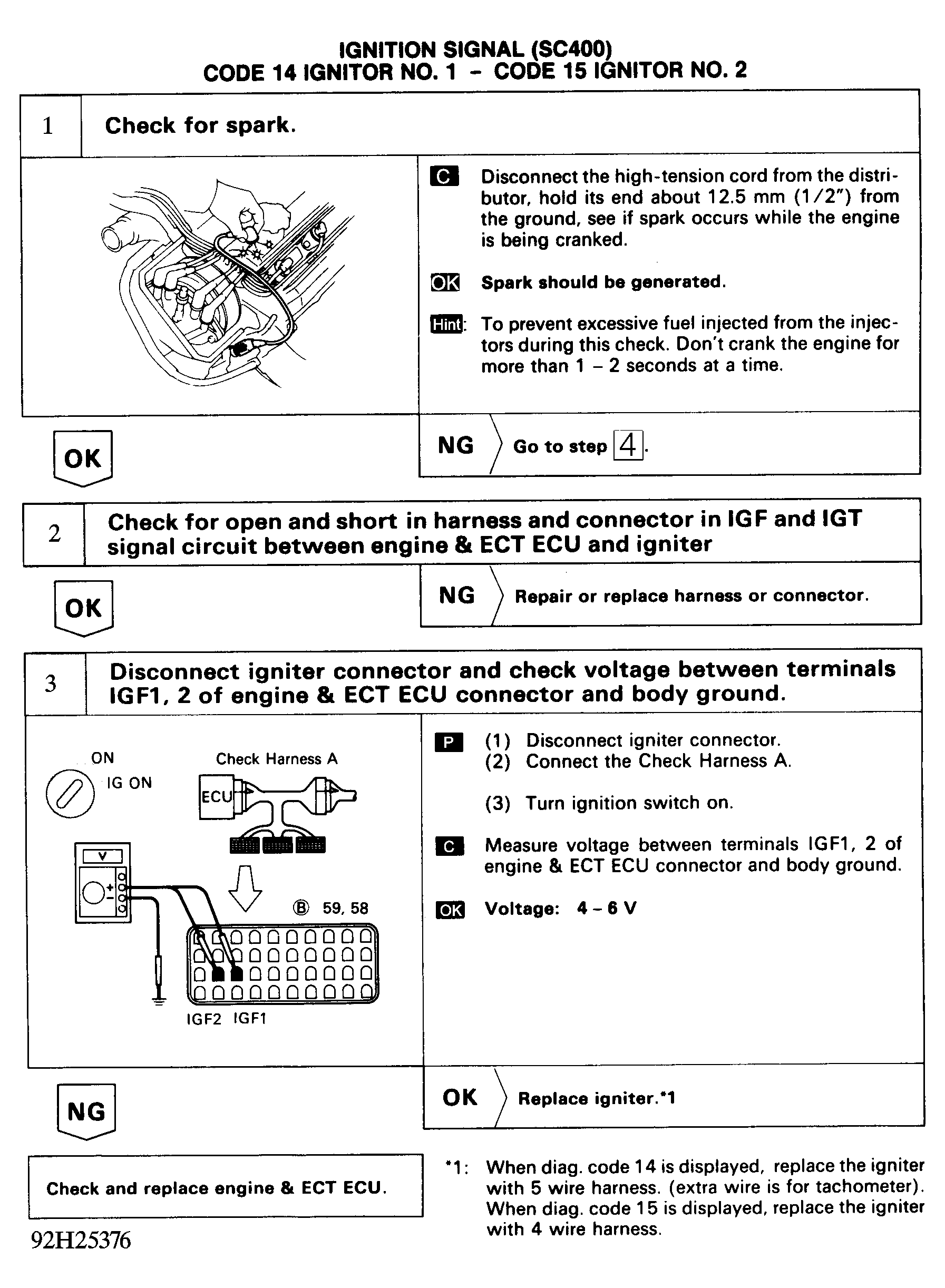

Fig 1: Code 14 & 15 Flow Chart (1 of 5) - Ignition Signal (SC400)
G92H25376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

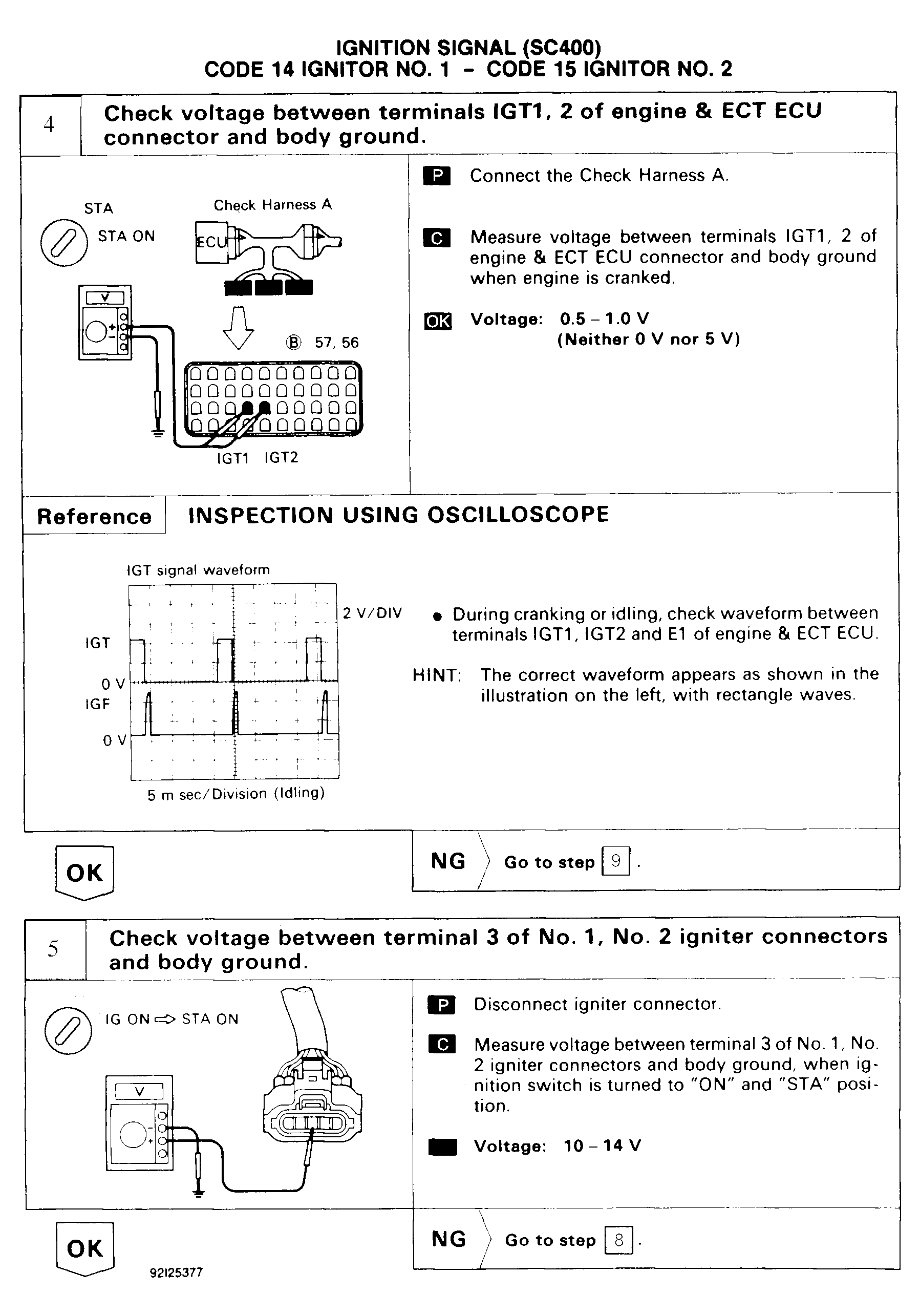

Fig 2: Code 14 & 15 Flow Chart (2 of 5) - Ignition Signal (SC400)
G92I25377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

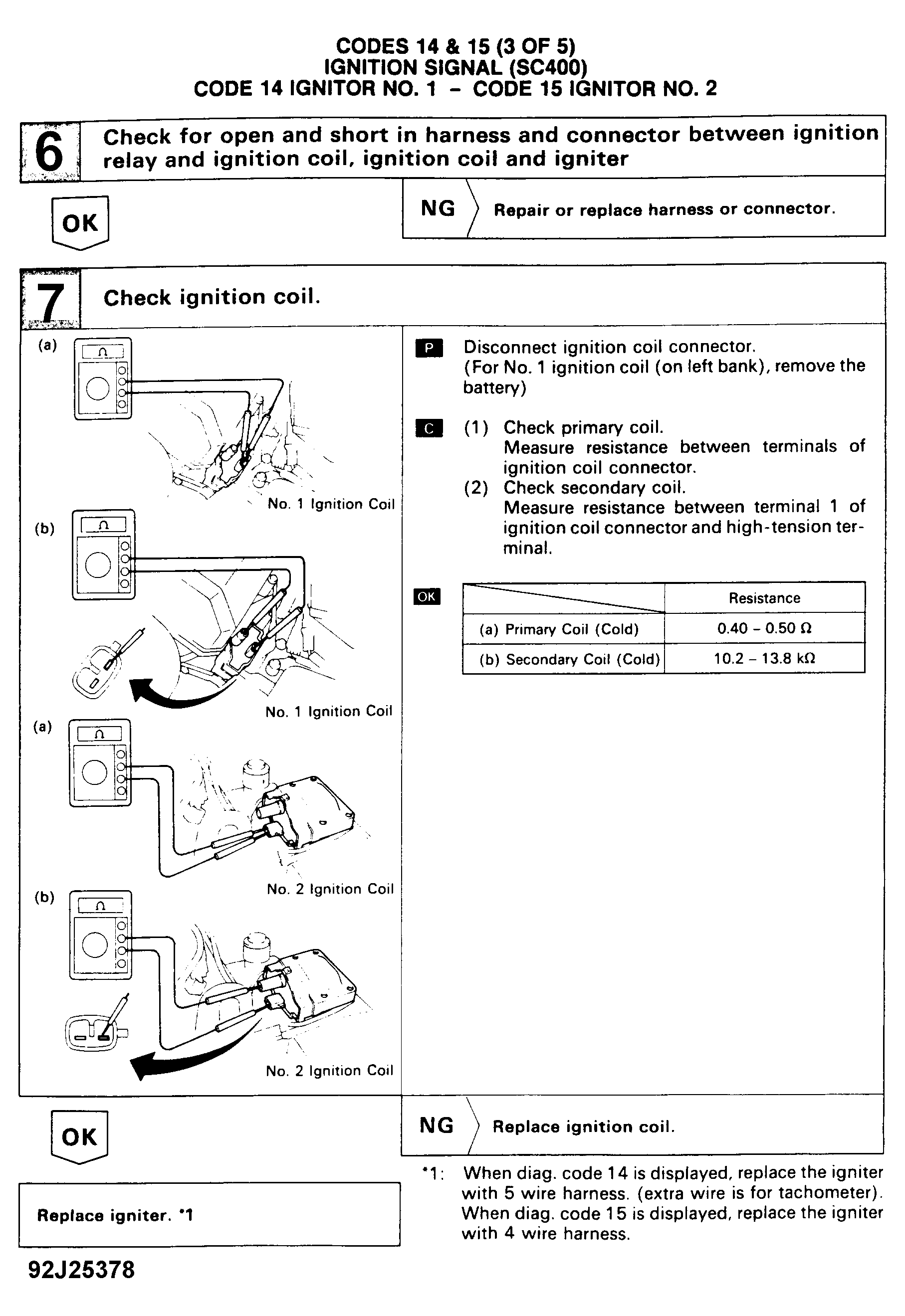

Fig 3: Code 14 & 15 Flow Chart (3 of 5) - Ignition Signal (SC400)
G92J25378Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

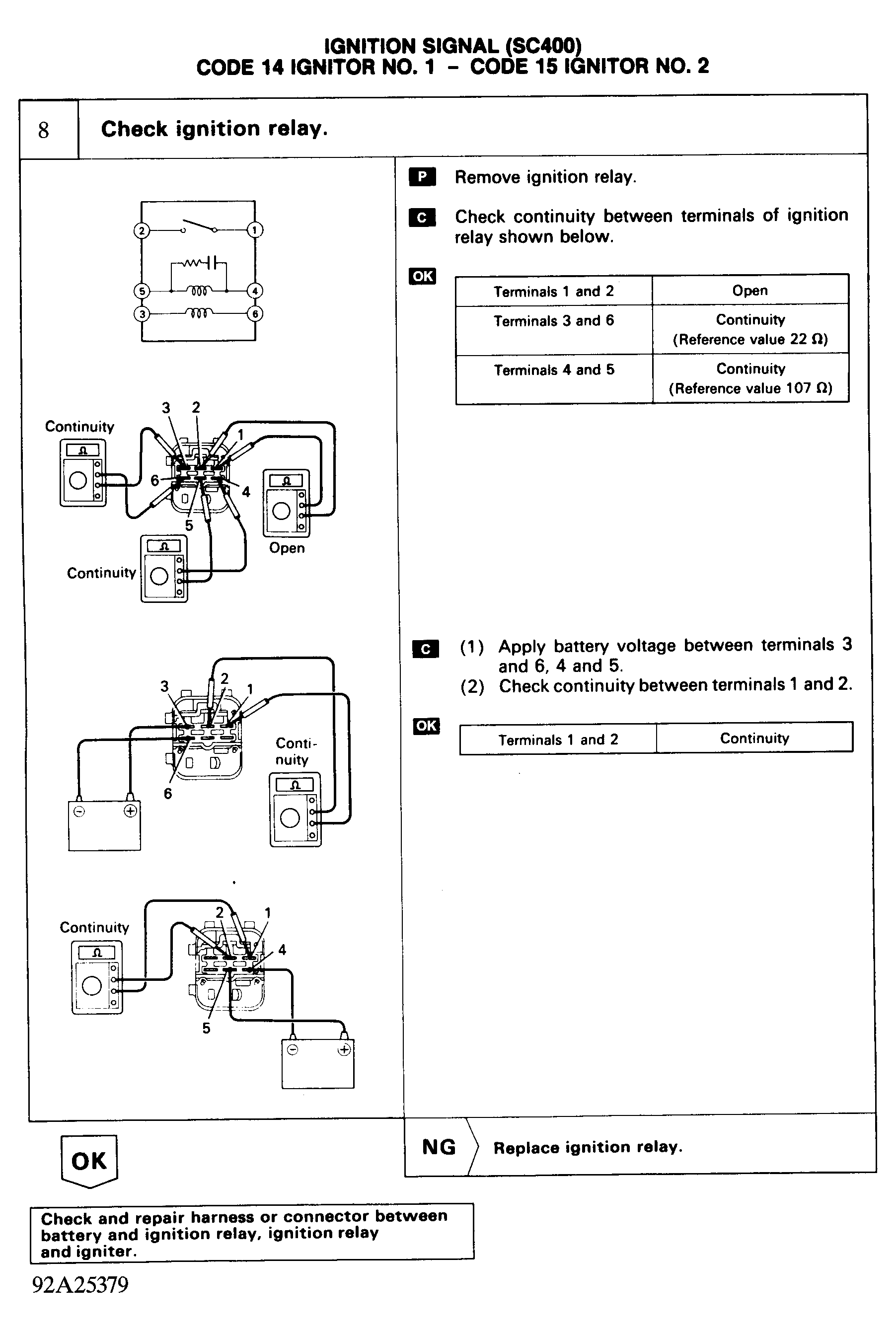

Fig 4: Code 14 & 15 Flow Chart (4 of 5) - Ignition Signal (SC400)
G92A25379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

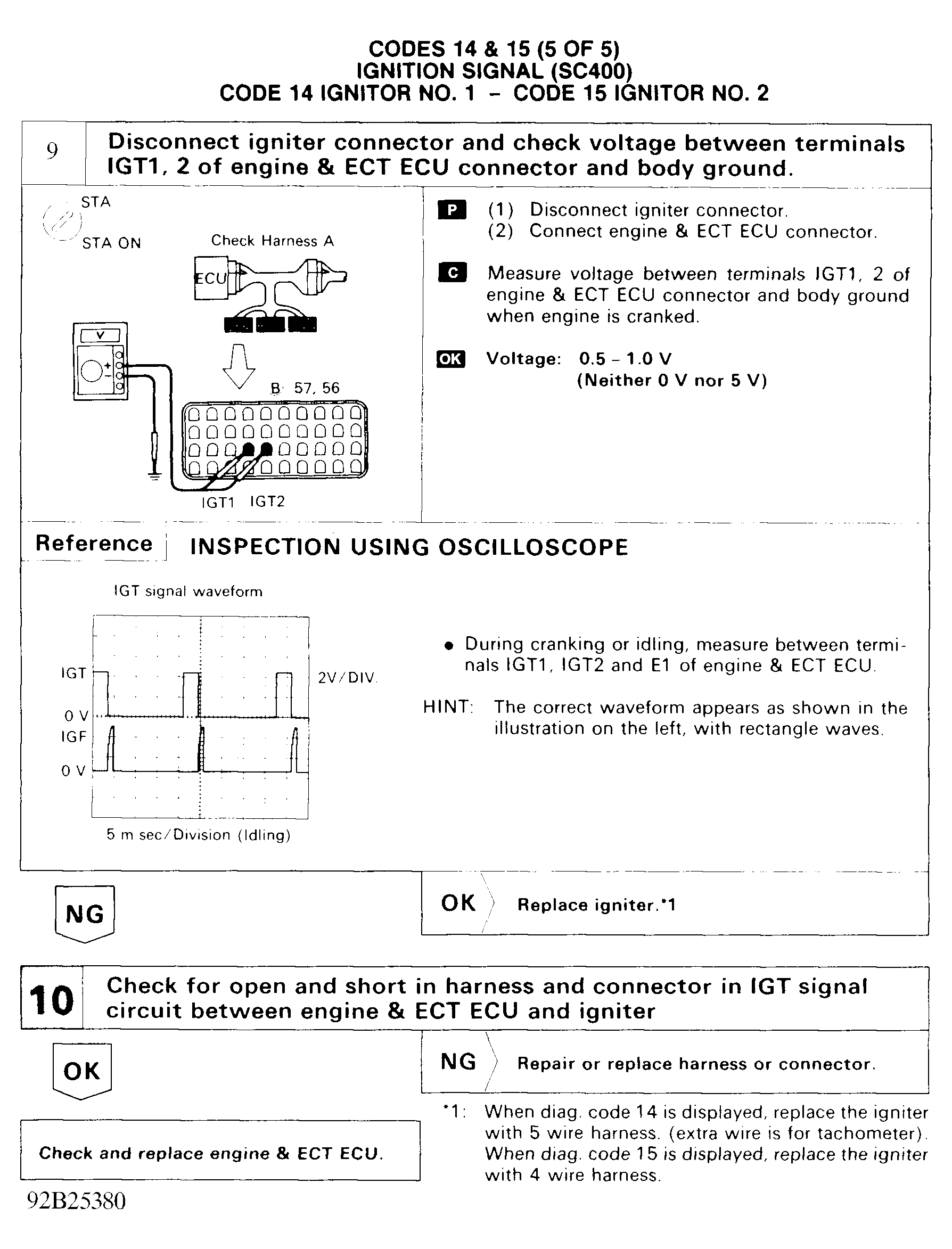

Fig 5: Code 14 & 15 Flow Chart (5 of 5) - Ignition Signal (SC400)
G92D25380Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
