Code 41 - Throttle Position Sensor (TPS)

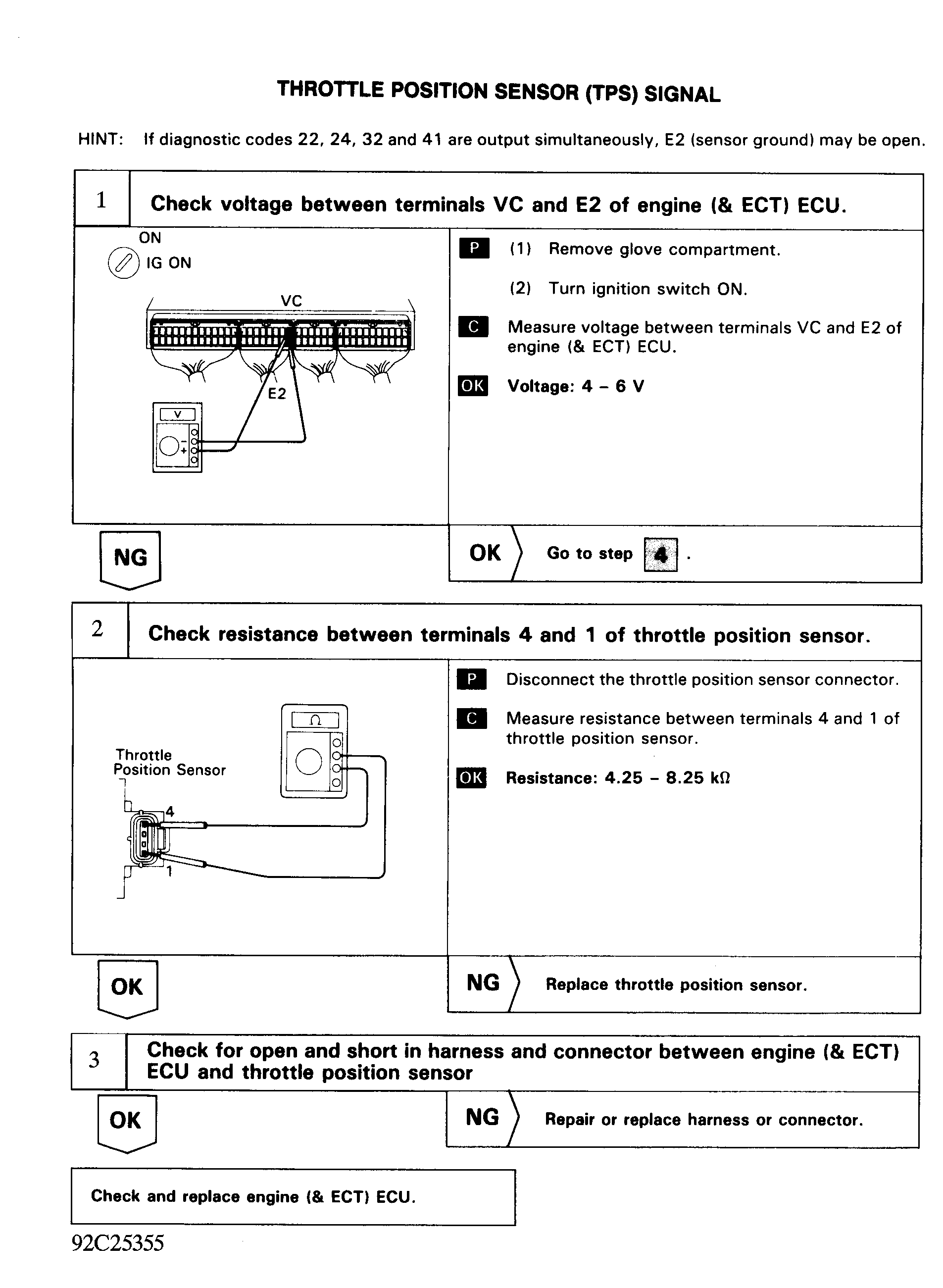

Fig 1: Code 41 Flow Chart (1 of 2) - Throttle Position Sensor (TPS)
G92C25355Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

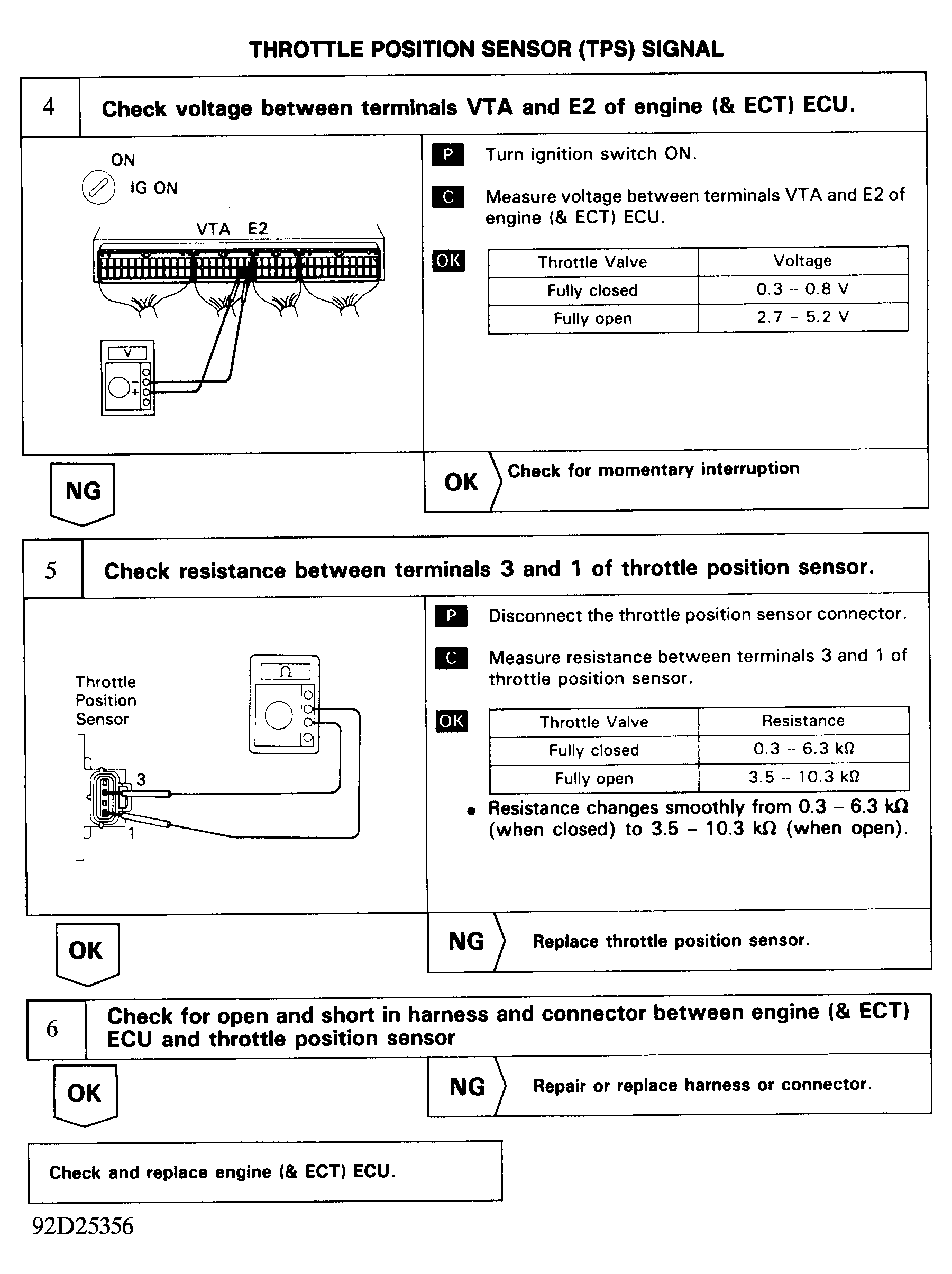

Fig 2: Code 41 Flow Chart (2 of 2) - Throttle Position Sensor (TPS)
G92D25356Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
