Code 42 - Vehicle Speed Sensor (VSS) Signal

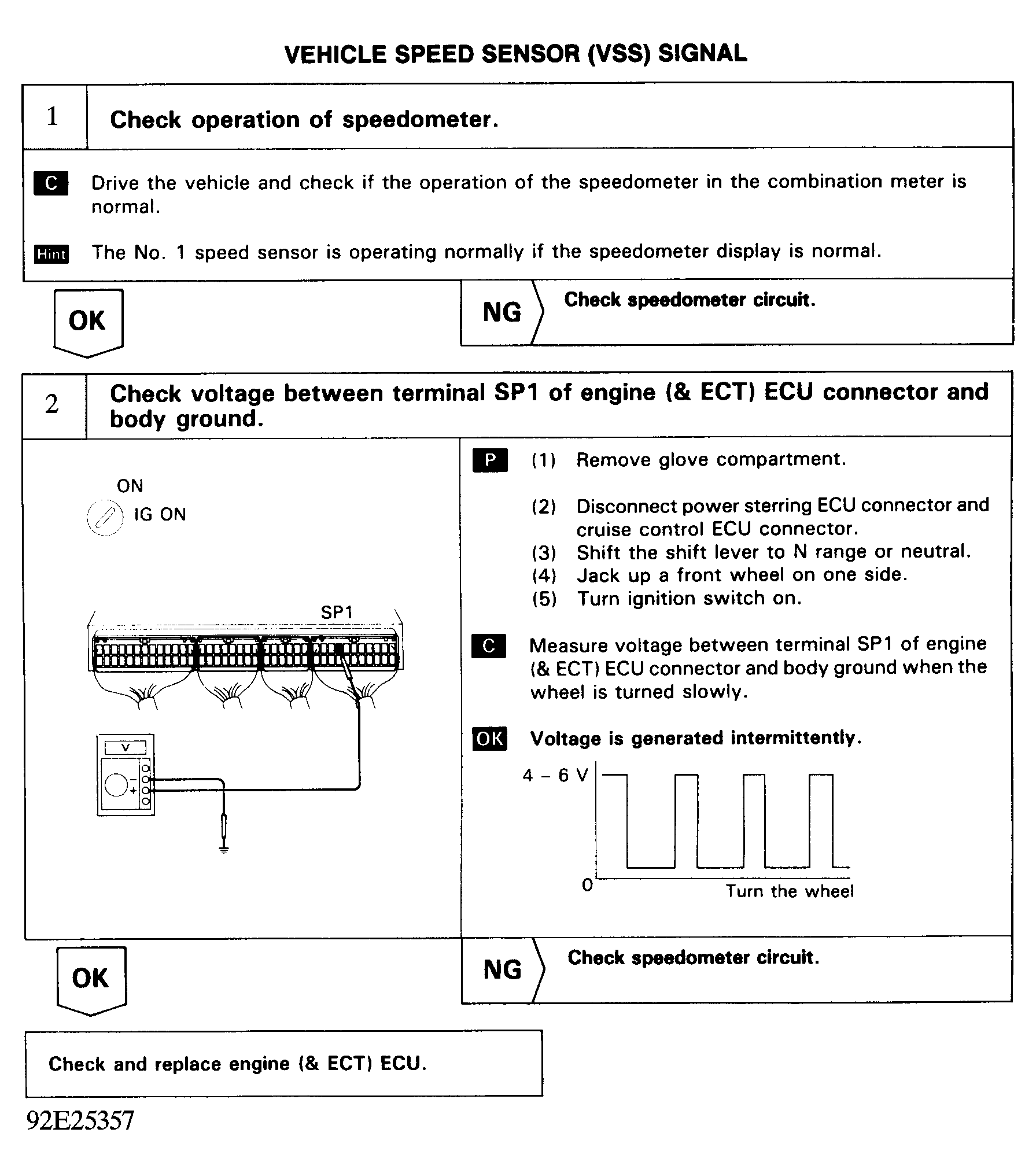

Fig 1: Code 42 Flow Chart - Vehicle Speed Sensor (VSS) Signal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
