Distributor: Service and Repair

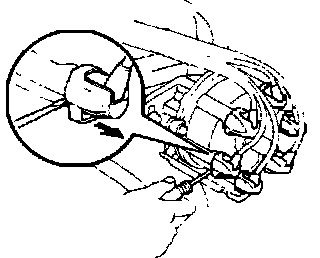

Ignition Wire Removal:

Removal
- Disconnect ignition wires from cap.
- Disconnect distributor electrical connector.

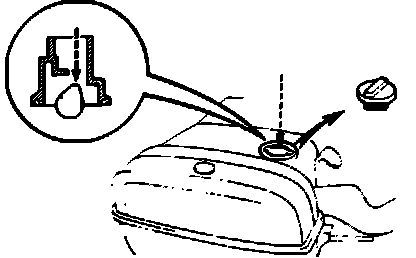

Setting No. 1 TDC:

- Remove oil fill cap.
- Looking through fill hole, rotate engine until cam lobe points upward.

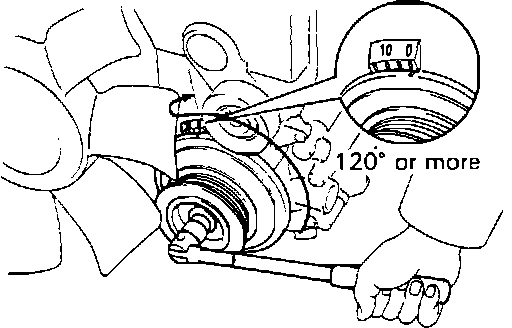

Setting No. 1 TDC:

- Turn crankshaft counterclockwise approximately 120°.
- Bring crankshaft back clockwise until the crank pulley timing mark aligns with the TDC mark on the cover.

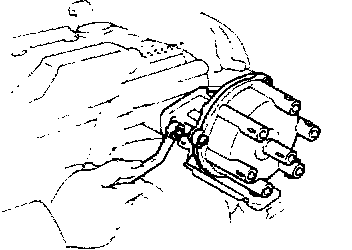

Distributor Hold-down Nut:

- Remove hold-down nut and remove distributor from head.

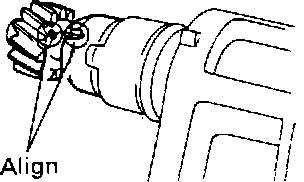

Distributor Alignment:

Installation
- Install new o-ring on distributor shaft.
- Align groove on distributor housing with mark on drive gear.

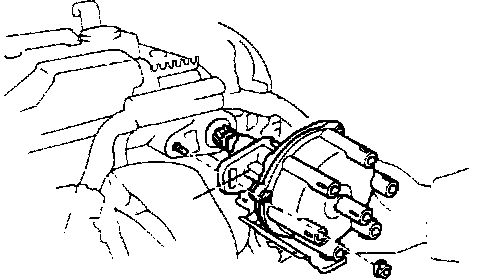

Distributor Removal:

- Install distributor with stud centered in the adjustment flange.
- Lightly tighten hold-down nut.
- Connect ignition wires and distributor electrical connector.
- Start engine and warm to normal operating temperature.
- Set ignition base timing. Refer to ADJUSTMENT PROCEDURES.
