Electrical Component Locator: Miscellaneous
MISCELLANEOUS LOCATION
| Component | Location |
|---|---|
| Audio Power Amplifier | On right side of trunk or under center of rear deck tray. |

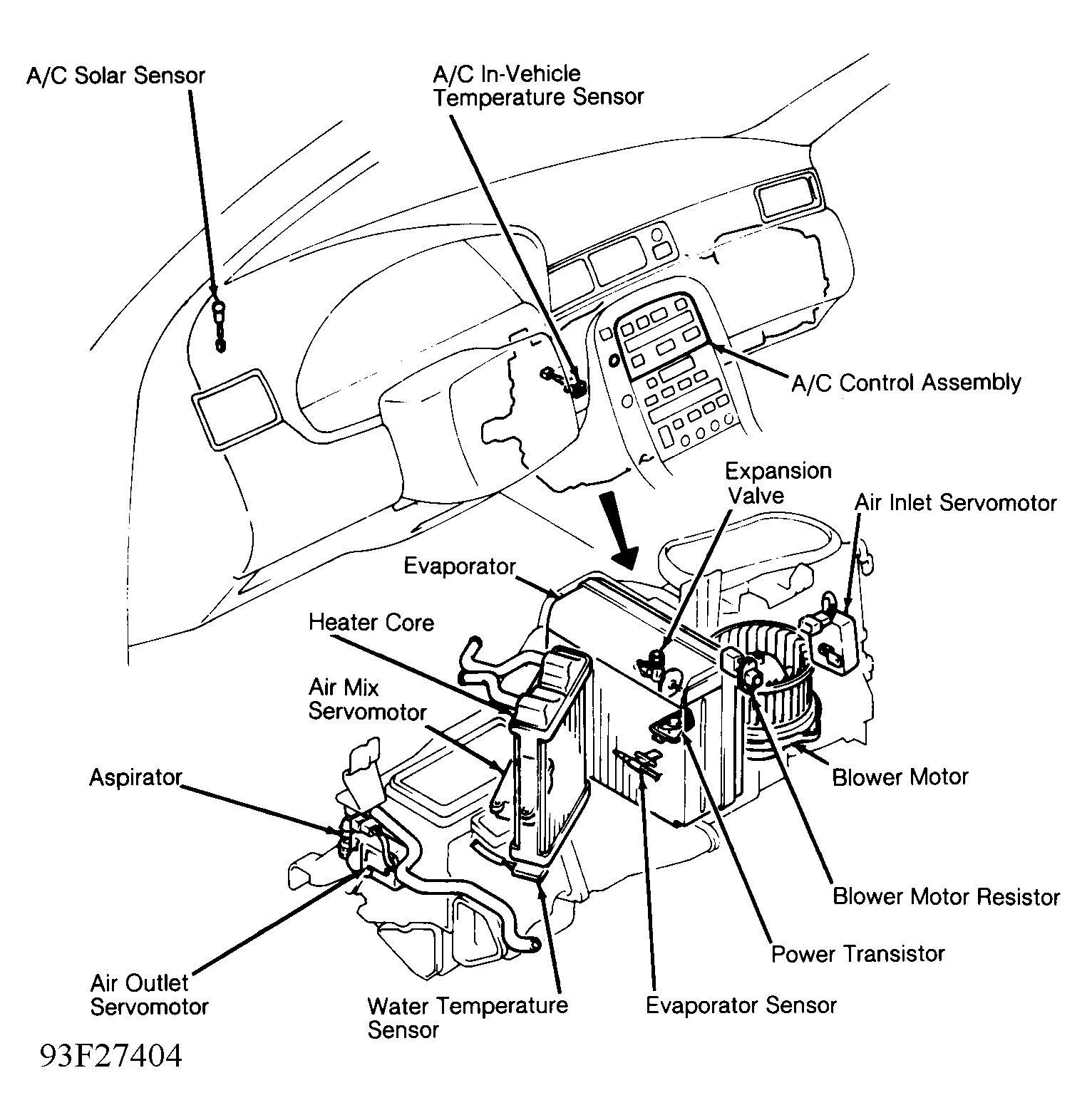

| Blower Motor Resistor | Behind right side of dash, on evaporator case. See Figure. |
| Diagnostic Check Connector | On bracket, behind right strut tower. |
| Power Transistor (A/C) | Mounted on evaporator case. See Figure. |

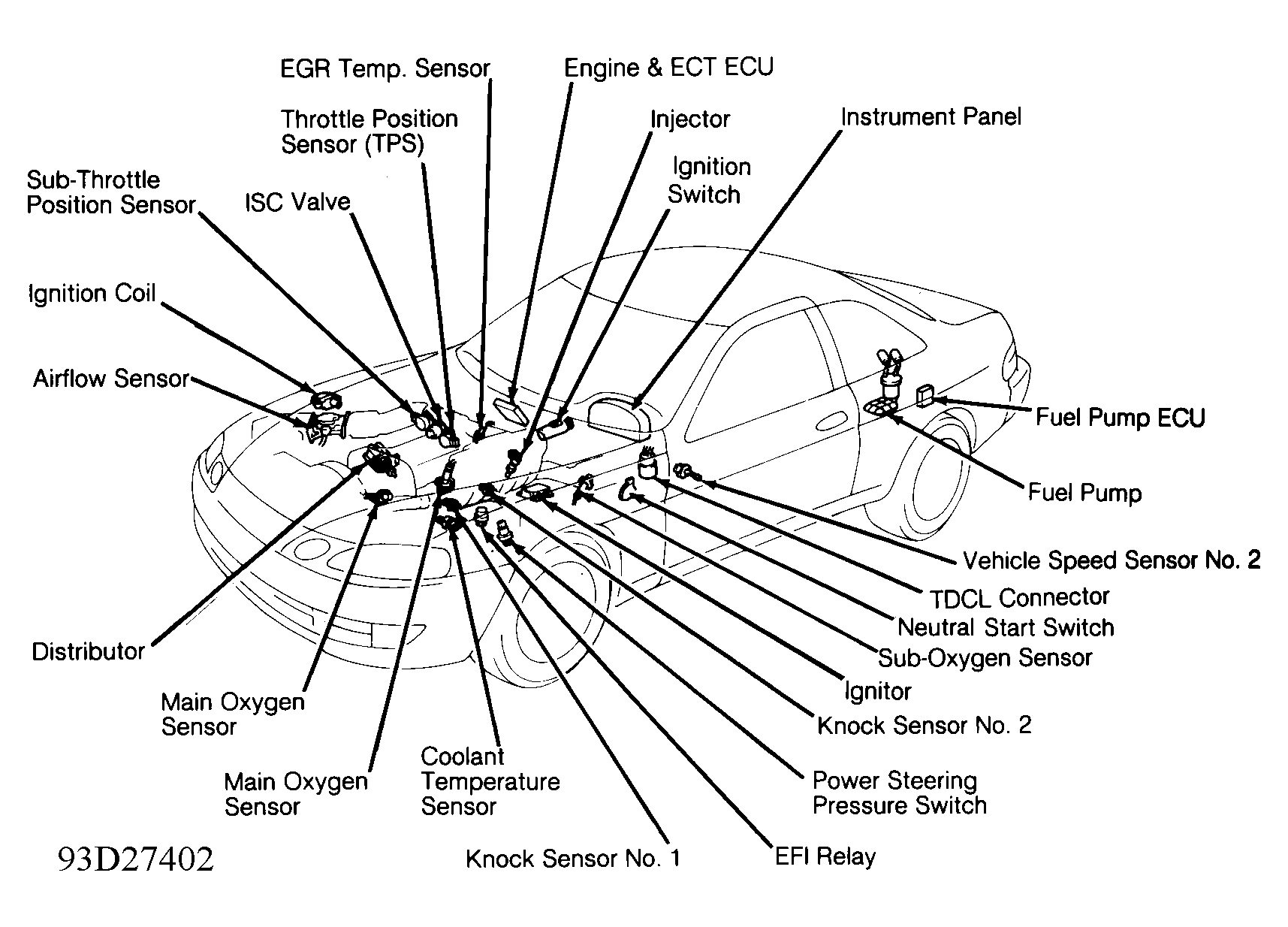

| Total Diagnostic Communication Link (TDCL) Connector | Under left side of dash. See Figure. |
