Engine Compartment

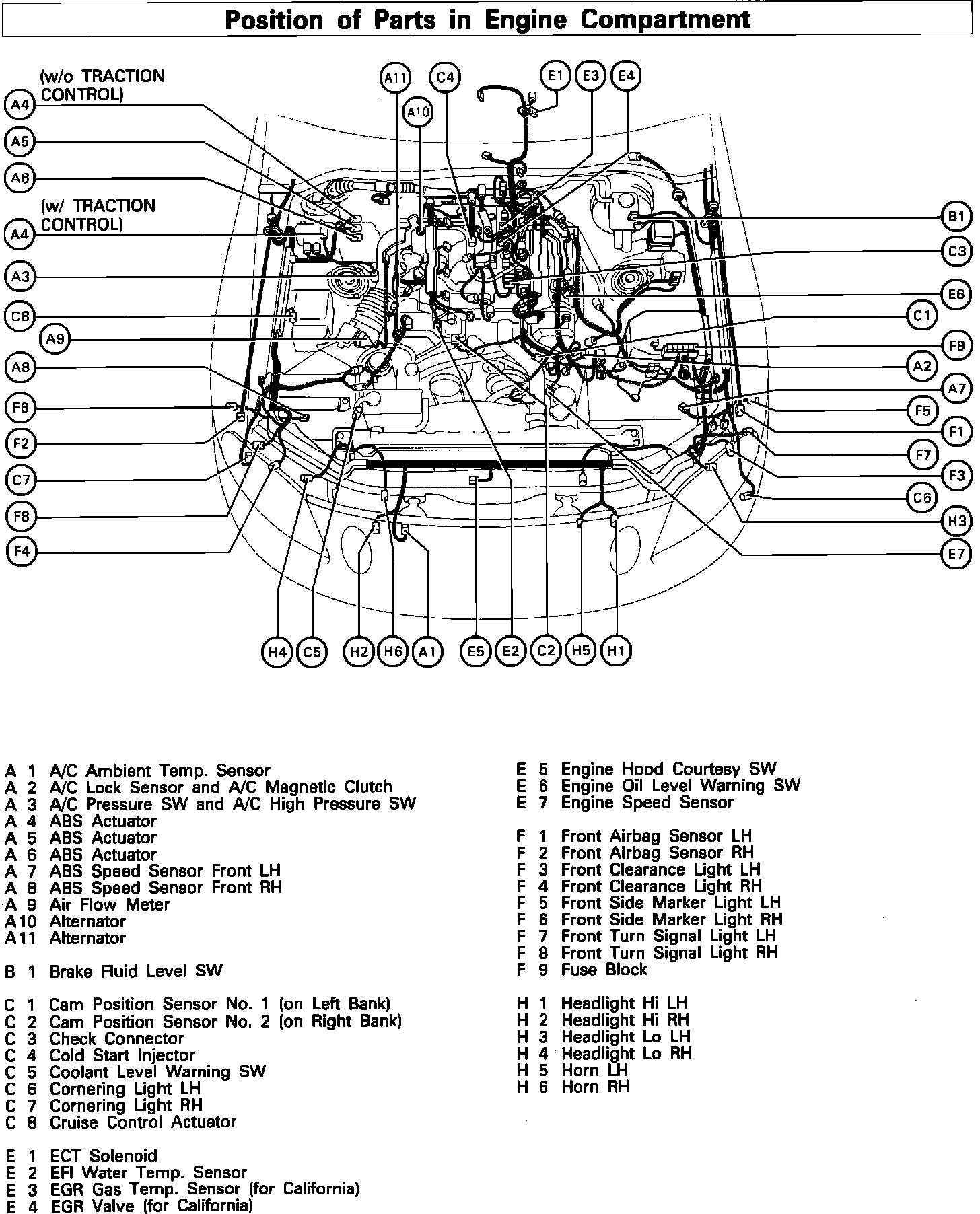

Position Of Parts In Engine Compartment:

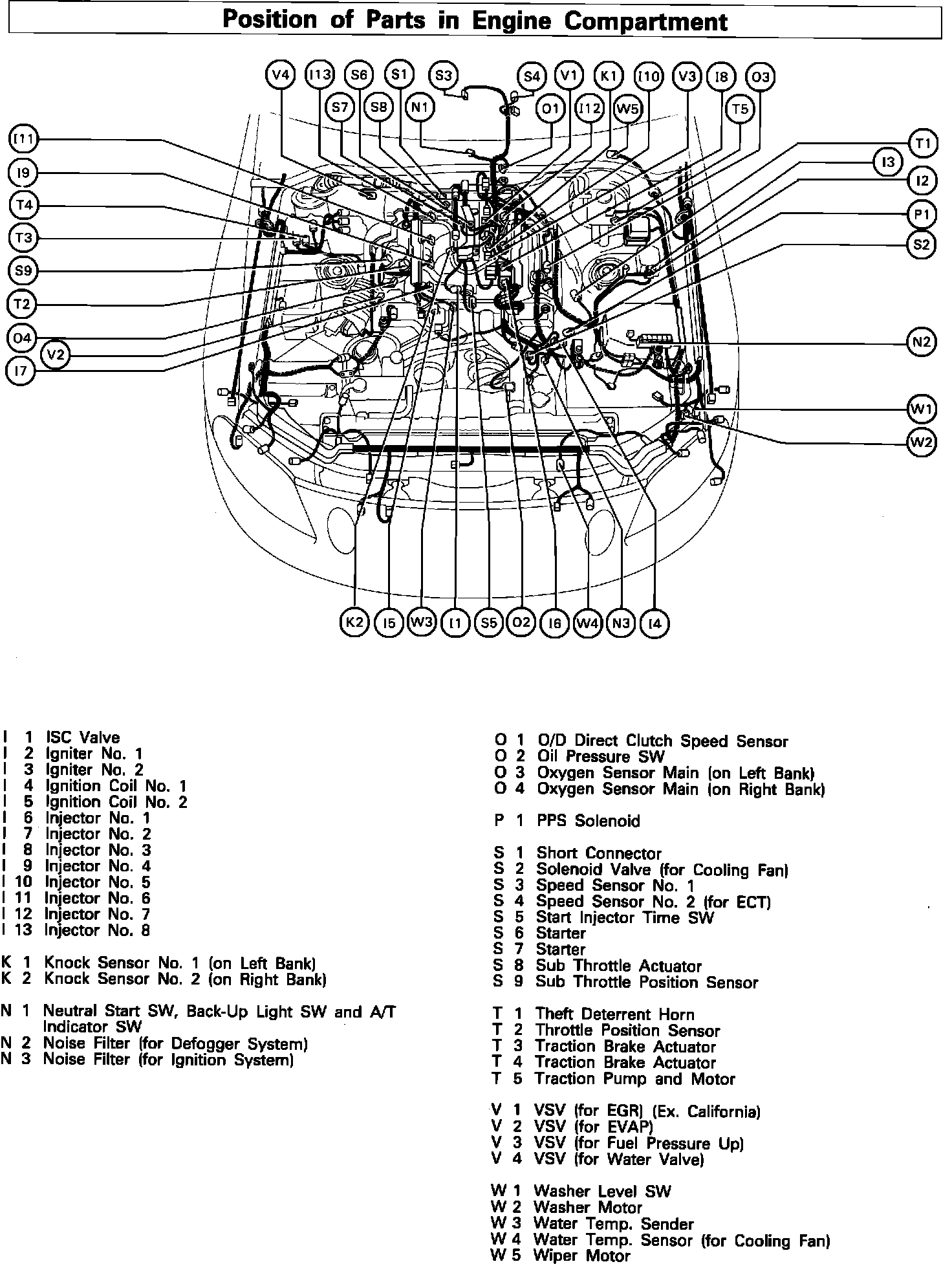

Position Of Parts In Engine Compartment:
