Installation

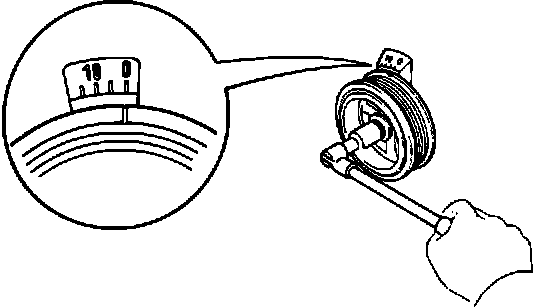

Timing Marks:

Preparation
- Turn engine to cylinder No. 1 TDC/compression.
- Verify camshaft pulleys align with mark on top of housing.

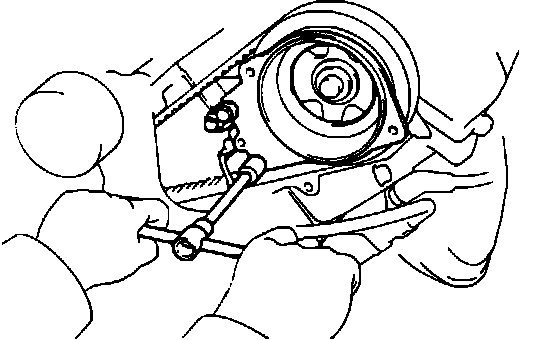

Right Side Cam Sensor:

- Install cam position sensor in distributor housing.

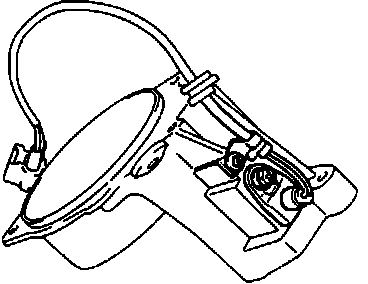

Left Side Distributor:

Distributor Installation
- Install distributor housing.

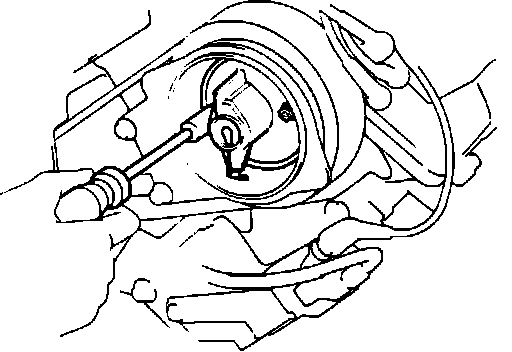

Left Side Rotor:

- Install rotor with tip of rotor point towards mark on distributor housing.

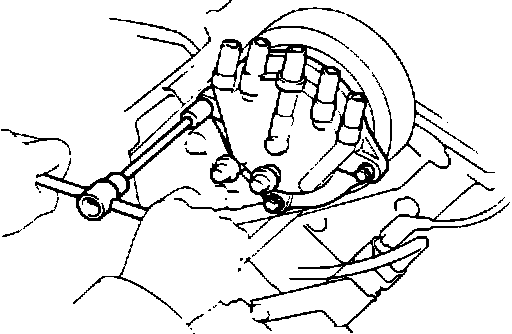

Left Side Distributor Cap:

- Install distributor cap.
- Reconnect ignition wires.
- Reverse remainder of removal procedure to complete.
